Remove/Install Driver Kneebag - AR91.60-P-0200SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003SR

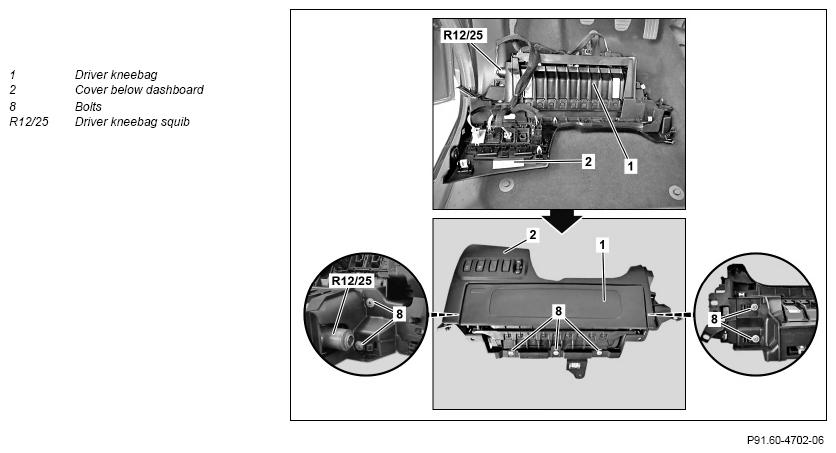

2	Remove left cover under instrument panel (2) with electrical lines connected and set down in footwell	Do not put electrical connector of driver kneebag squib (R12/25) under tension. Otherwise, damage may occur to the electrical connector of the driver kneebag squib (R12/25). Ensure that the driver kneebag (1) does not fall.	AR68.10-P-1500SR
3	Disconnect electrical connector at driver kneebag squib (R12/25)
4	Remove screws/bolts (8) and remove driver kneebag (1) from left cover under instrument panel (2)	Bolt/nut, bracket to kneebag	*BA91.60-P-1011-01C
5	Properly dispose of driver kneebag (1)	When replacing driver kneebag (1).
6	Install in the reverse order
	Check
7	Check Supplemental Restraint System (SRS) with diagnostic system	When replacing driver kneebag (1).	AD00.00-P-2000-06SR

AIRBAG

Number	Designation		Model 453.0	Model 453.3/4
BA91.60-P-1011-01C	Bolt/nut, bracket to kneebag	Nm	8	8
