Thermo Sensor

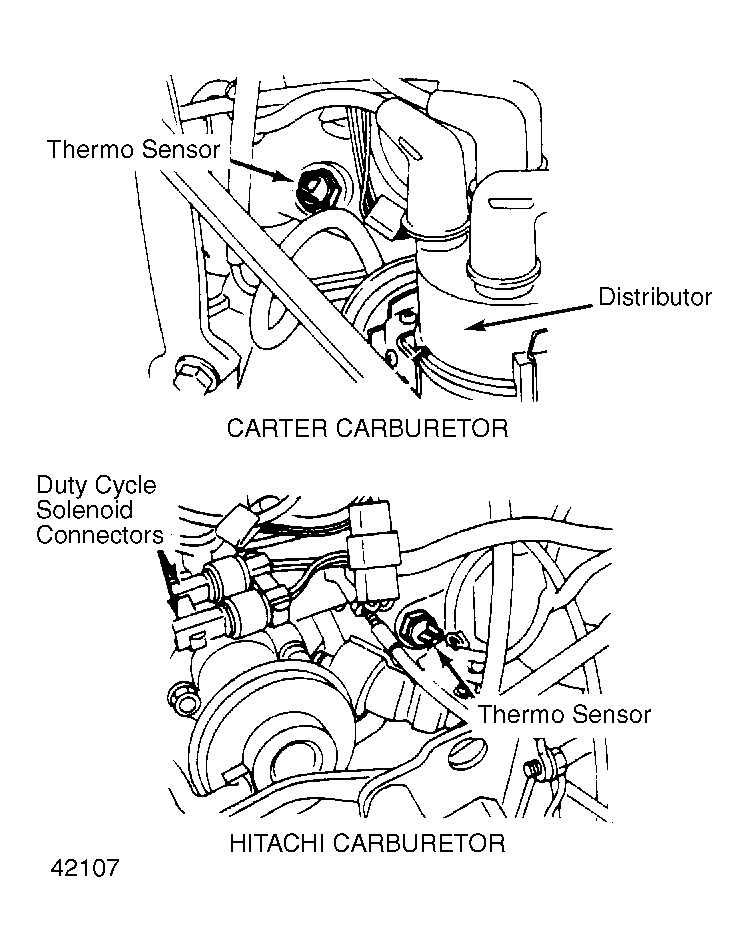

The thermo sensor is installed in intake manifold on all models. See Fig 1 . This sensor is a thermistor which converts temperature of engine coolant to electrical signal for use by ECM. The ECM uses coolant temperature information for controlling air/fuel mixture, EGR and air injection systems.
