Service Data

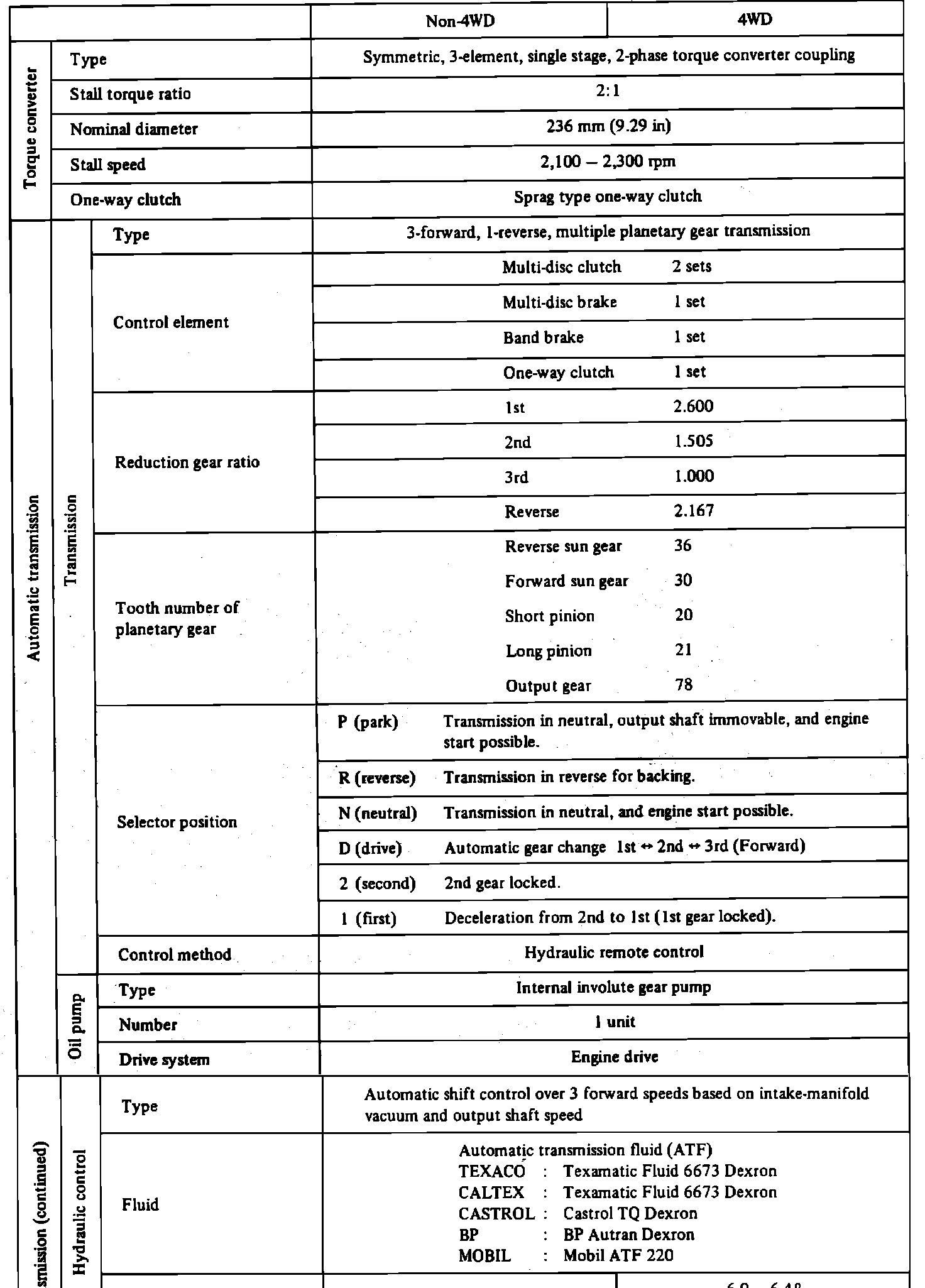

AUTOMATIC TRANSMISSION SPECIFICATIONS

��*Automatic Transmission Specifications:








SERVICE DATA

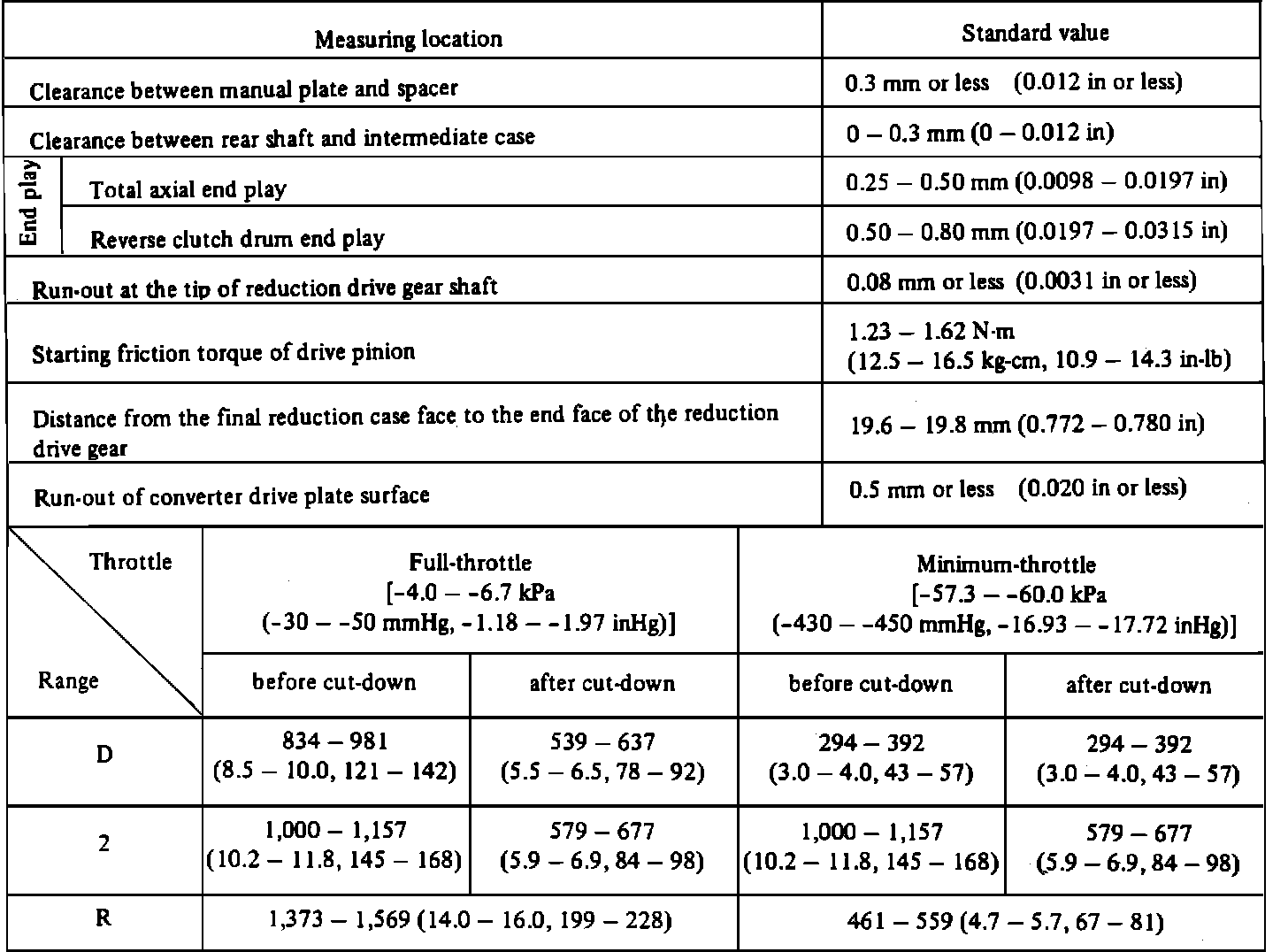

Automatic Transmission And Differential Service Data (Part 1 Of 3):




Part 1 Of 3

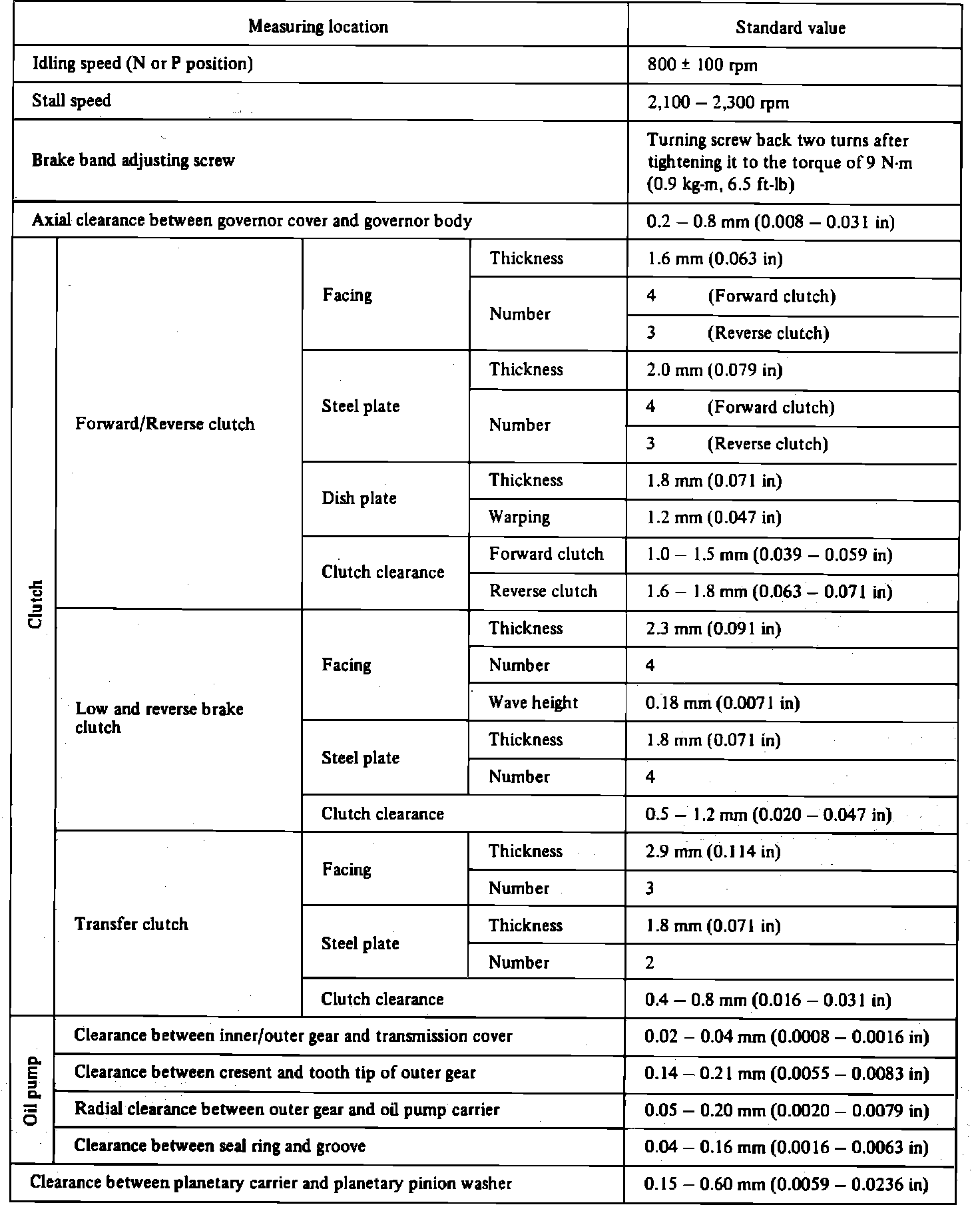

Automatic Transmission And Differential Service Data (Part 2 Of 3):




Part 2 Of 3

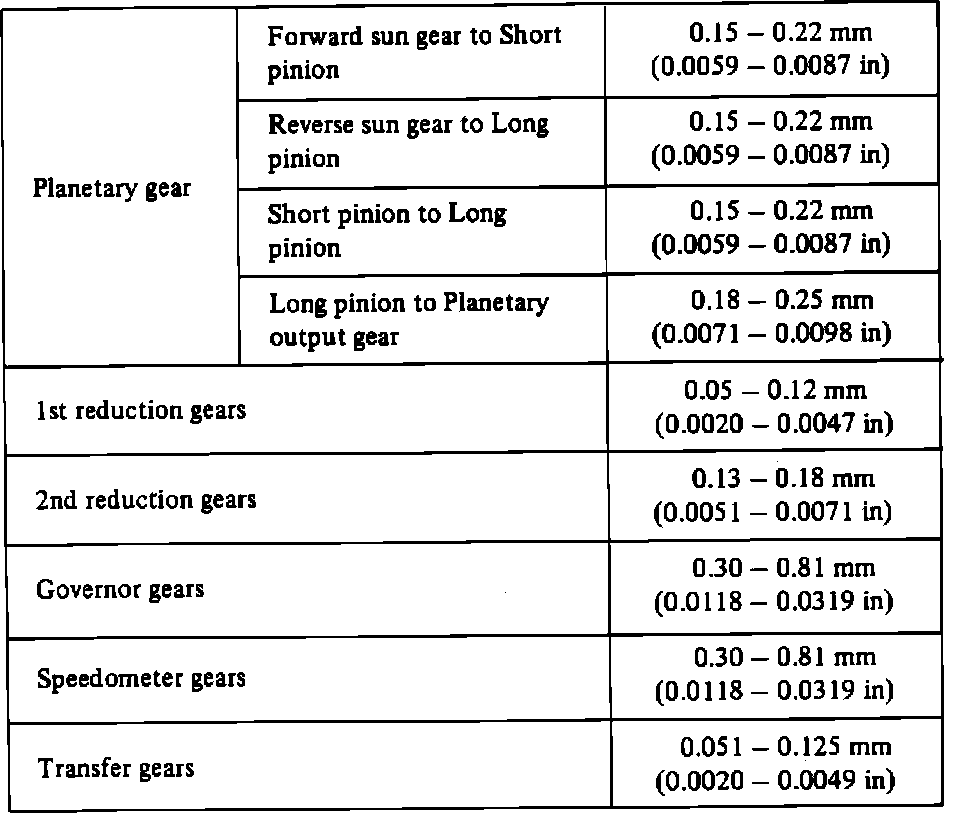

Automatic Transmission And Differential Service Data (Part 3 Of 3):




Part 3 Of 3
