General Engine Specifications

ENGINE SYSTEM SPECIFICATIONS

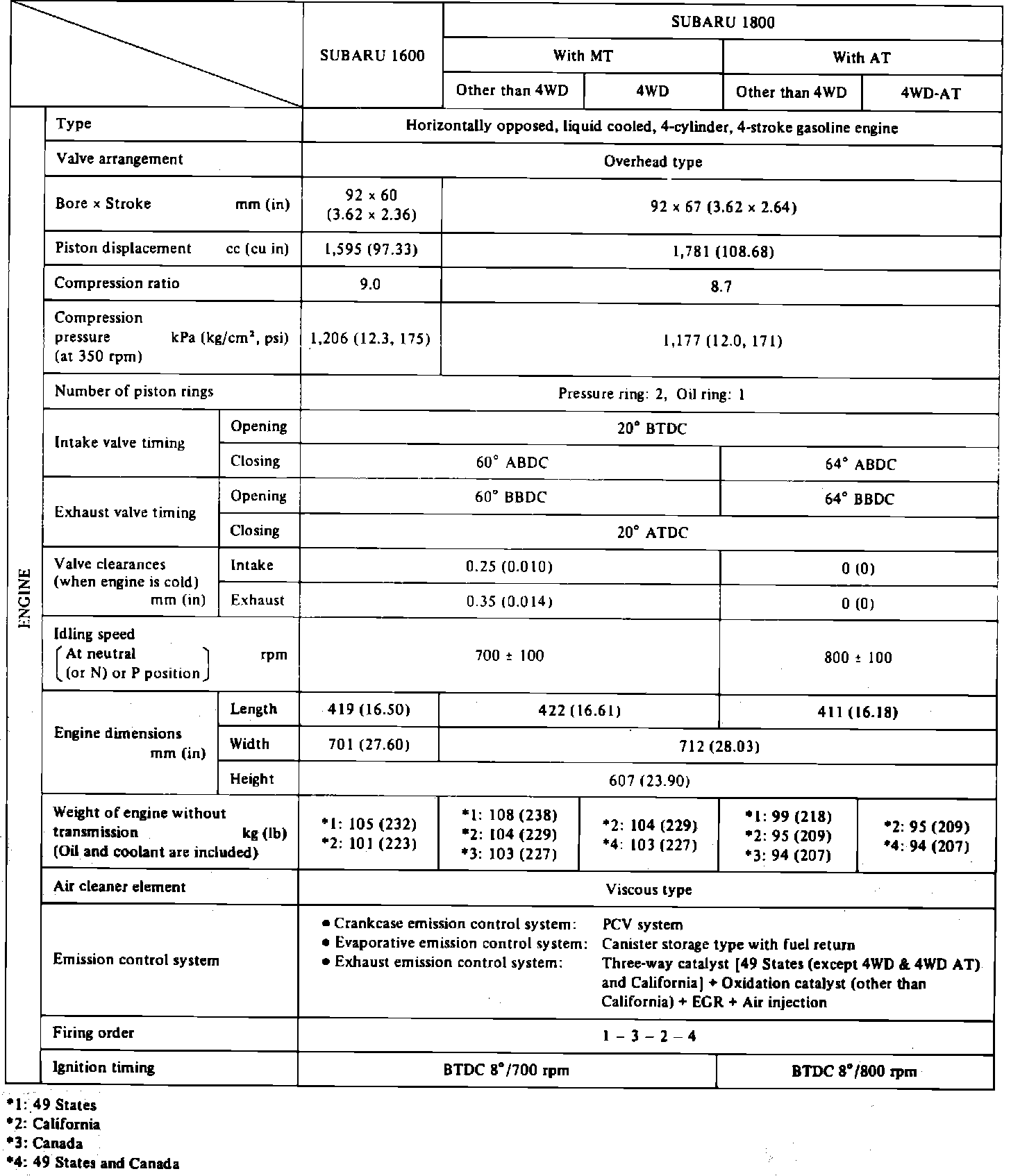

Engine Specifications:

SERVICE DATA

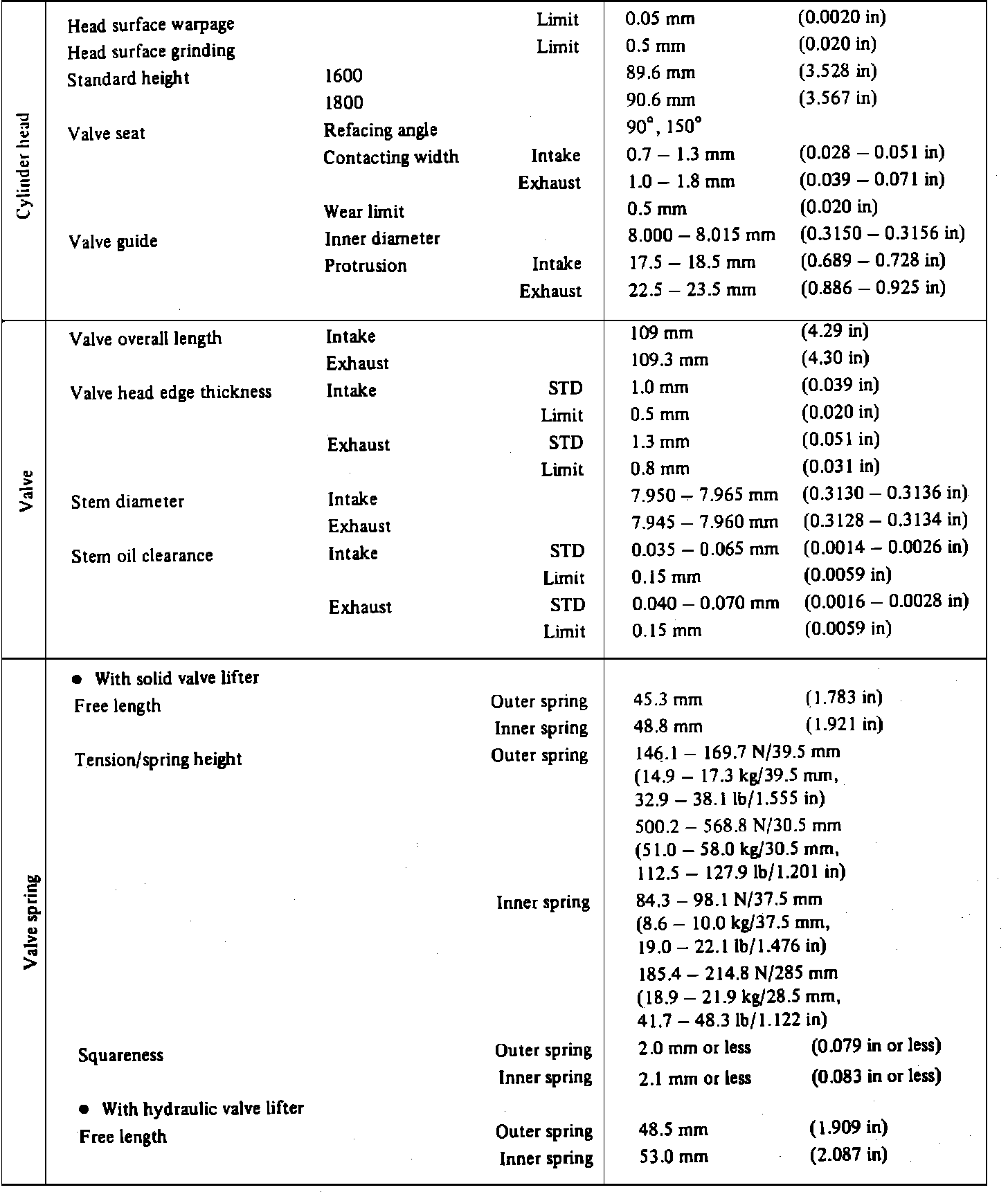

Engine Service Data (Cylinder Head & Valves):

Cylinder Head And Valves

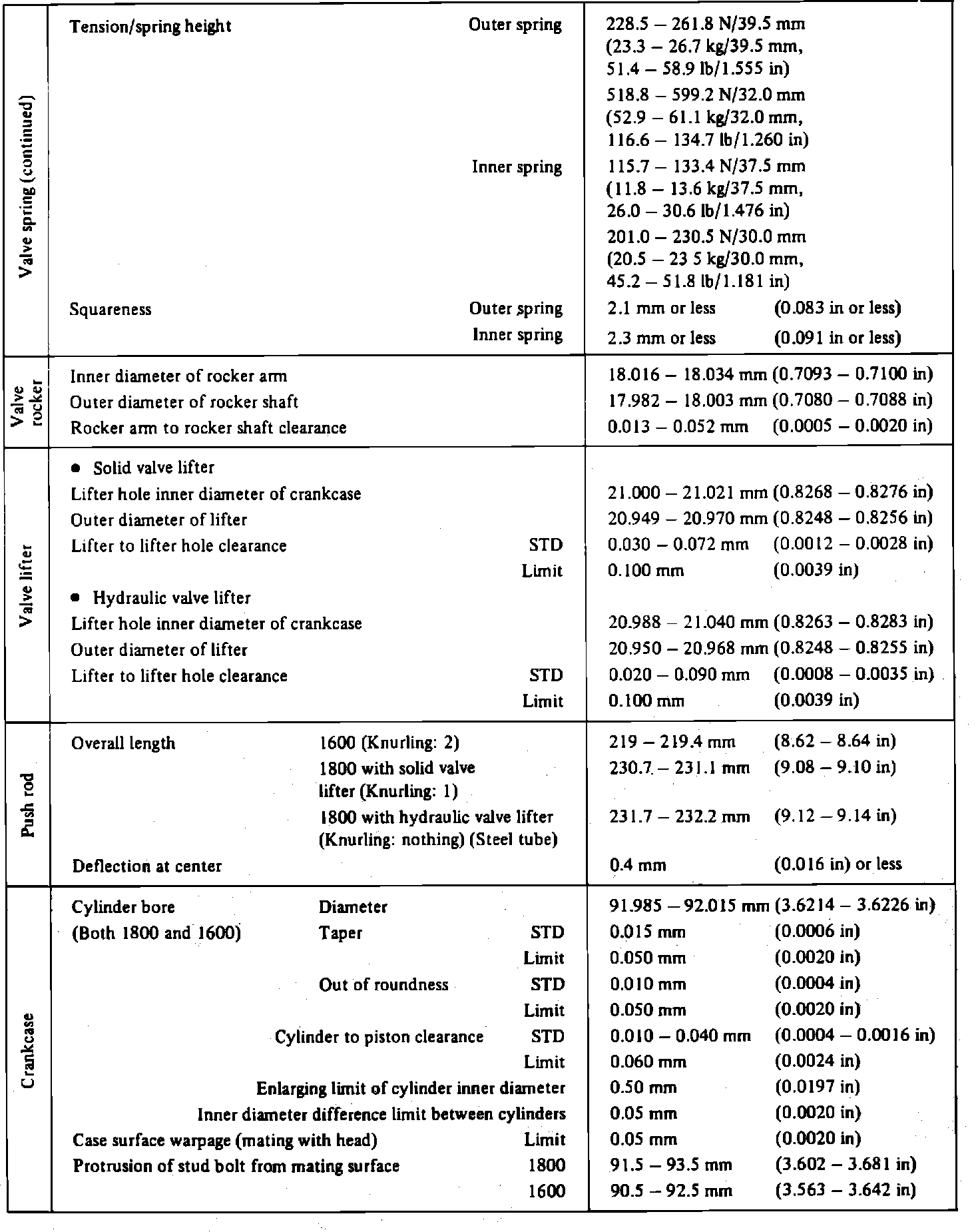

Engine Service Data (Valve Train & Crankcase):

Valve Train And Crankcase

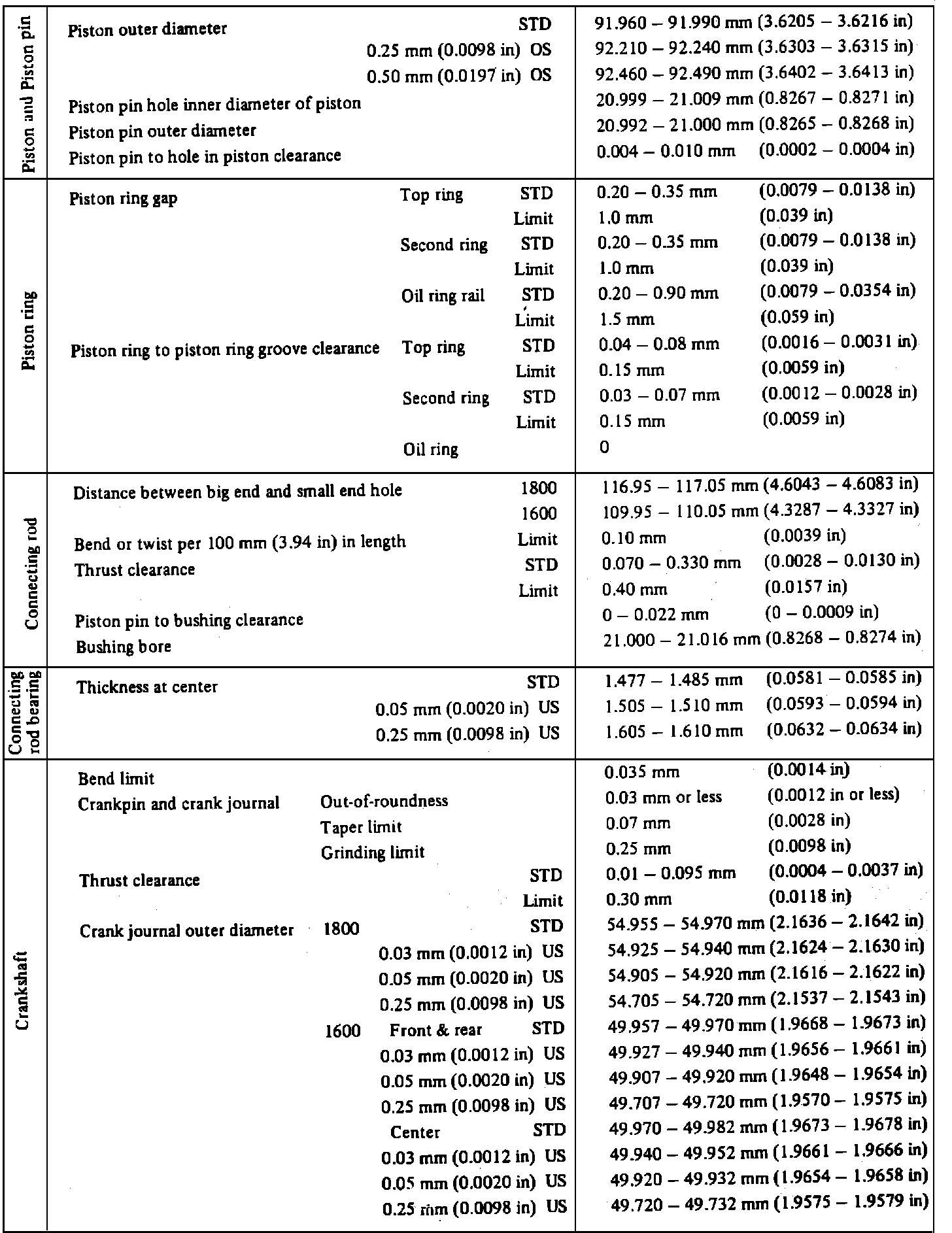

Engine Service Data (Pistons Rods And Crankshaft):

Pistons, Rods, Bearings And Crankshaft

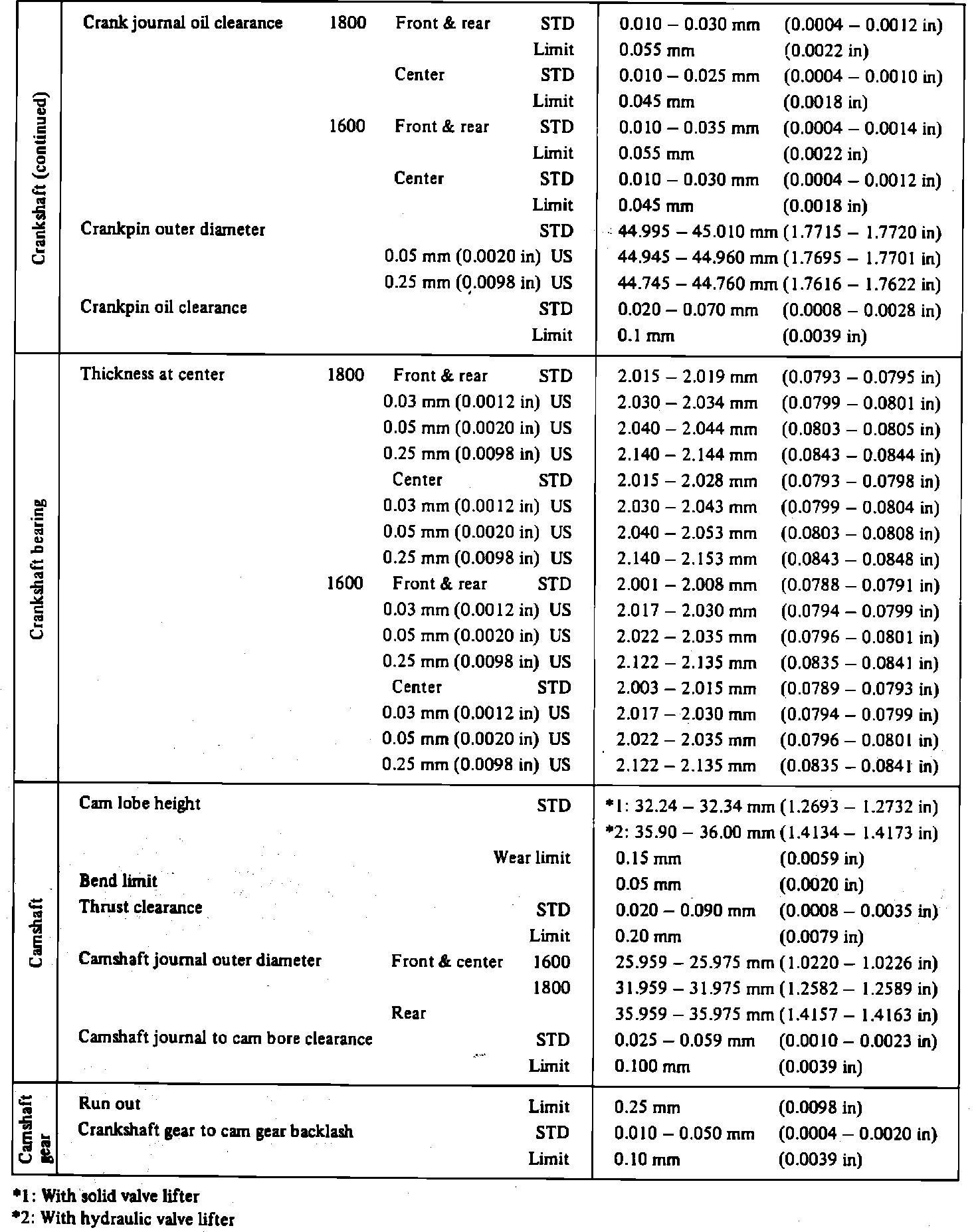

Engine Service Data (Crankshaft, Camshaft & bearings):

Crankshaft, Bearings, Camshaft Ang Camgear

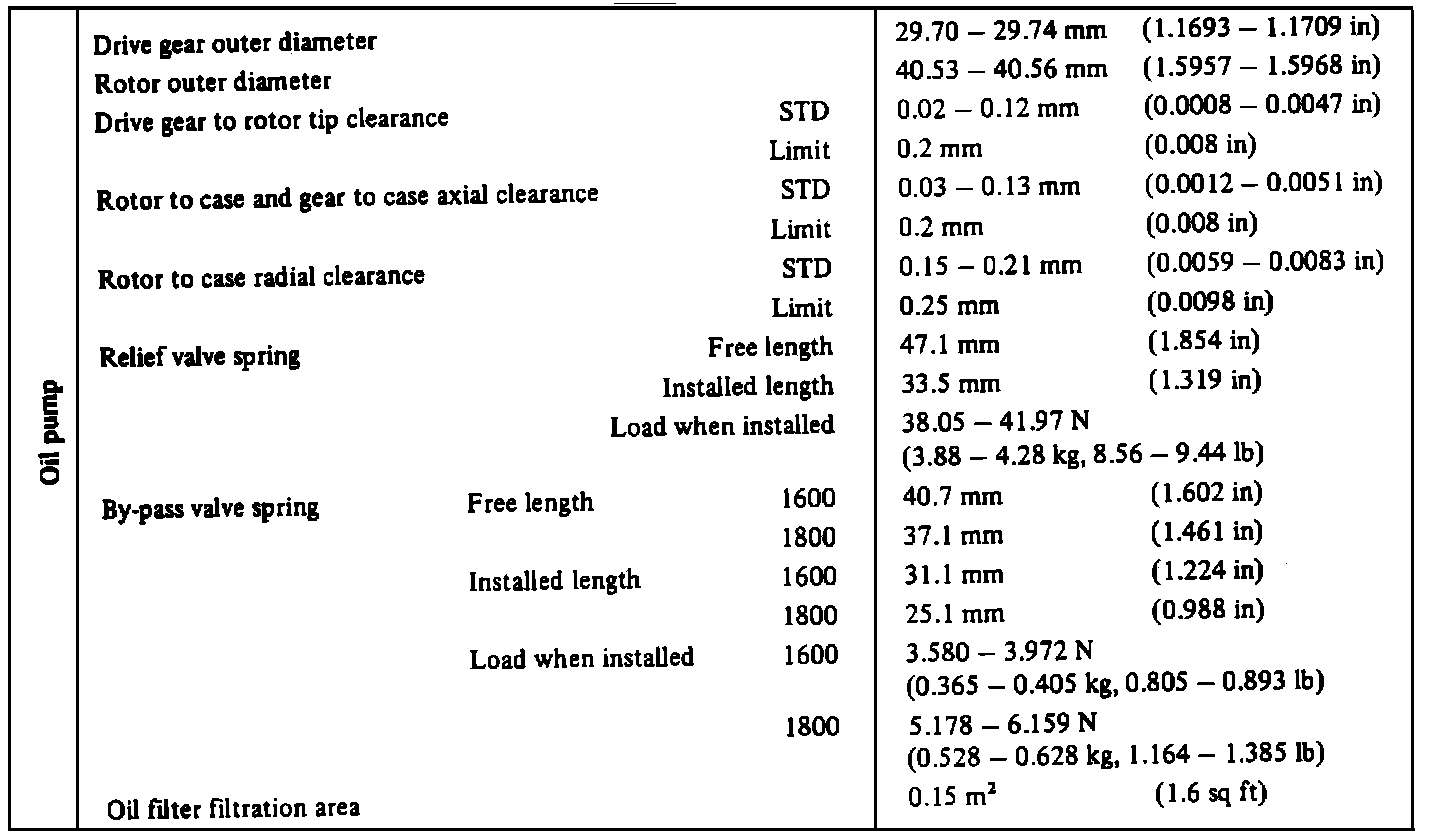

Engine Service Data (Oil Pump):

Oil Pump
