Removal & Installation

NOTE: Removal and installation procedures are not available from manufacturer. Refer to following illustrations for assistance in removal and installation. See Fig 1 -Fig 4 .

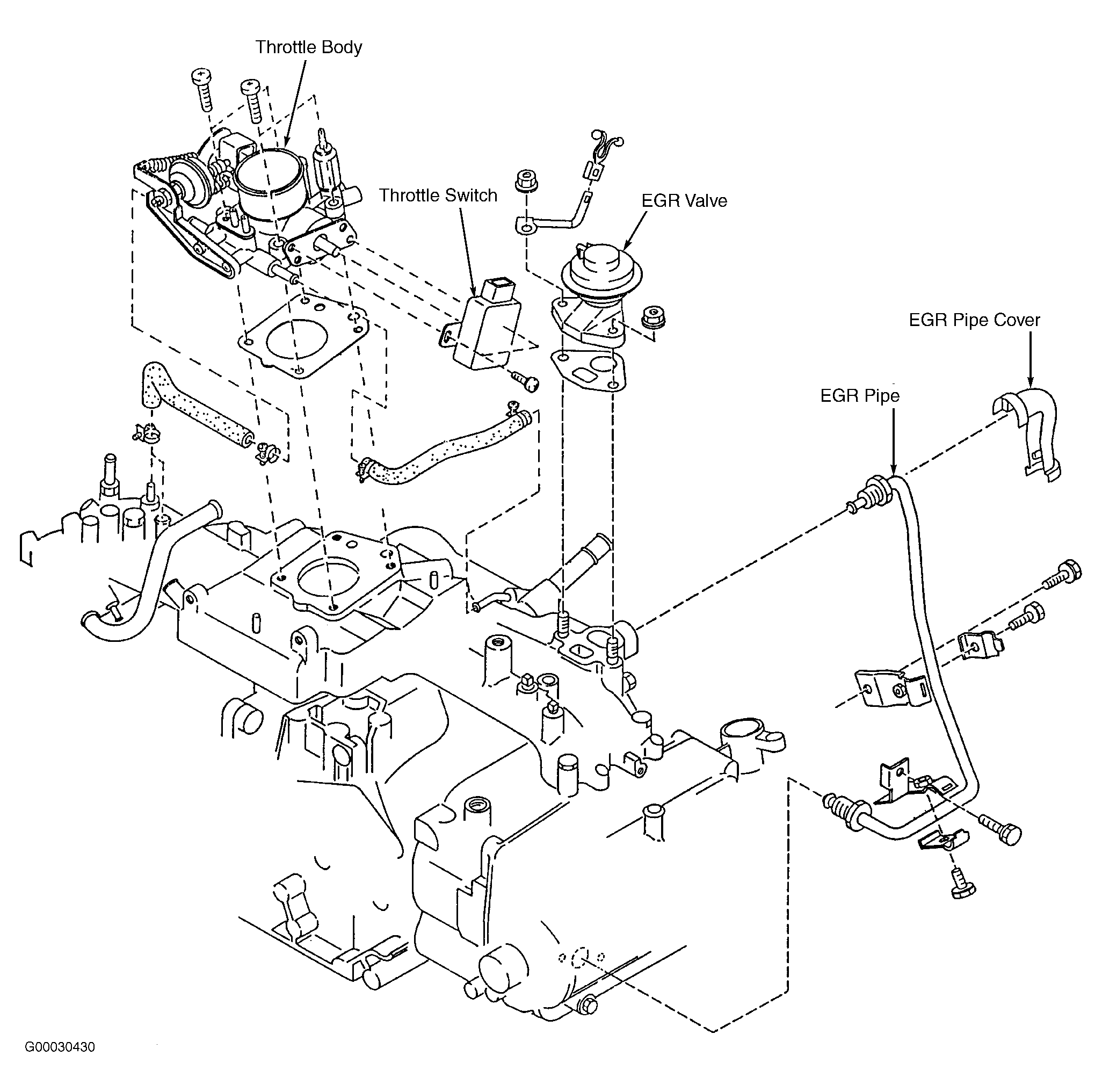

Fig 1: Exploded View Of Throttle Body & EGR Valve
G00030430Courtesy of SUBARU OF AMERICA, INC.

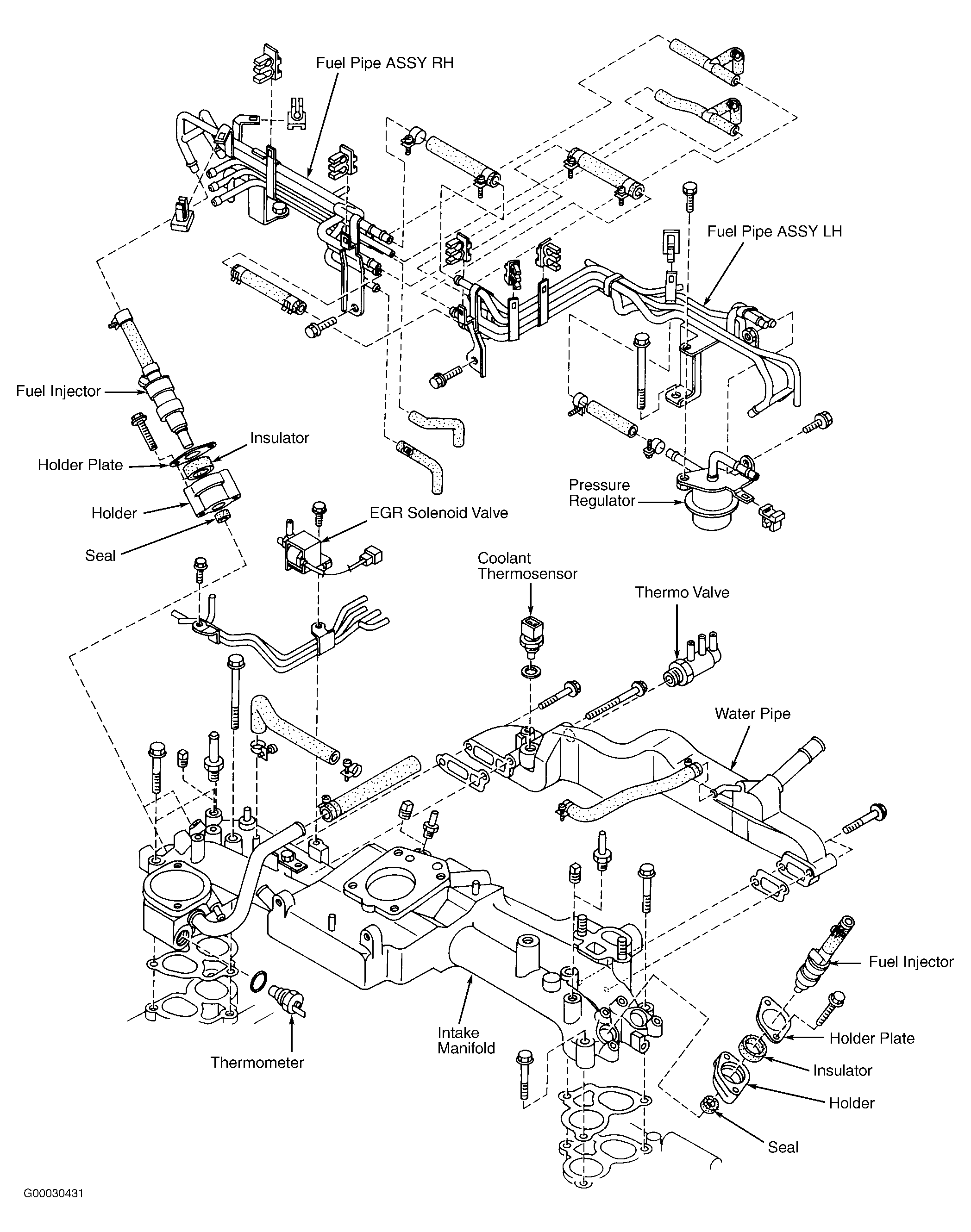

Fig 2: Exploded View Of Intake Manifold
G00030431Courtesy of SUBARU OF AMERICA, INC.

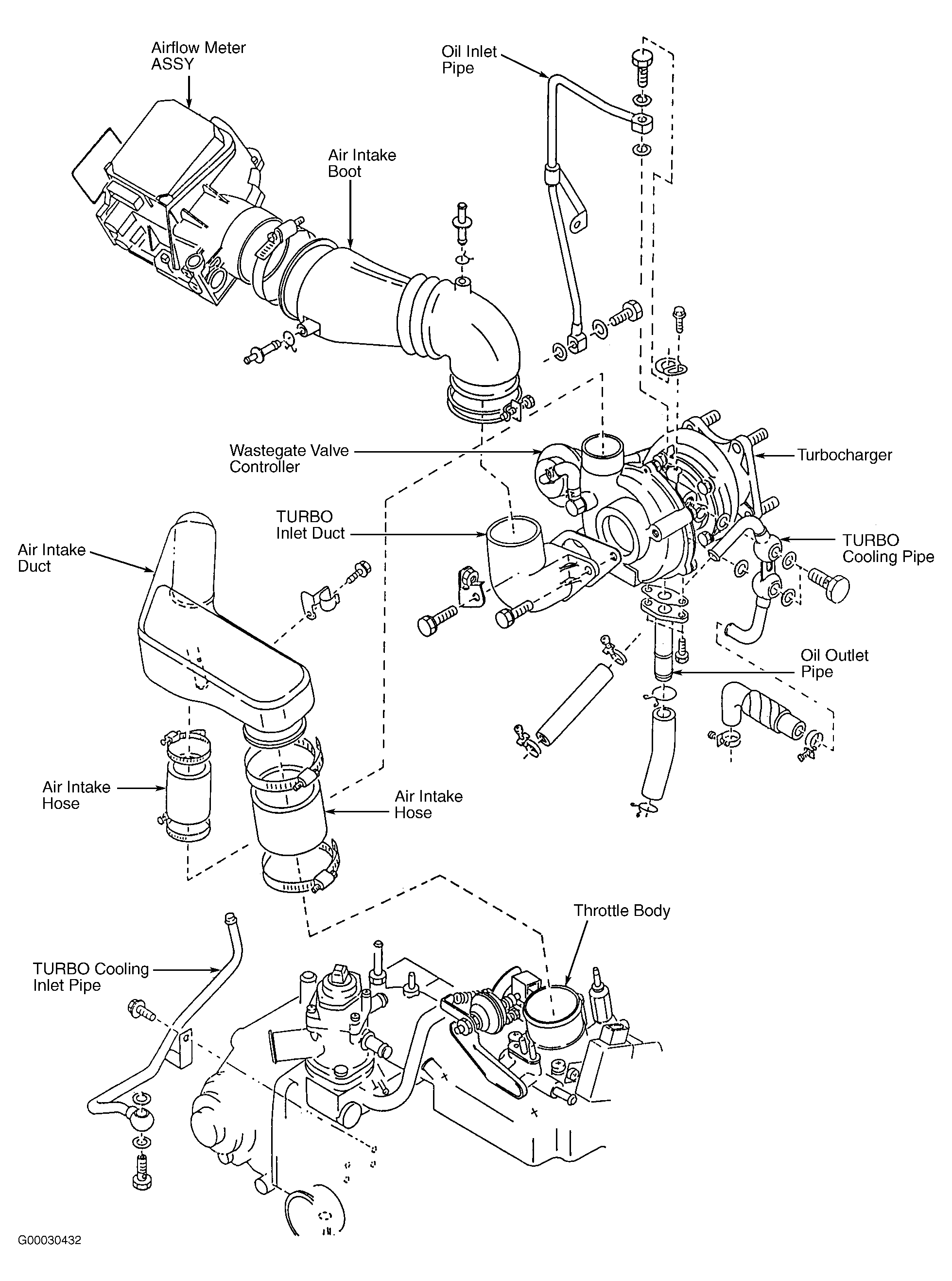

Fig 3: Exploded View Of Turbocharger System
G00030432Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Exploded View Of Air Intake System
G00030432Courtesy of SUBARU OF AMERICA, INC.
