Torque Specifications

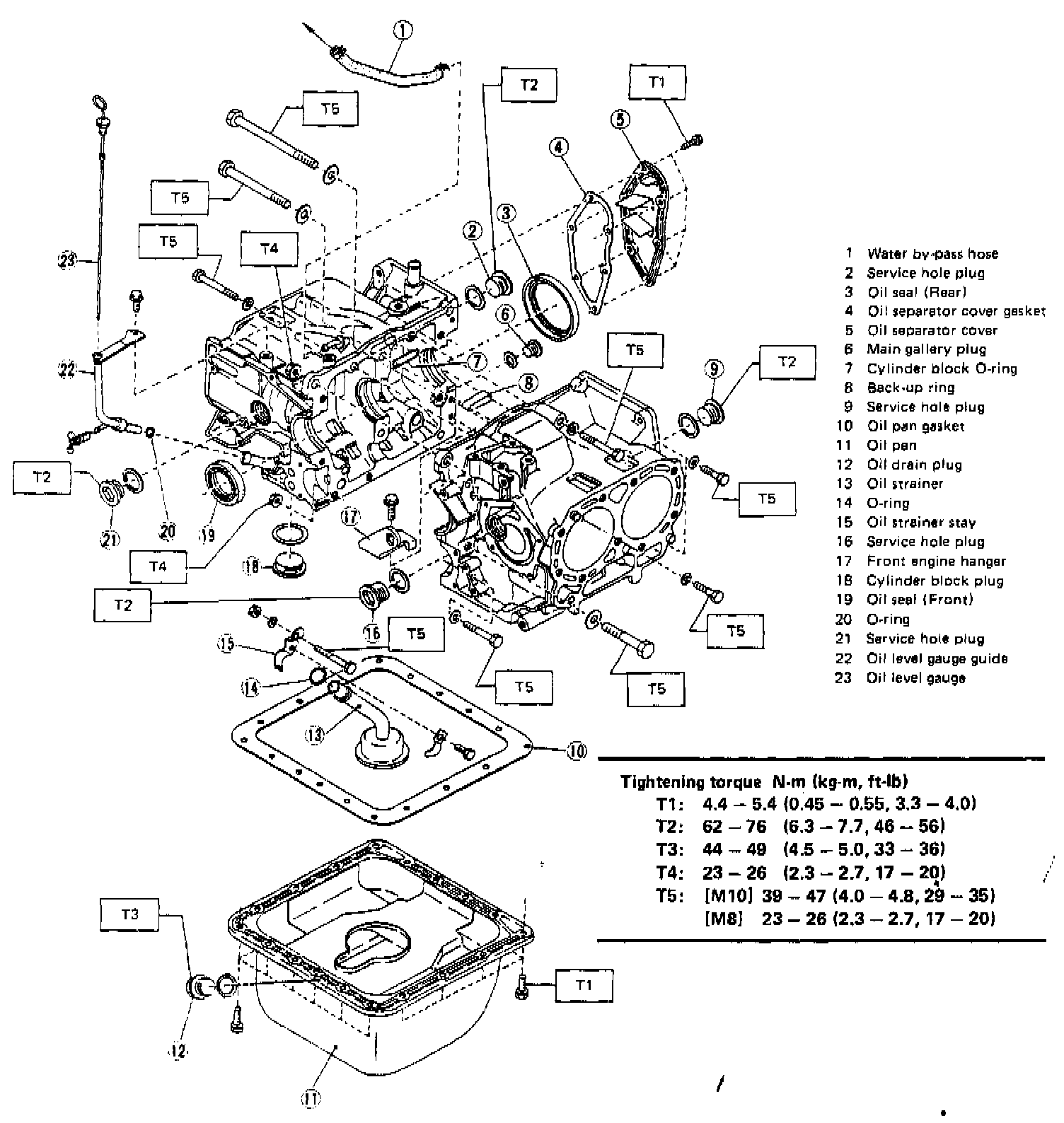

Cylinder Block And Oil Pan:

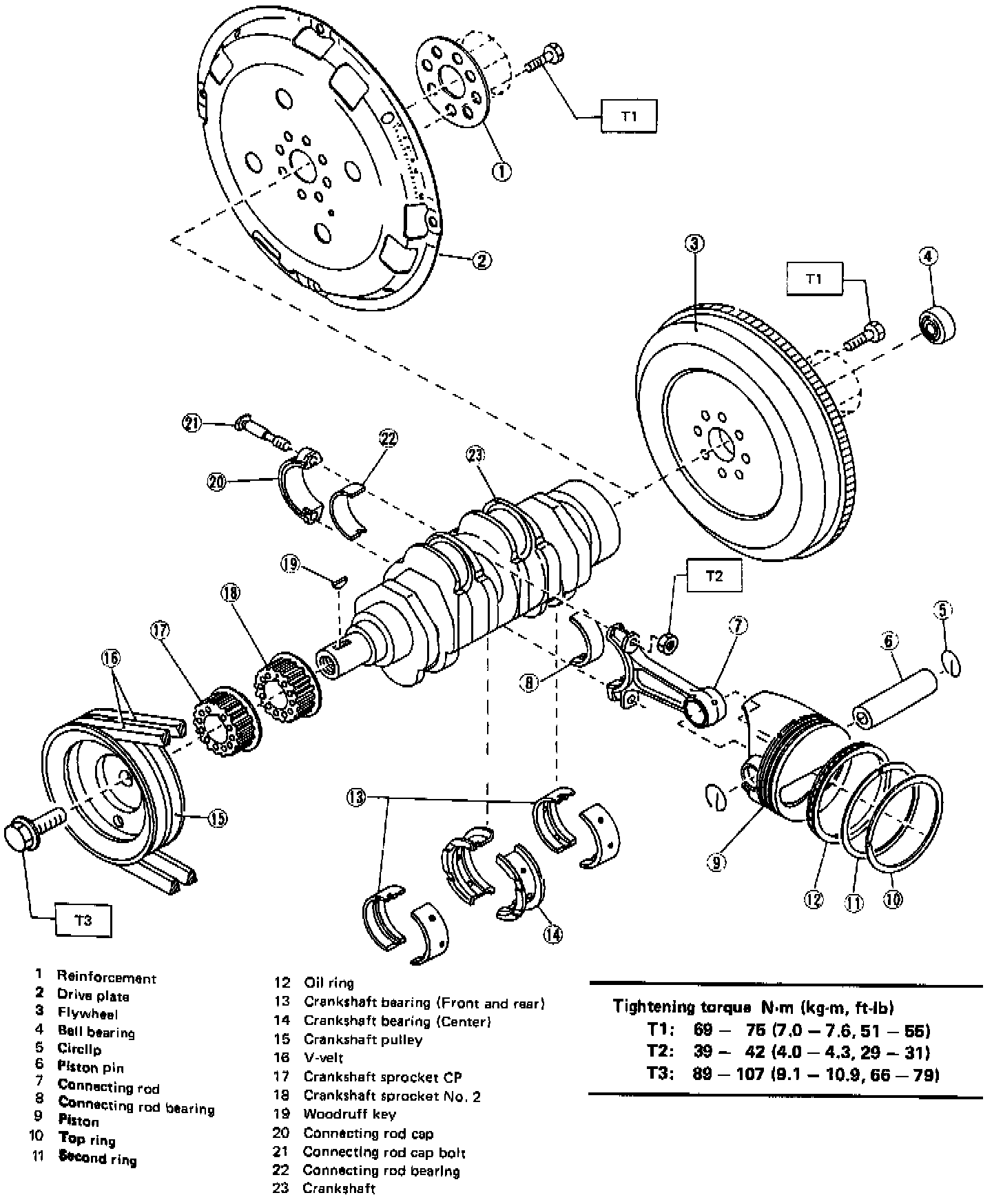

Crankshaft And Piston:

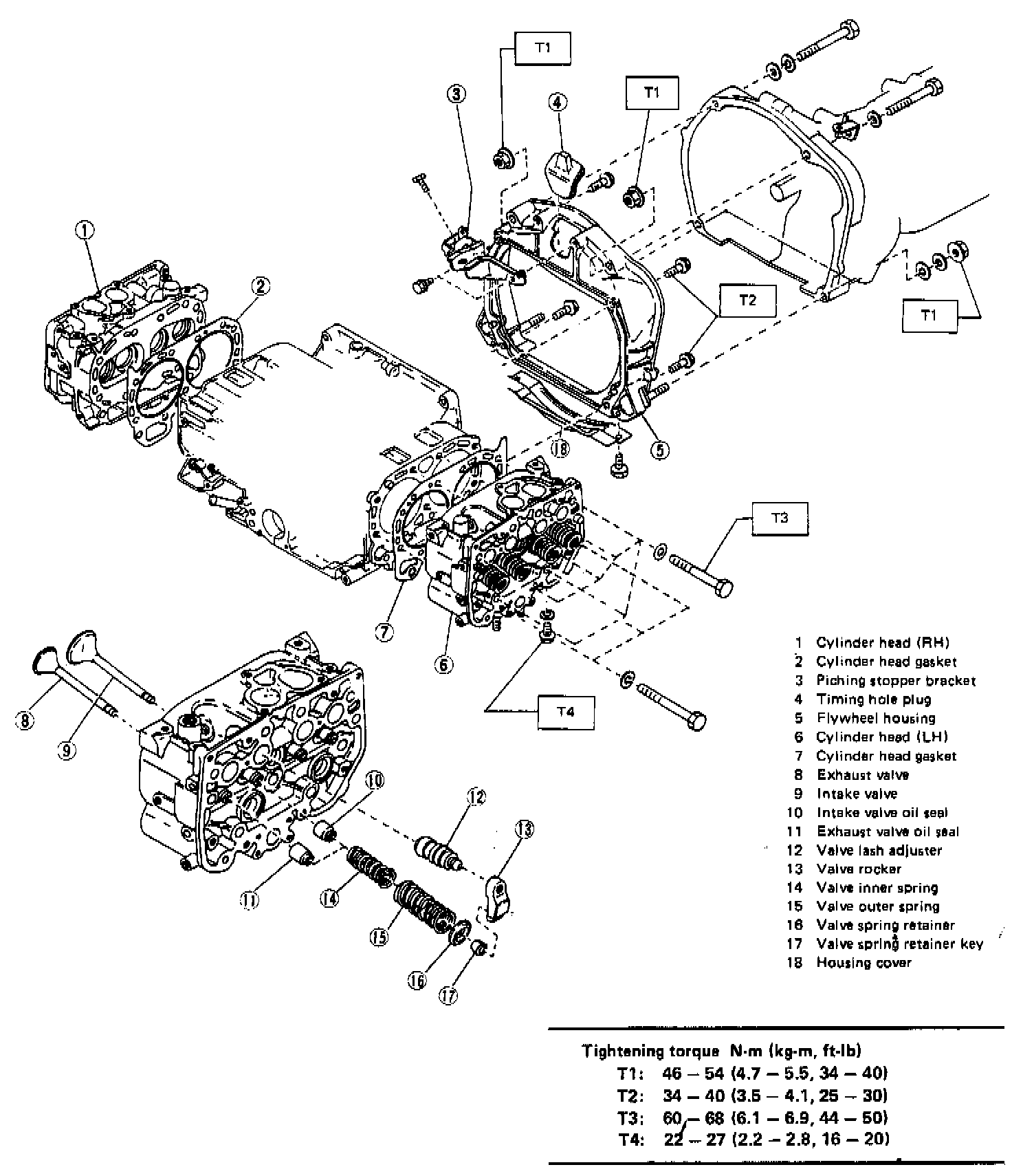

Cylinder Head And Flywheel Housing:

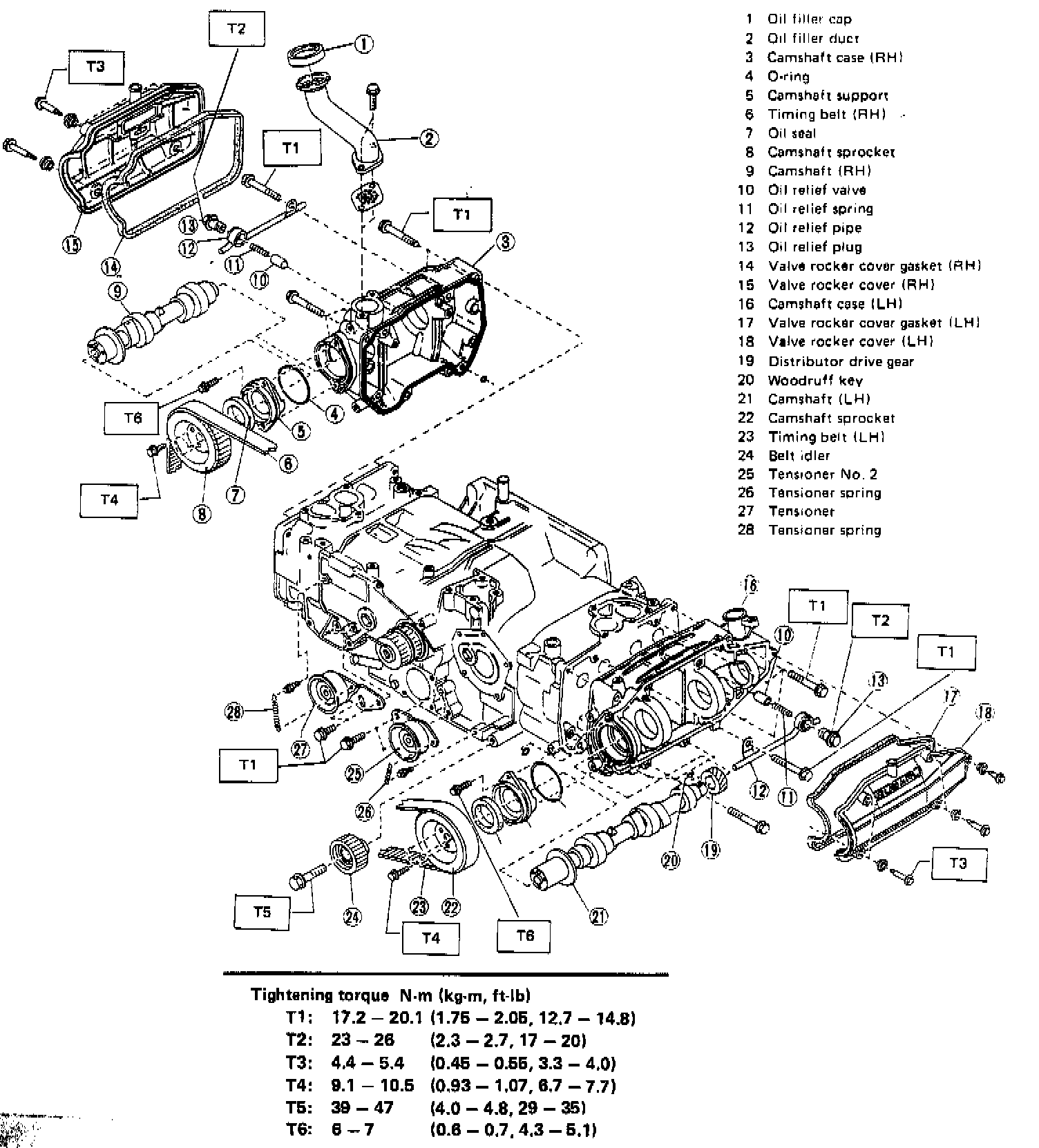

Camshaft And Timing Belt:
