Control Units

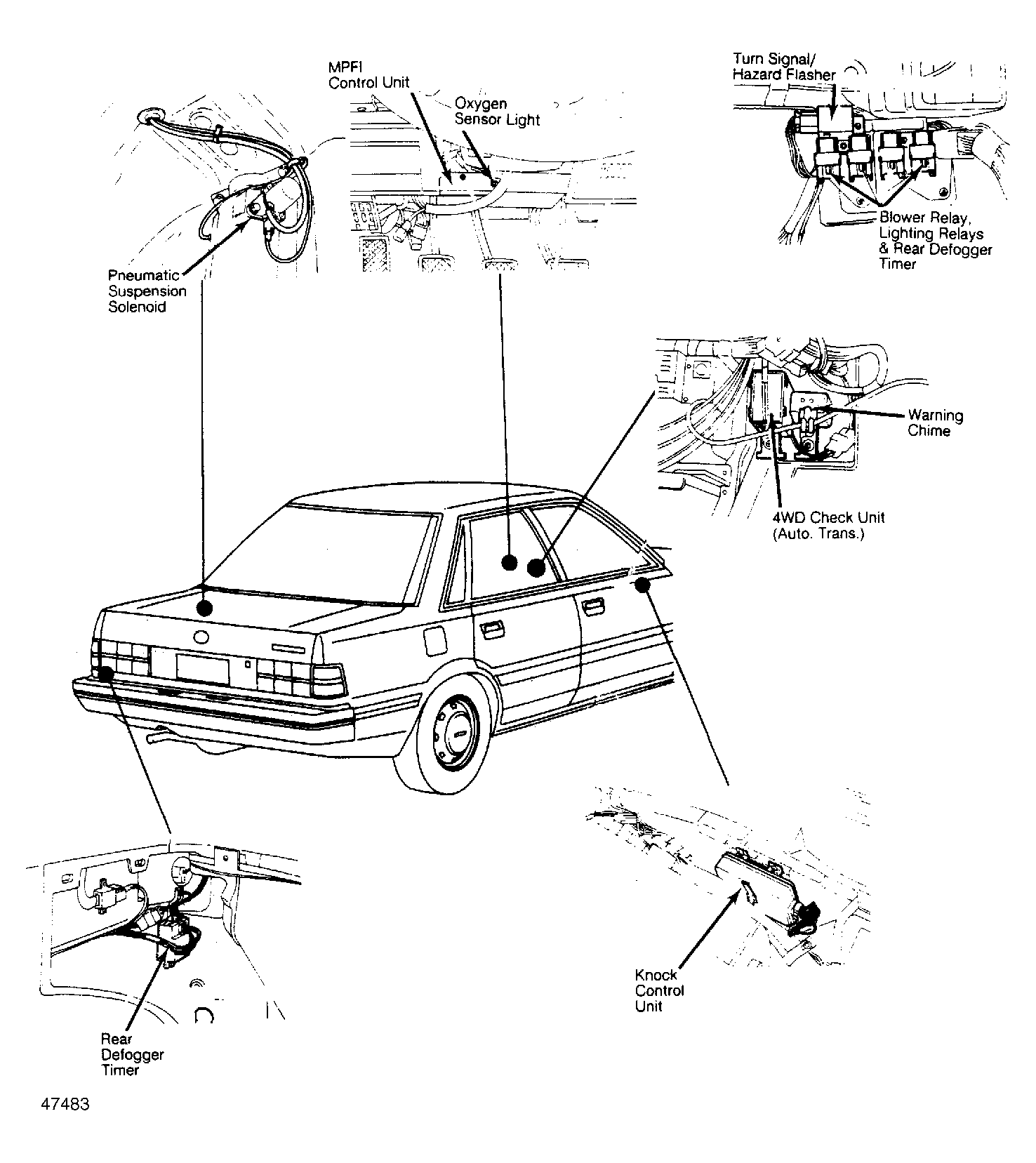

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Unit | On left side of dash, behind instrument cluster. |
| Ignition Module (SPFI) | On left fender panel, under ignition coil. See Figure . |
| Intermittent Wiper Control Unit | On left side of dash, below instrument cluster. See Figure . |
| Knock Control Unit | On right side of dash, behind glove box. See Figure . |
| Multi Point Fuel Injection (MPFI) Control Unit | On left side of dash, below steering column. See Figure . |
| Pneumatic Suspension Control Unit | Under driver's seat. |
| Power Window Control Unit | Under front passenger's seat. |
| Single Point Fuel Injection (SPFI) Control Unit | On left side of dash, below steering column. See Figure . |
