Trouble Code 12, Back-Up System
Fig 1: Trouble Code 12, Back-Up System (1 of 2)

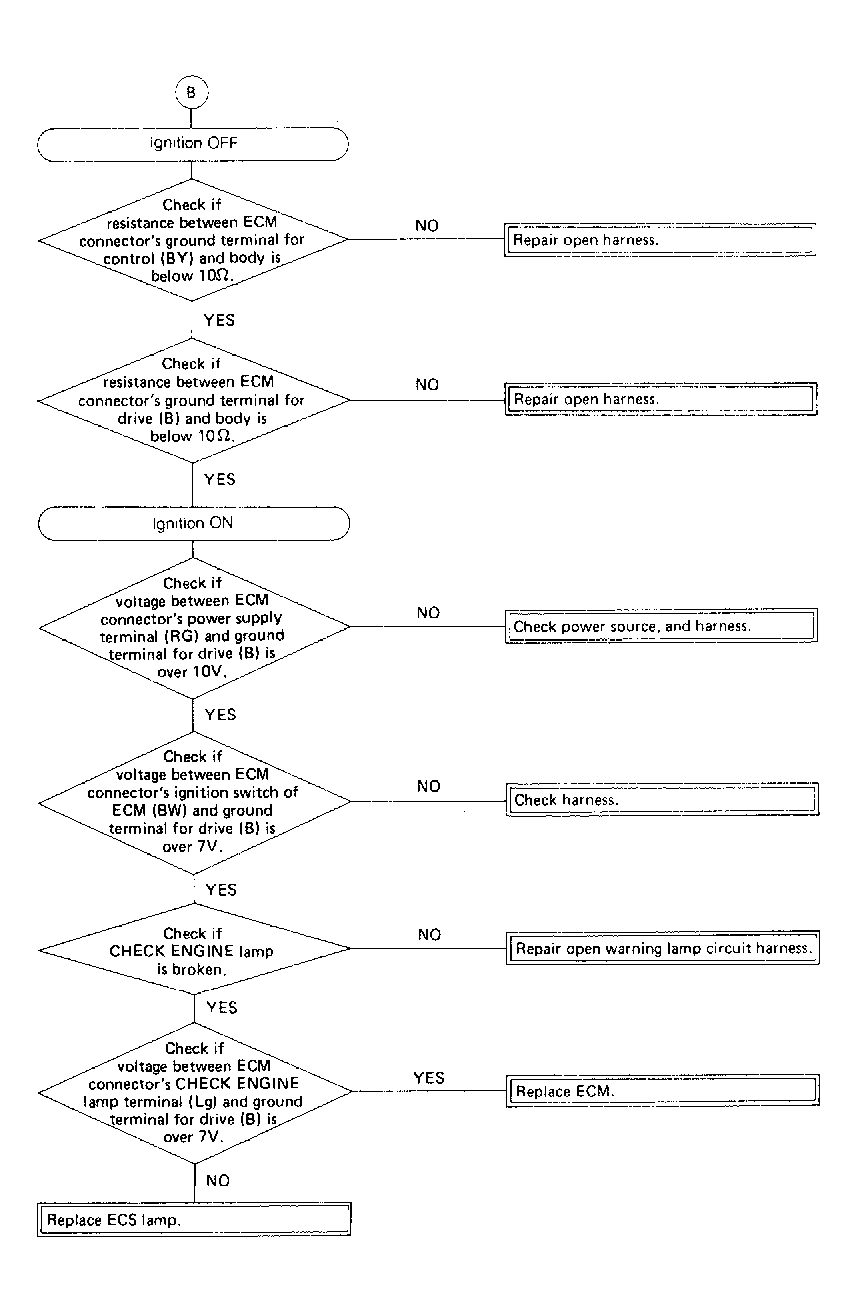

Fig 2: Trouble Code 12, Back-Up System (2 of 2)
