Wiring Diagrams

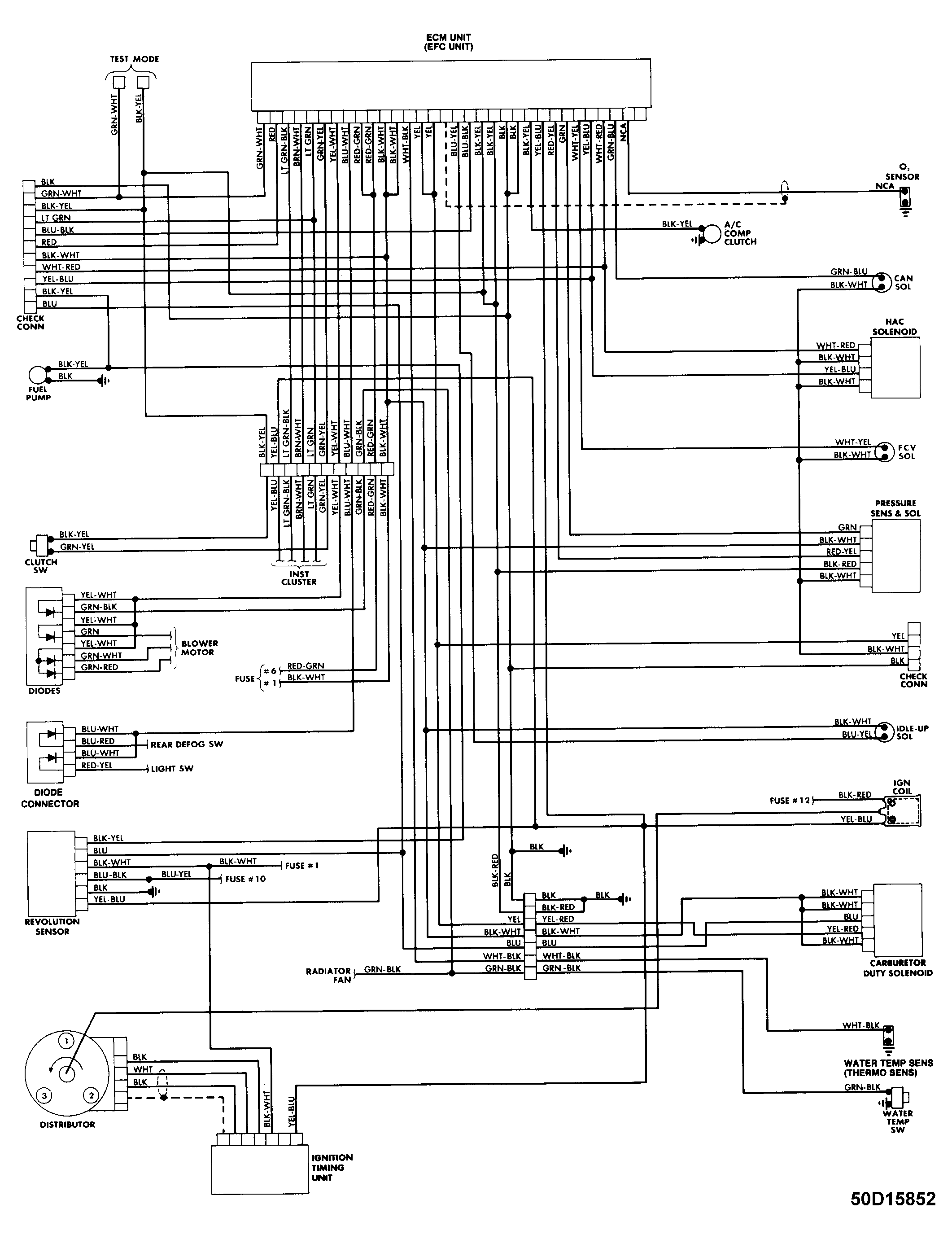

Fig 1: Wiring Diagram For All Carbureted Models Except Justy

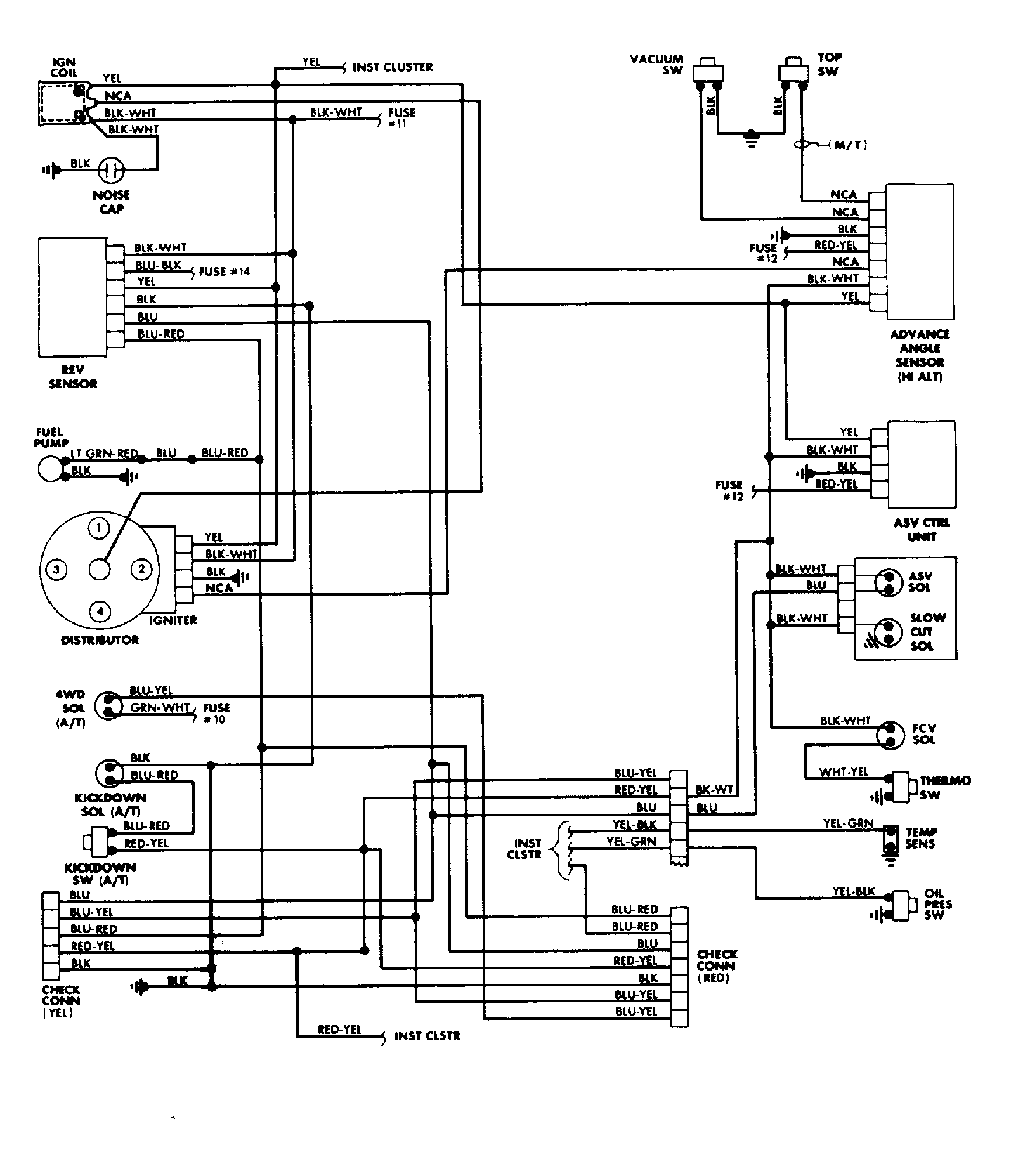

Fig 2: Wiring Diagram For Justy
