Axle Shaft Assembly
>>
Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front

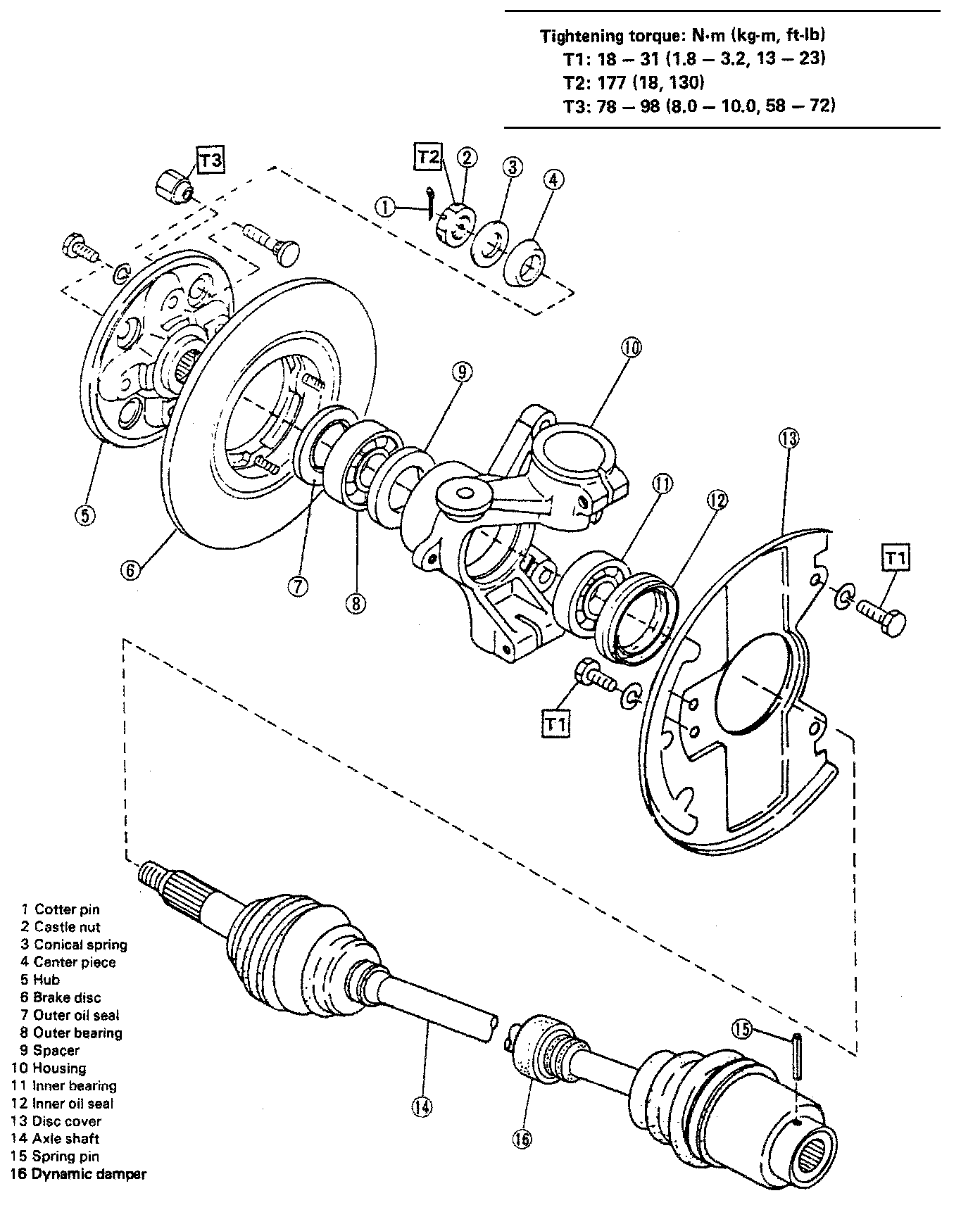

Front Axle:
