Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

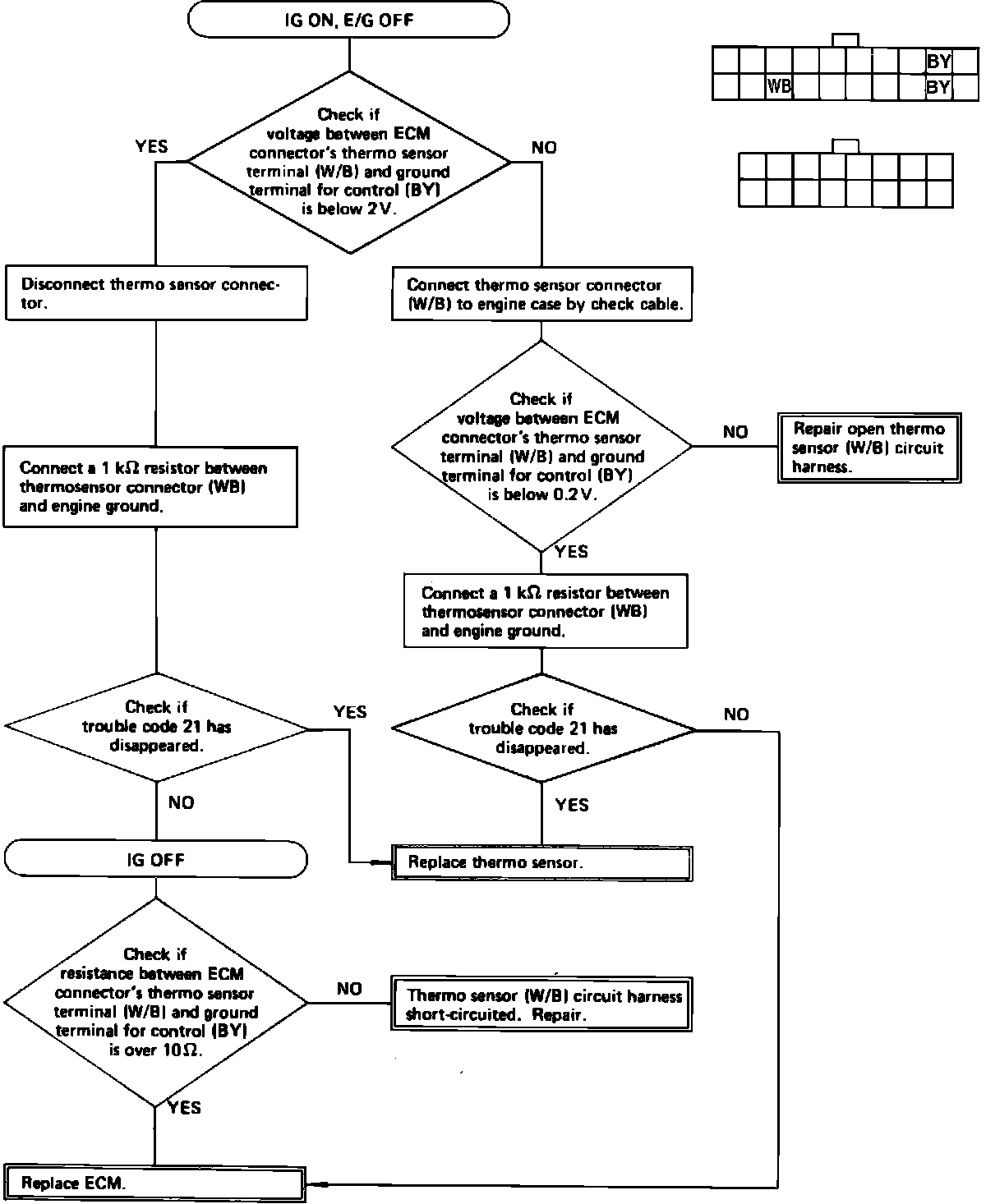

Fig. 28 Electronically controlled carburetor diagnostic chart. Trouble code 21.:
