Mixture Control Solenoid: Testing and Inspection

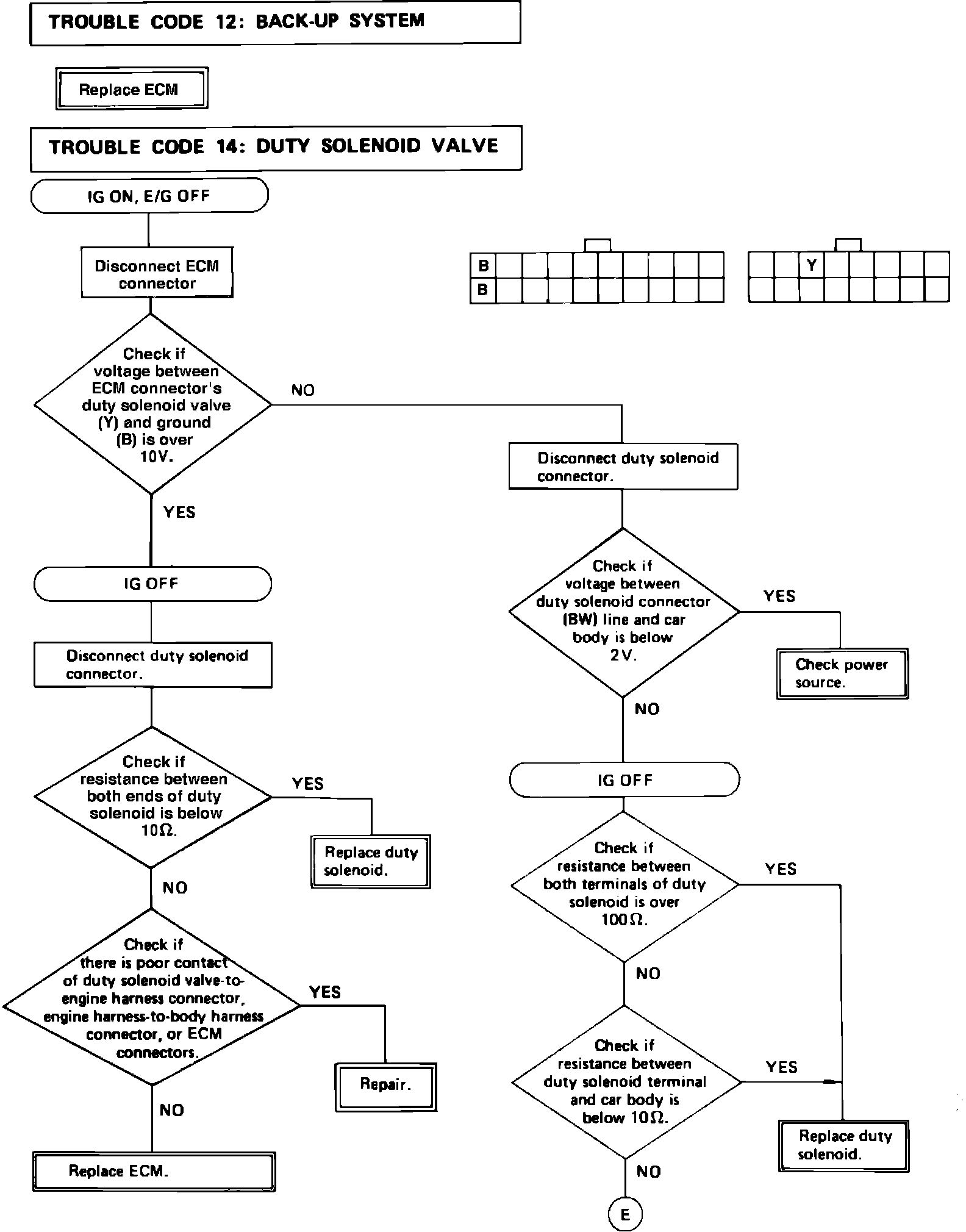

Fig. 27a Electronically controlled carburetor diagnostic chart. Trouble codes 12 and 14.:

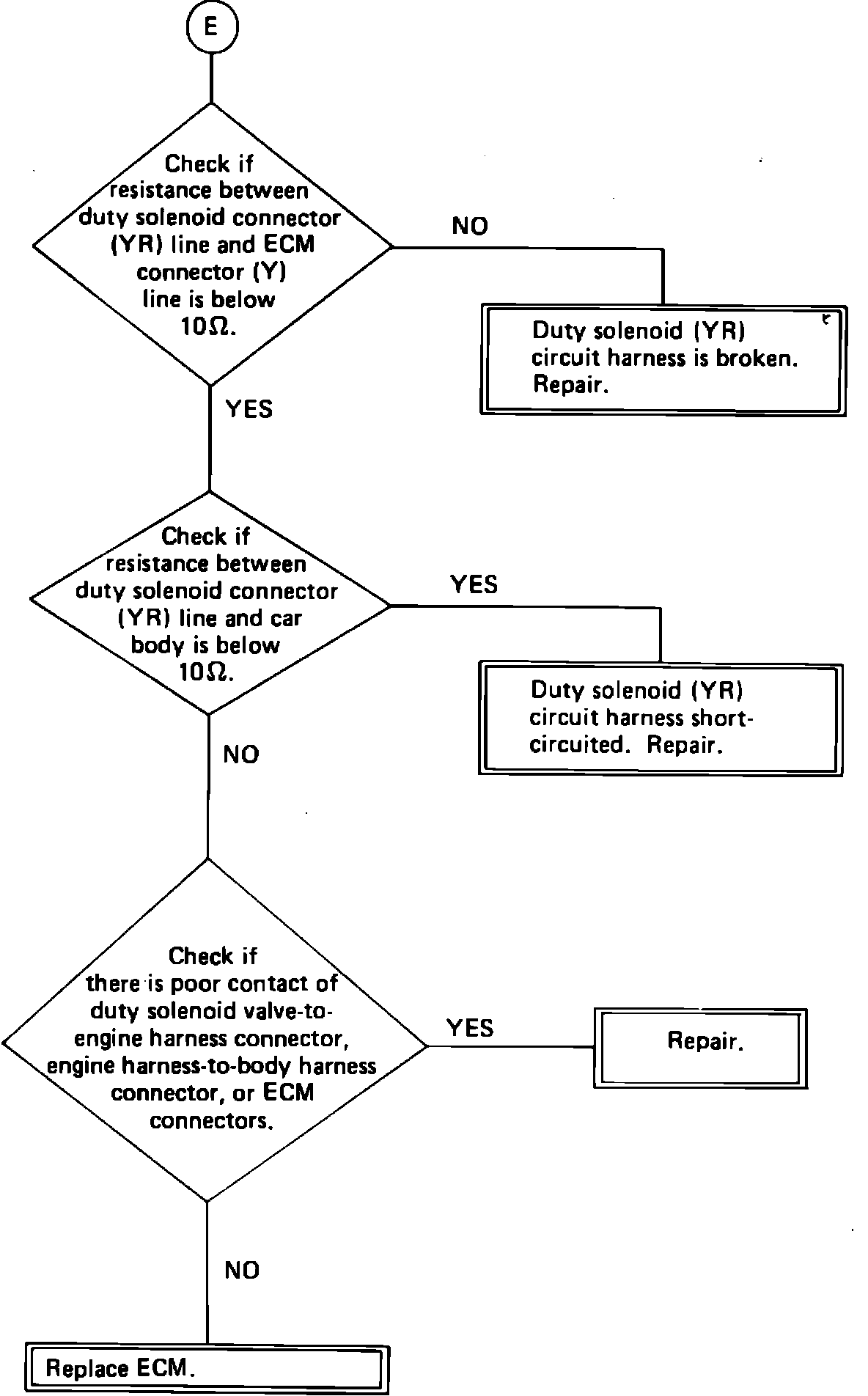

Fig. 27b Electronically controlled carburetor diagnostic chart. Trouble codes 12 and 14.:
