Vehicle Speed Sensor: Testing and Inspection

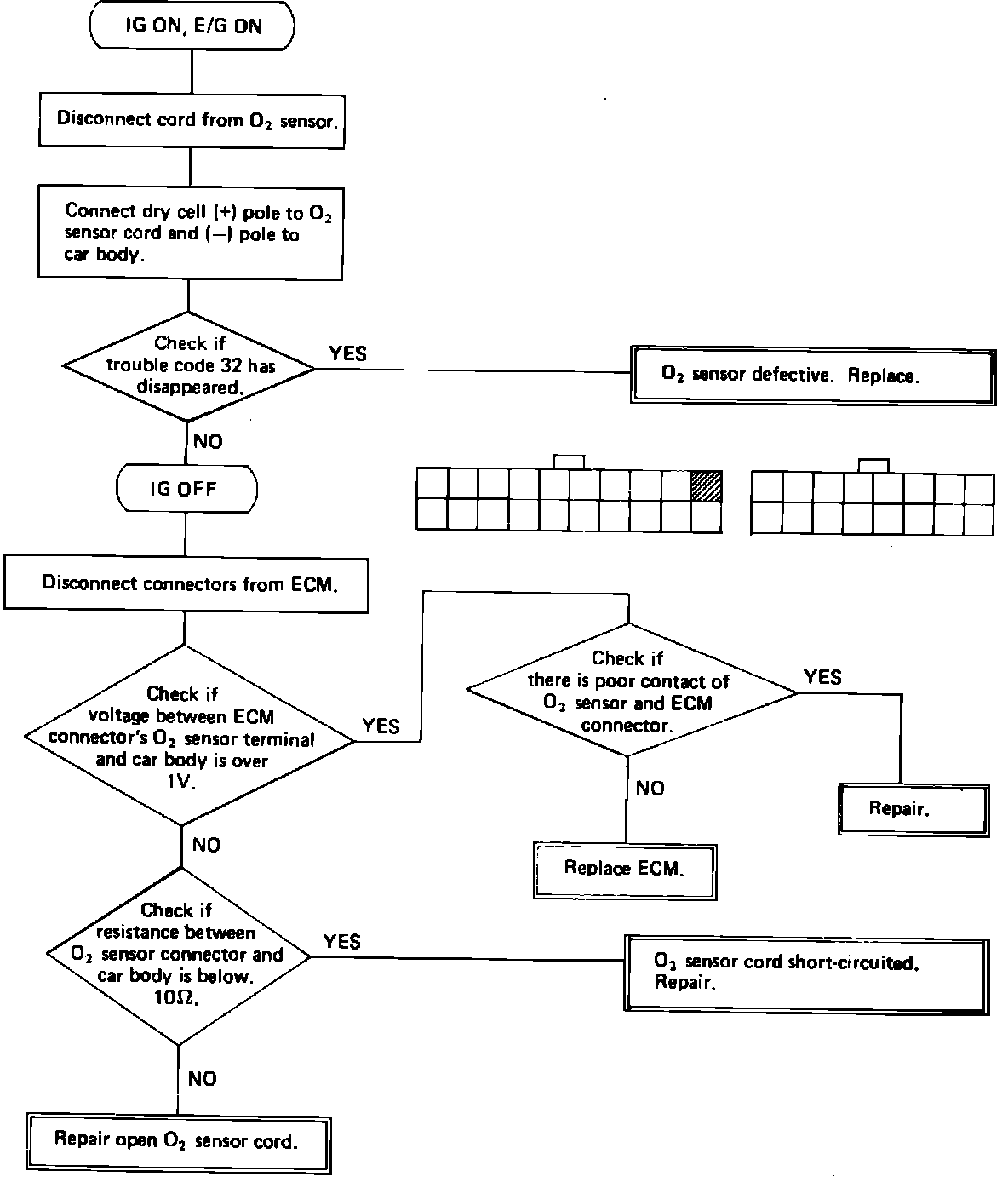

Fig. 33 Electronically controlled carburetor diagnostic chart. Trouble code 32.:

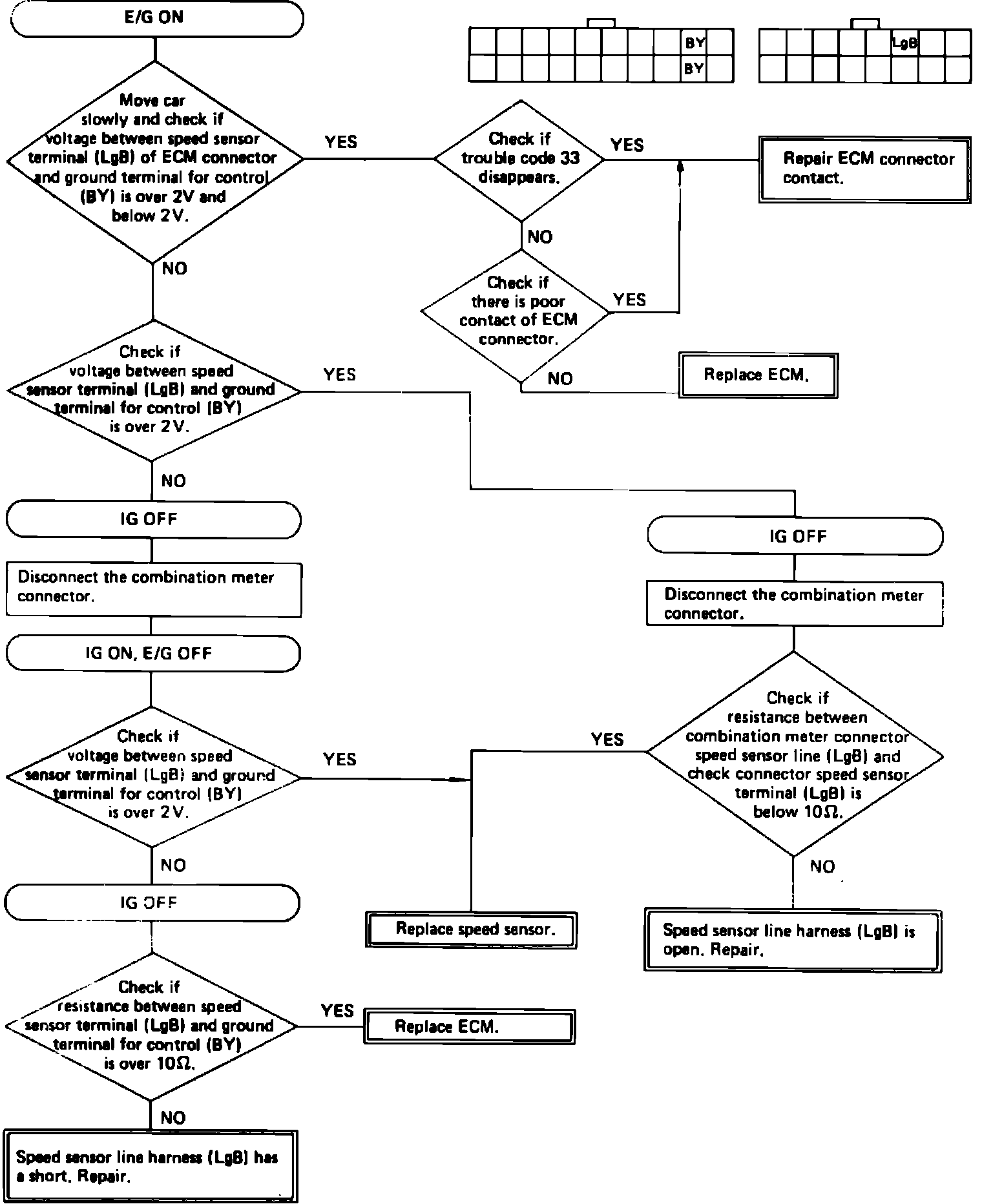

Fig. 34 Electronically controlled carburetor diagnostic chart. Trouble code 33.:
