Service Specifications

SPECIFICATIONS AND SERVICE DATA





Engine Specifications

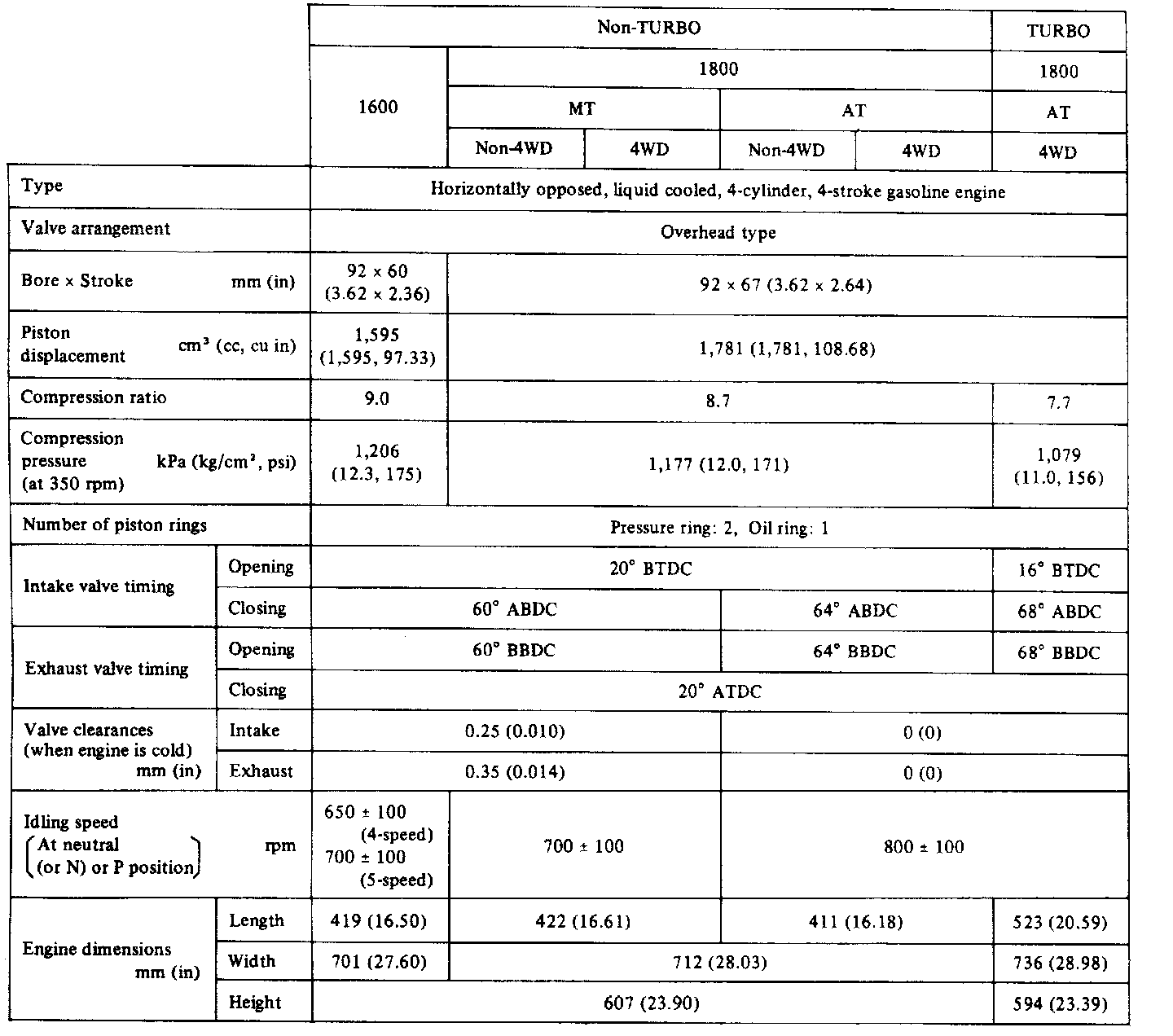

Engine, Part 1 Of 4:

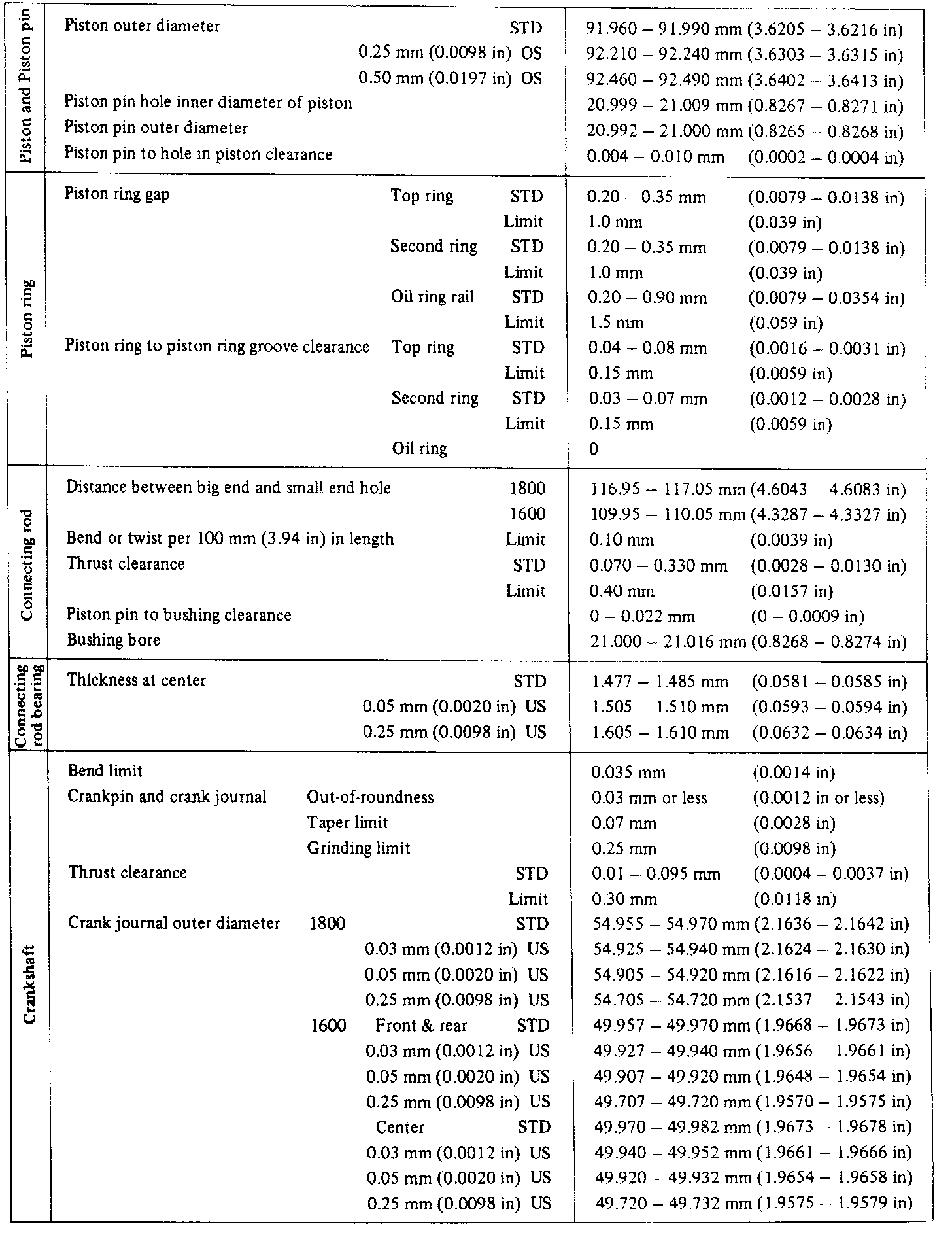

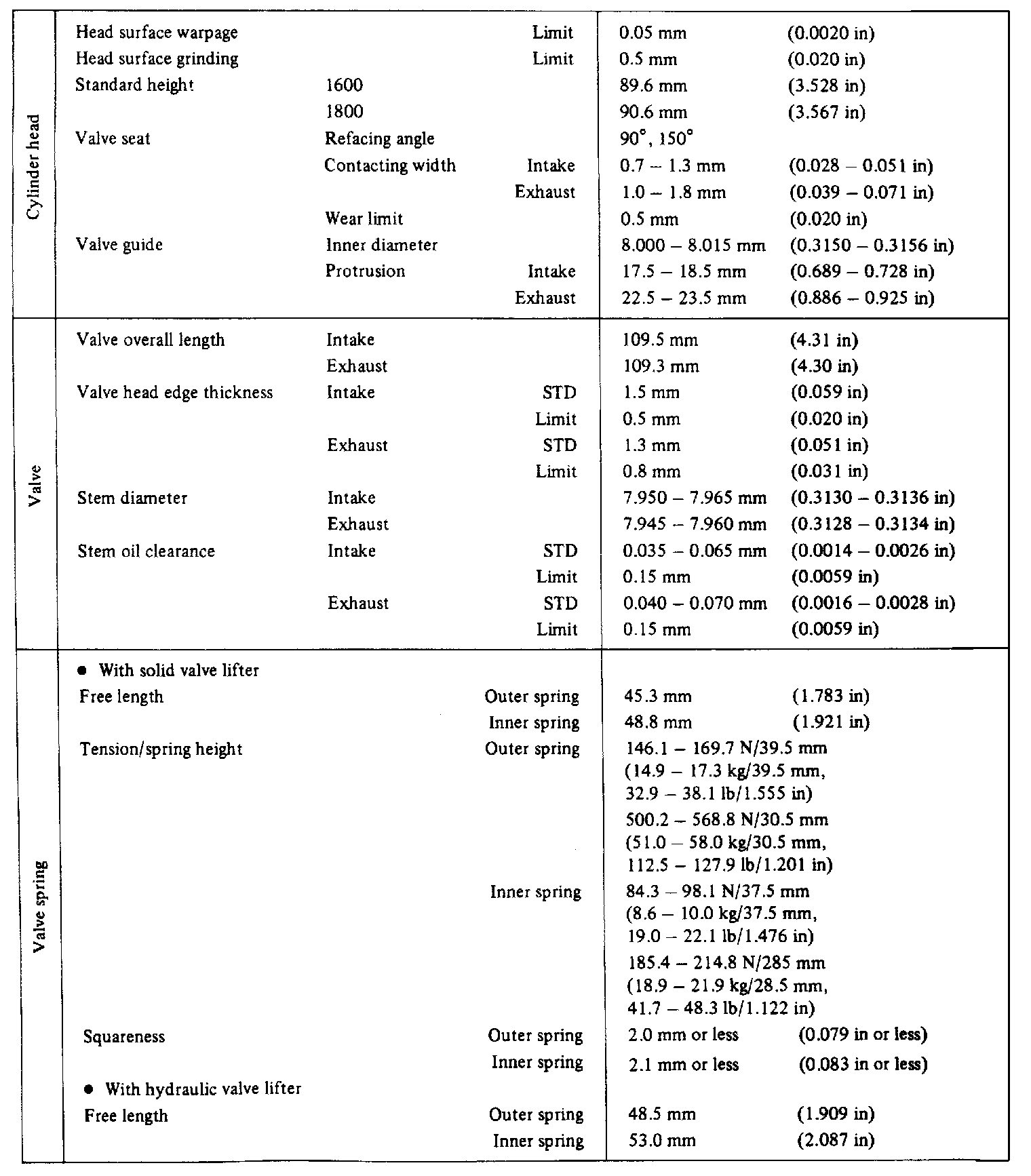

Engine, Part 2 Of 4:

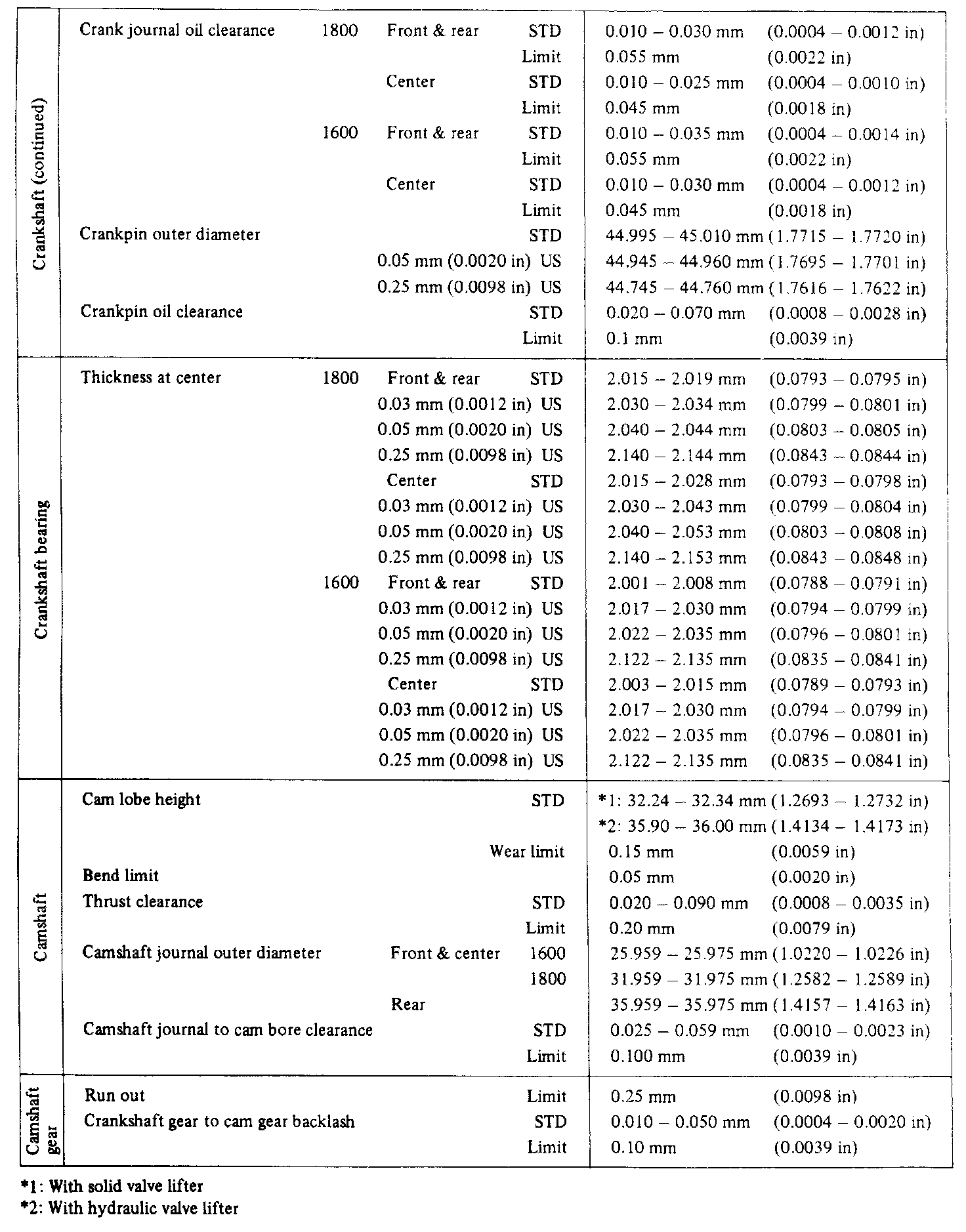

Engine, Part 3 Of 4:

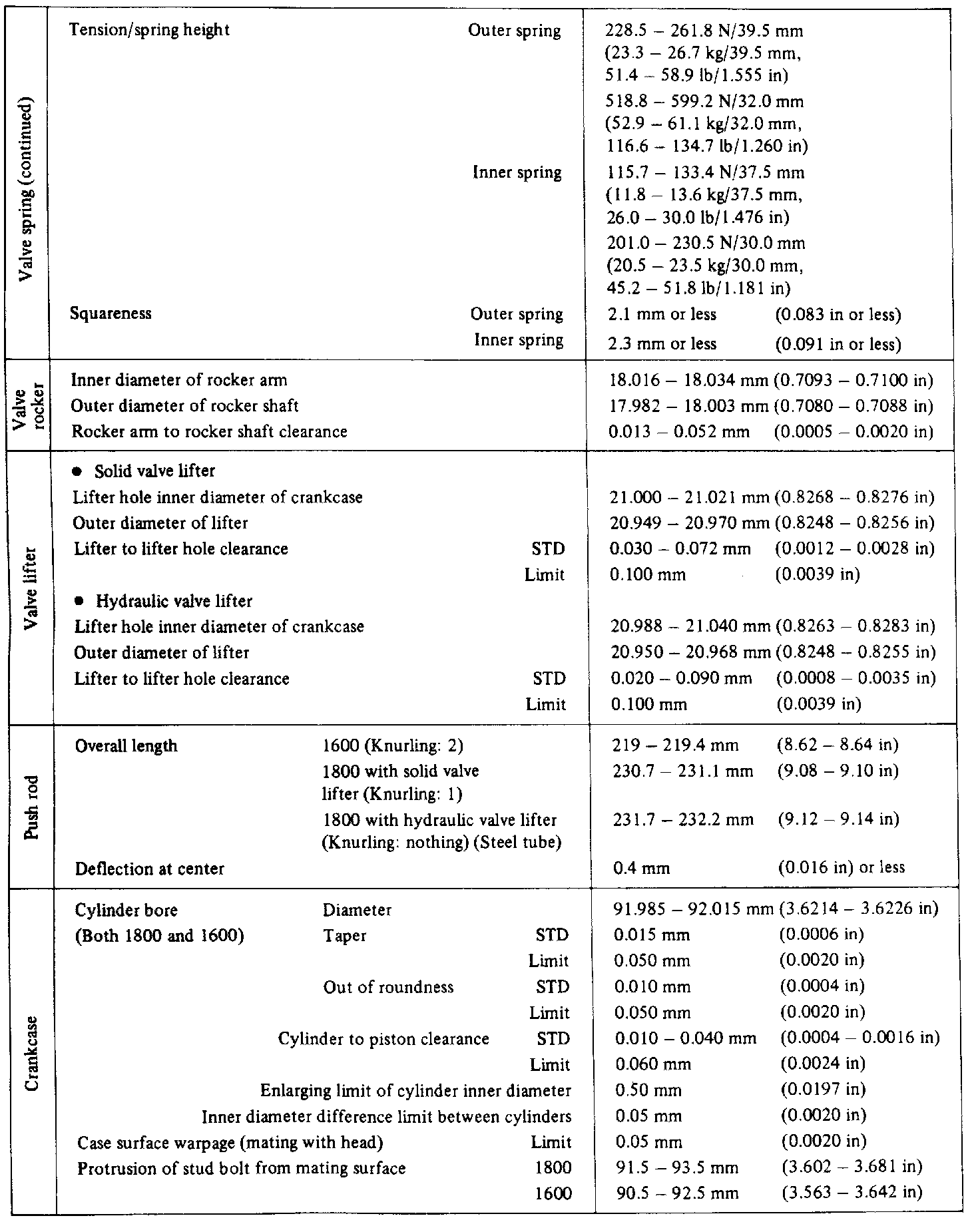

Engine, Part 4 Of 4:

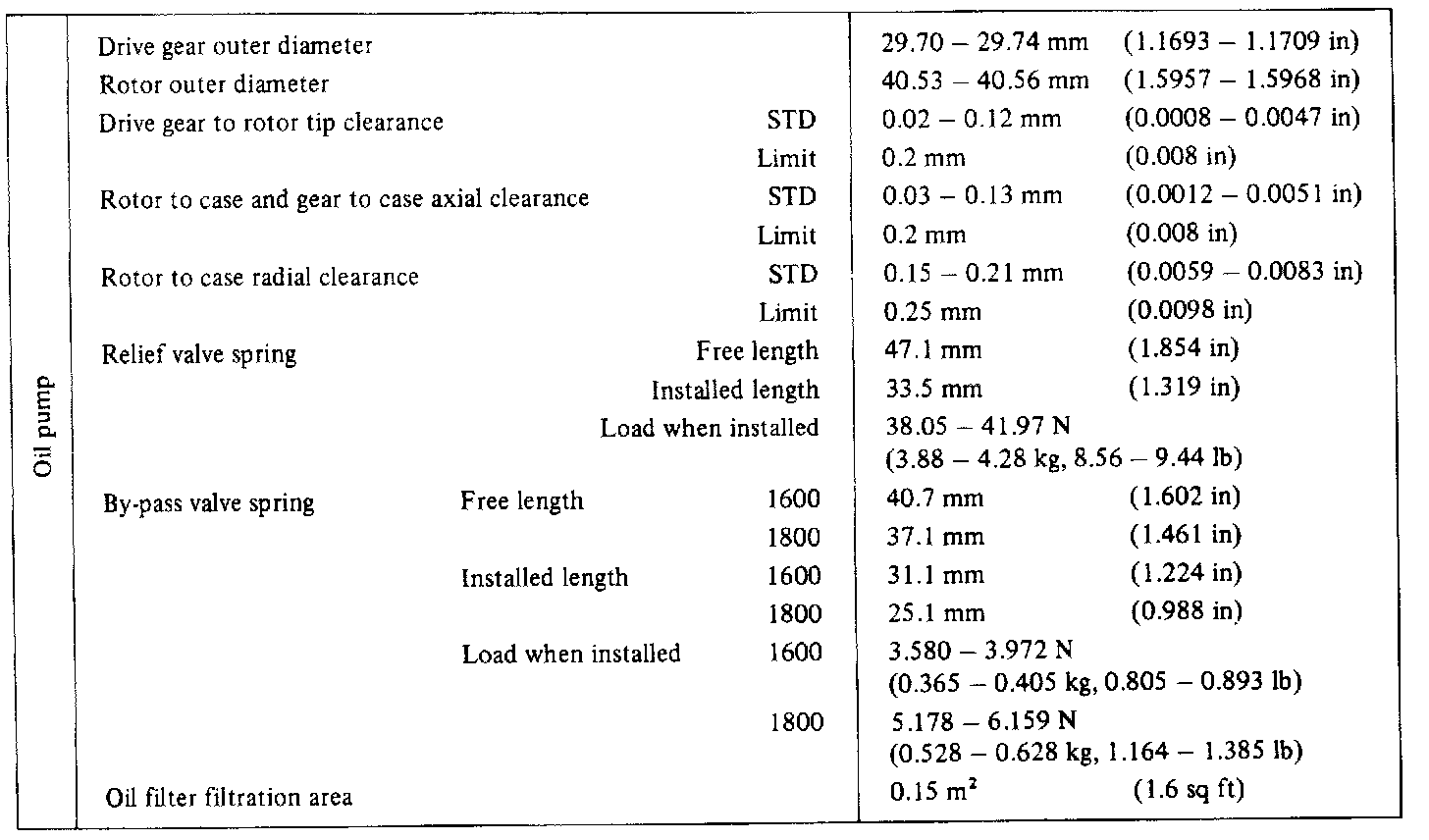

Oil Pump Data:





Service Specifications
