Torque Specifications

TORQUE SPECIFICATIONS

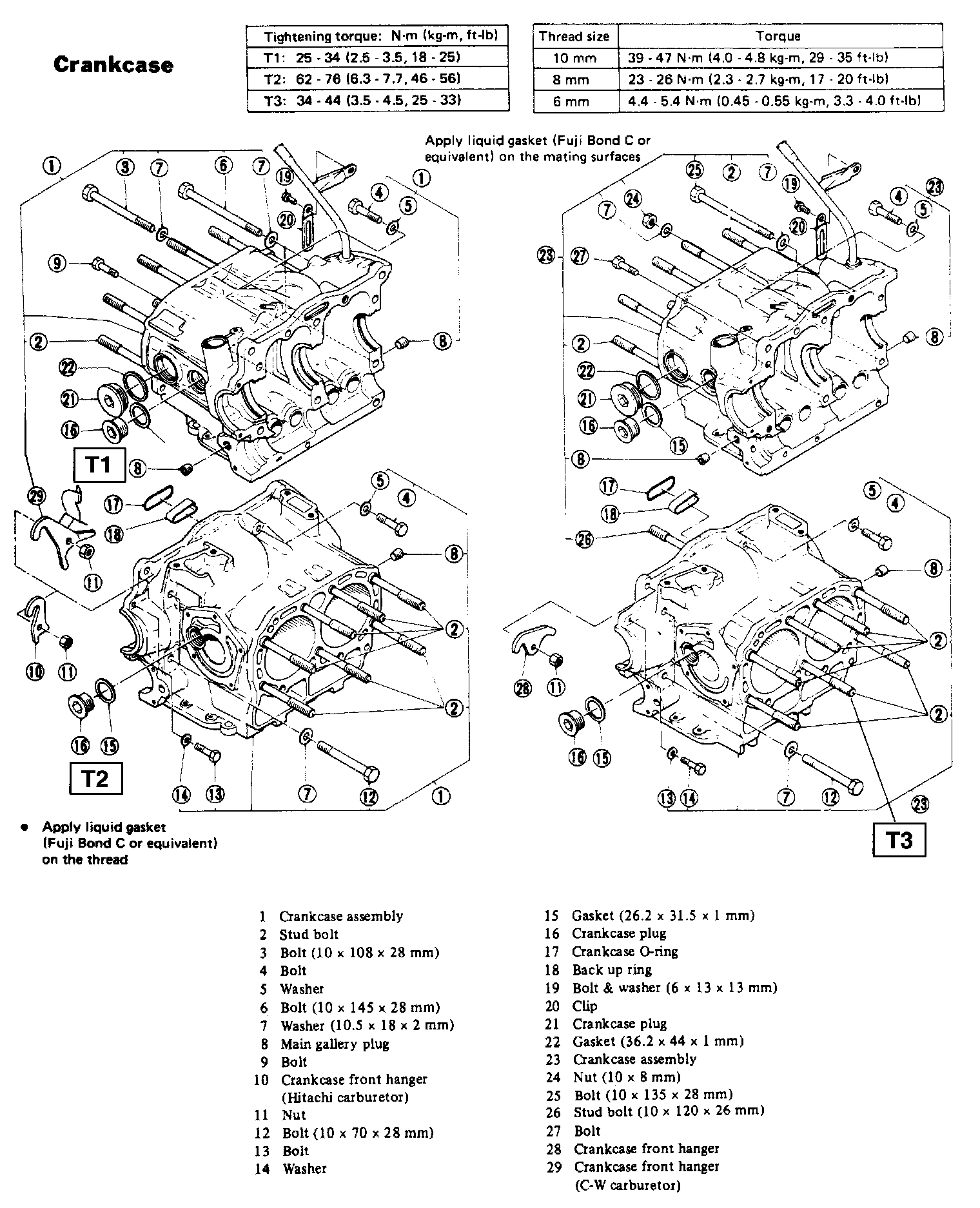

Crankcase

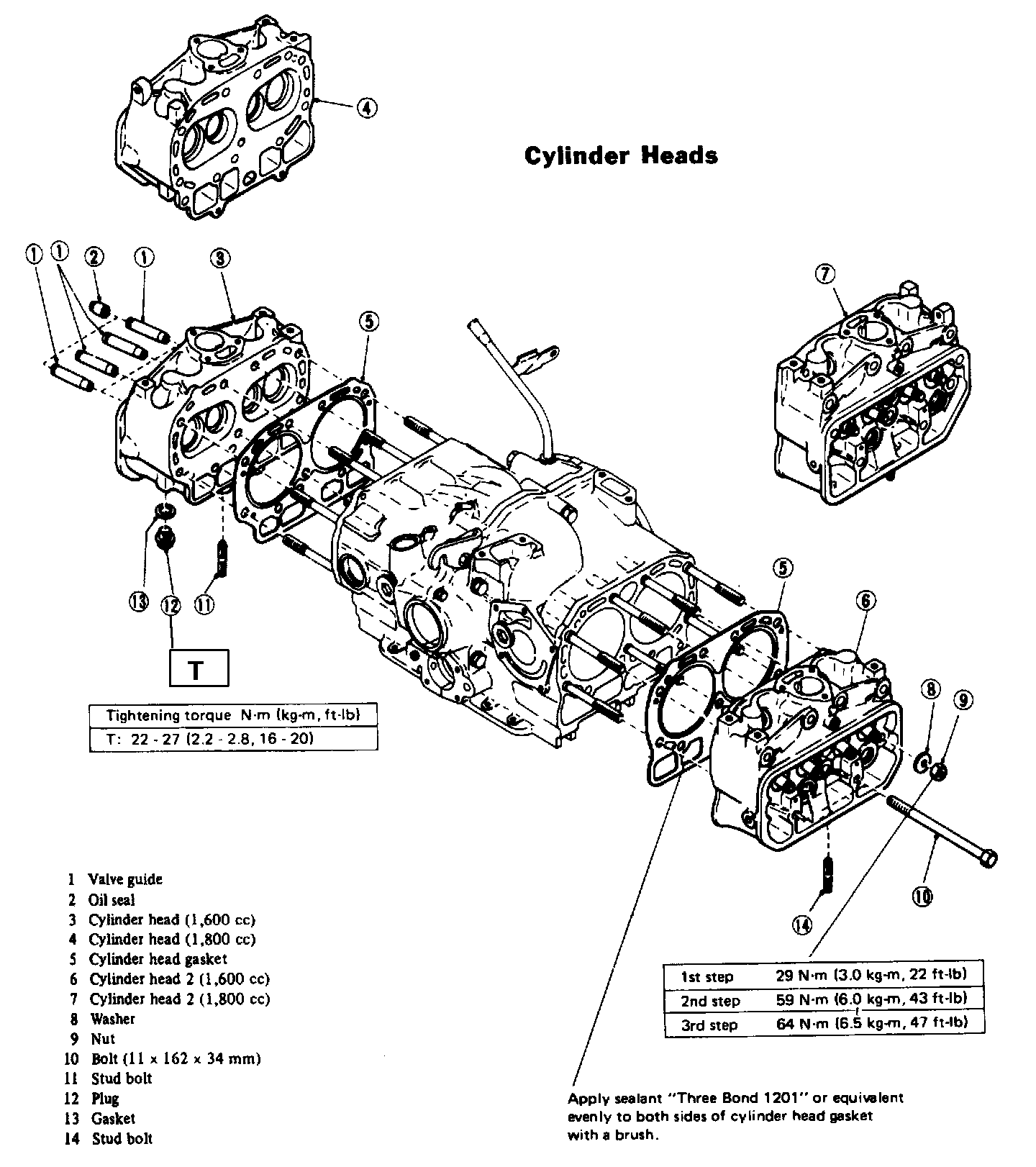

Cylinder Heads





Head Bolt Torque/Sequence

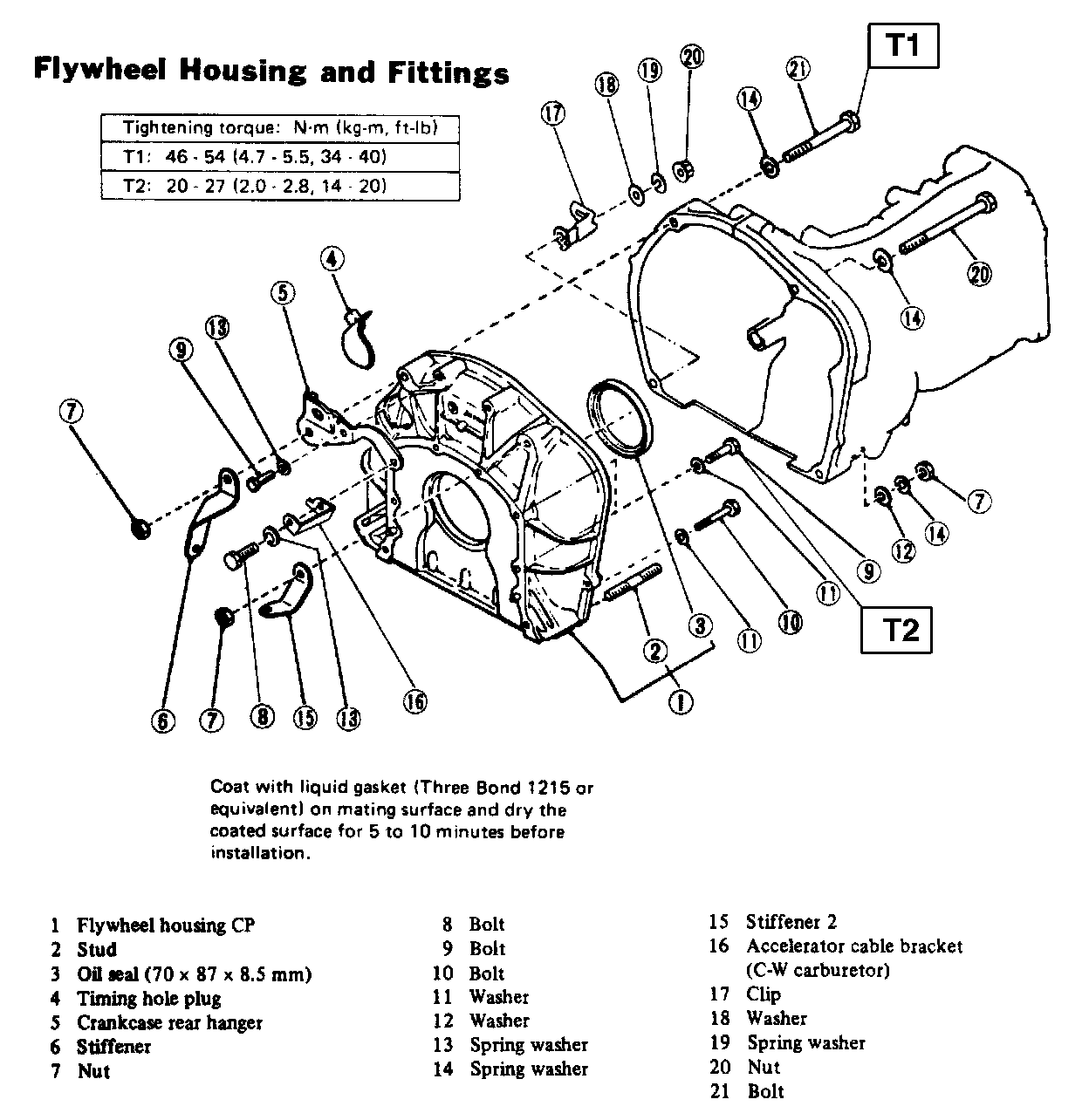

Flywheel Housing

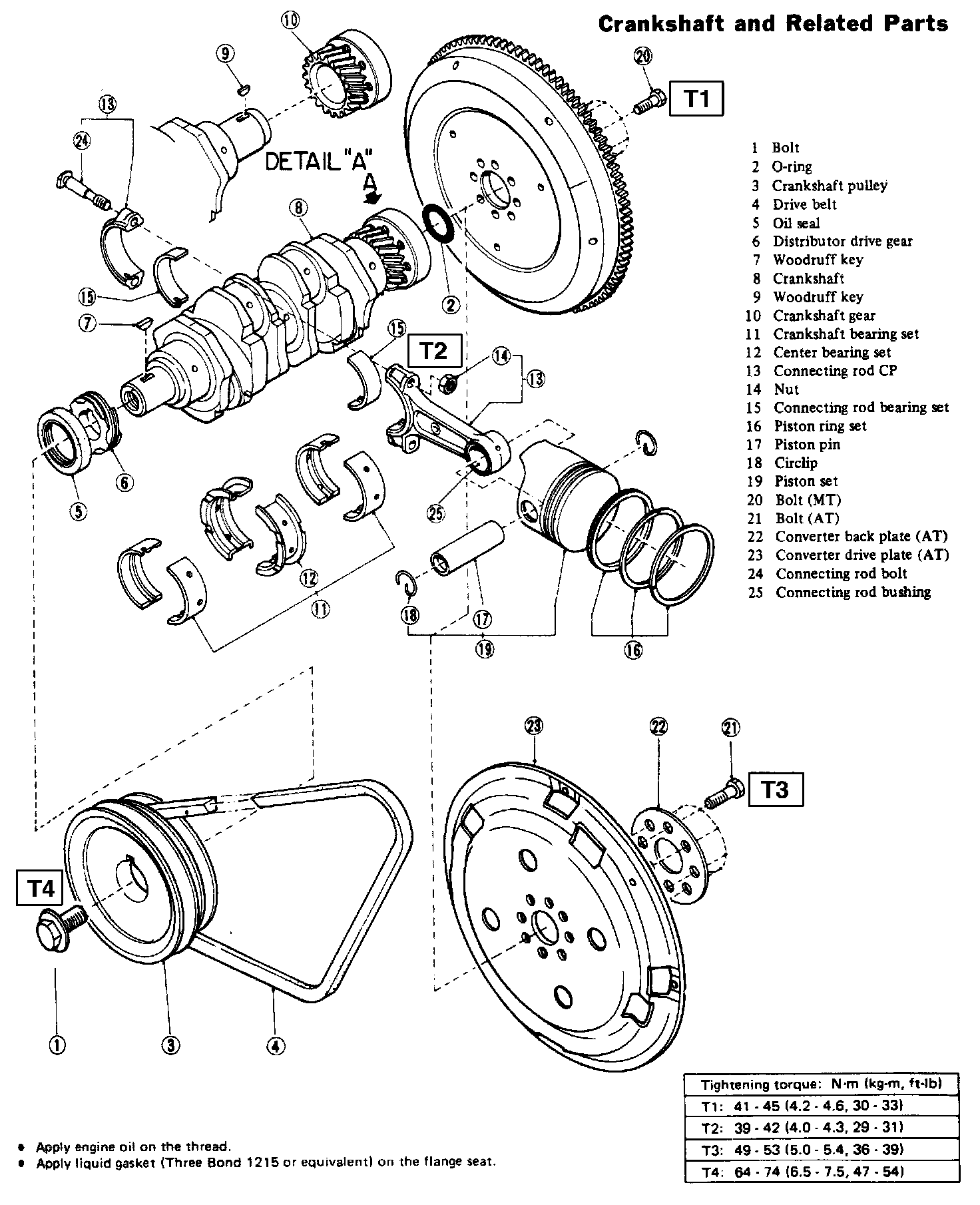

Crankshaft, Piston and Flywheel

Camshaft, Lifters & Valves:

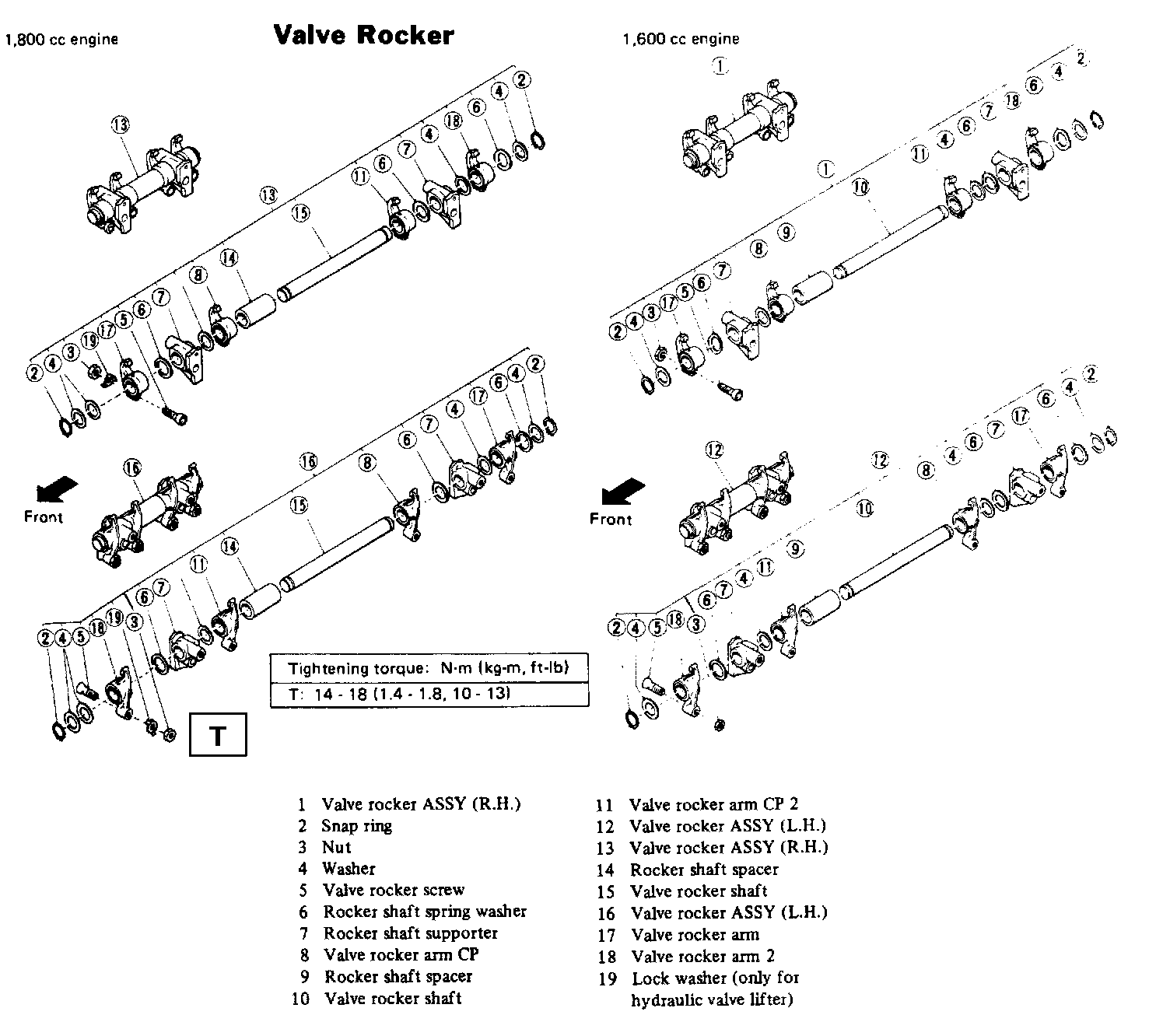

Valve Rocker:

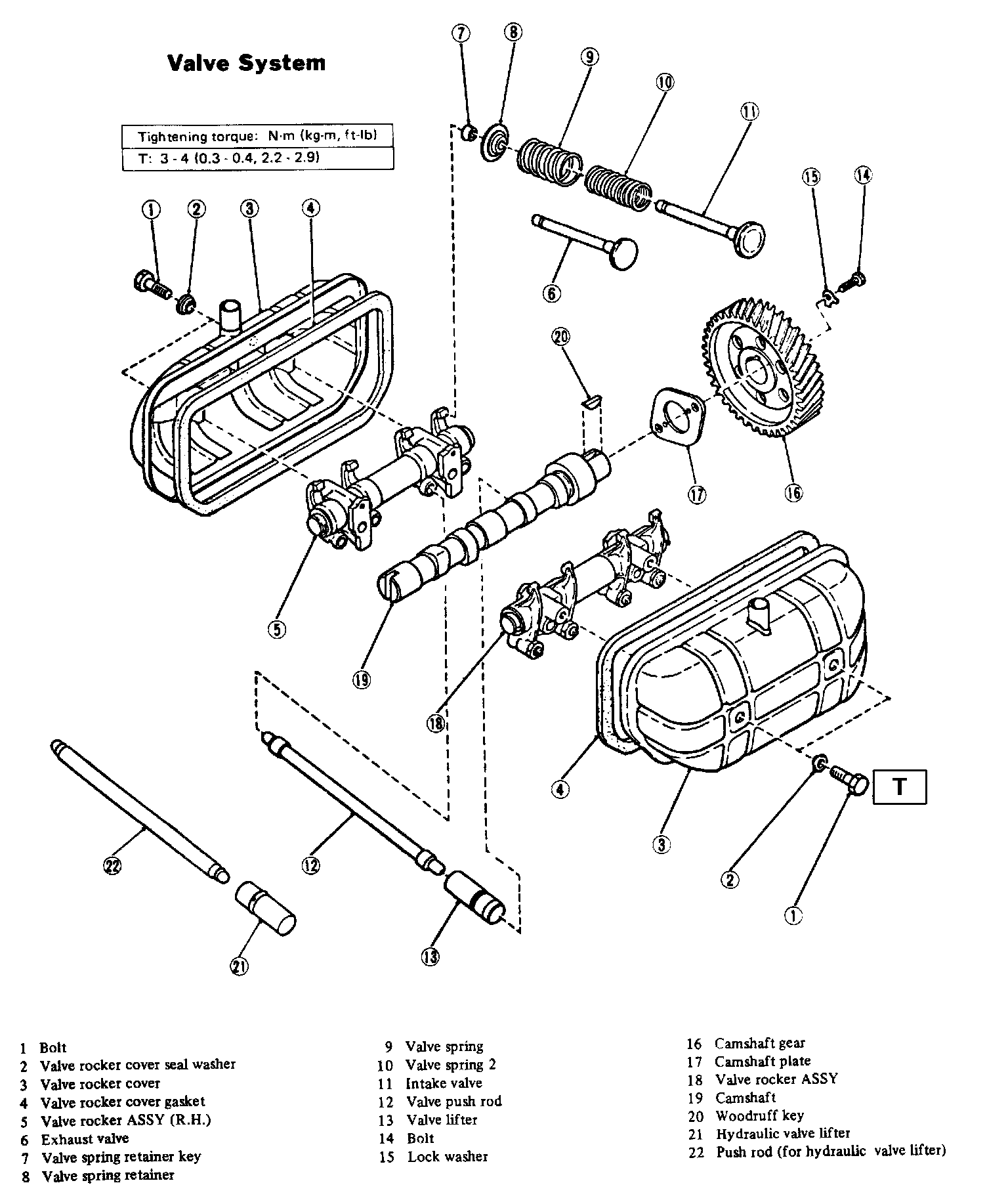

Valve System

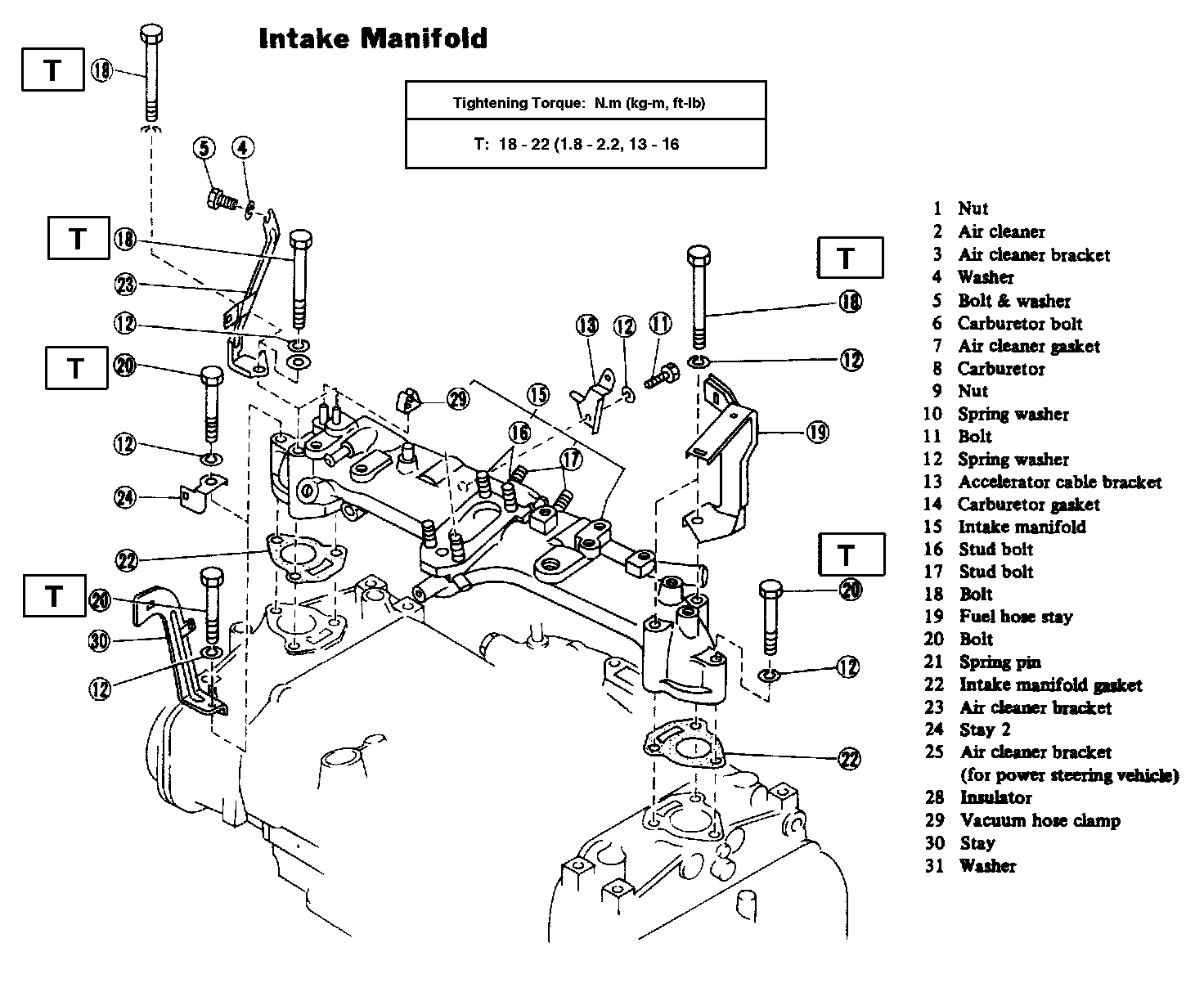

Intake Manifold

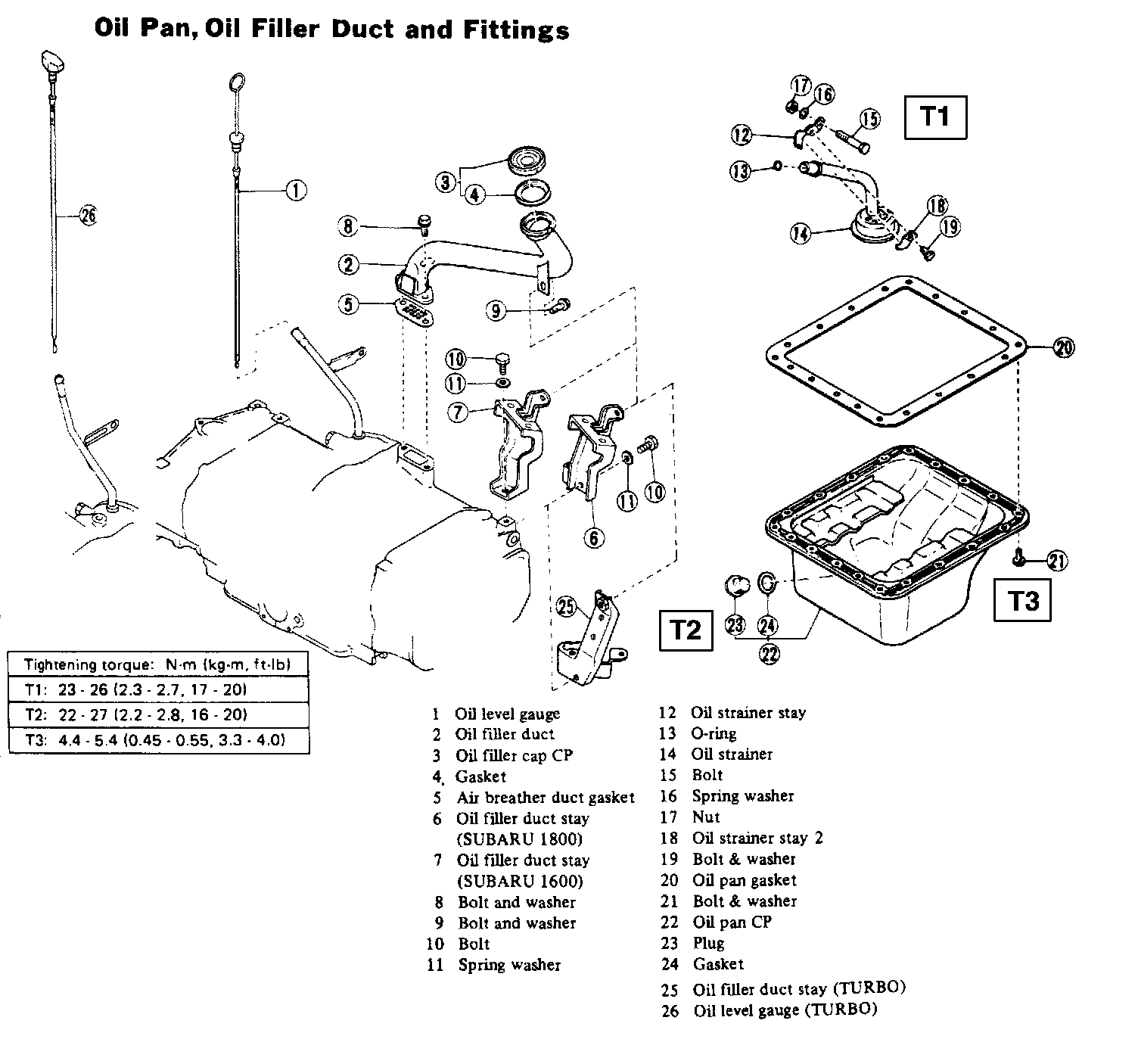

Oil Pan & Fittings:

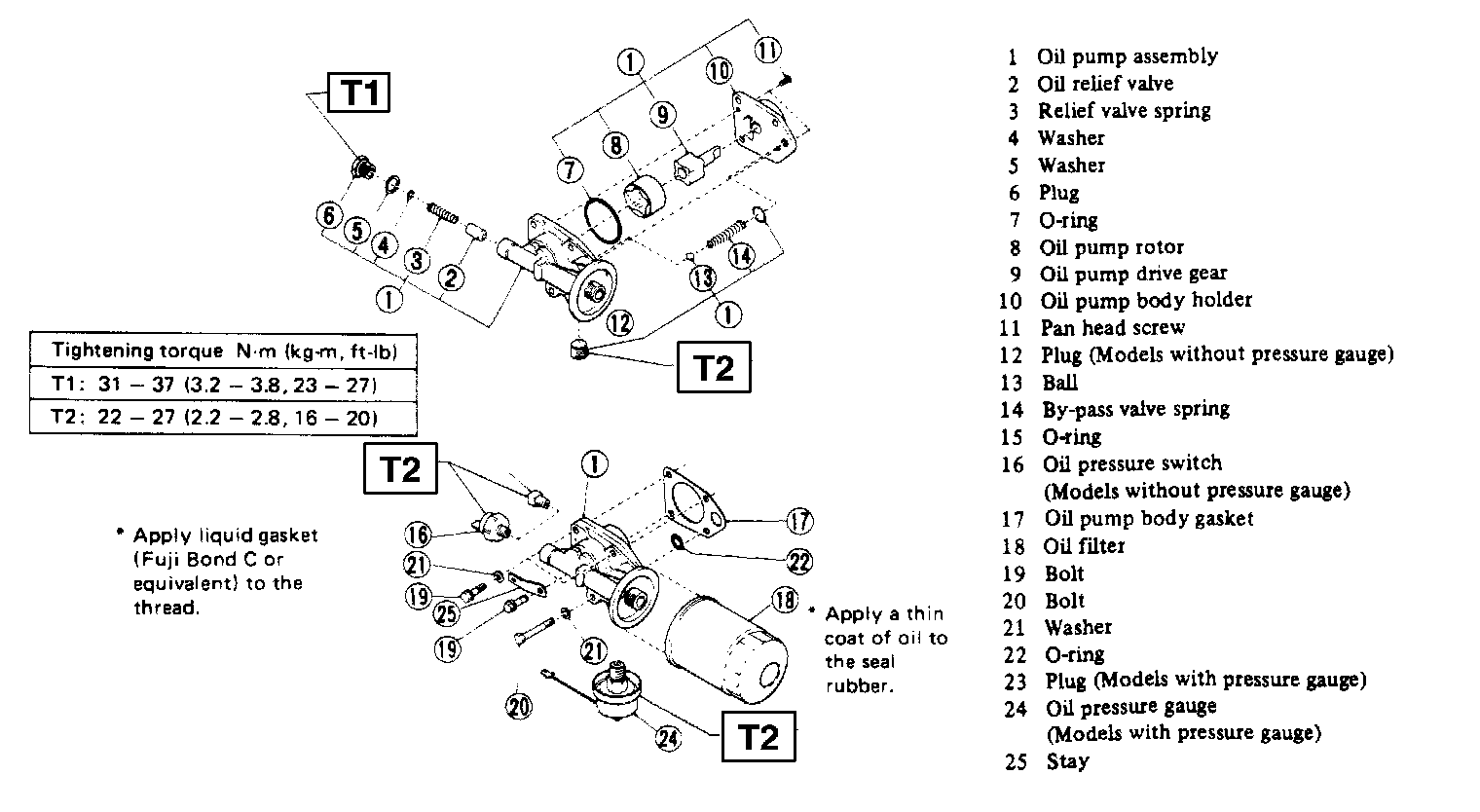

Oil Pump:





Lubrication System
