Control Unit Inspection

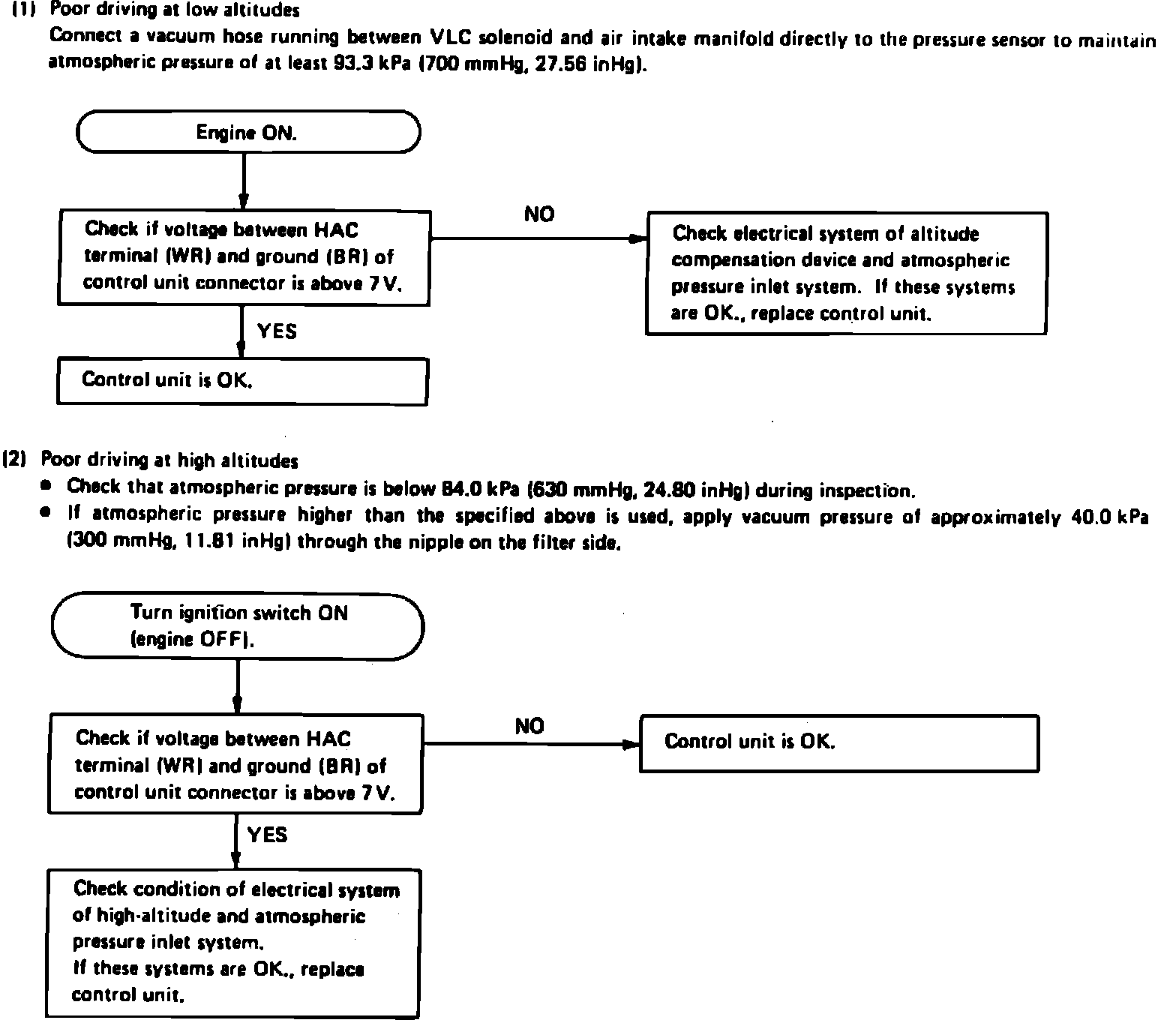

Fig. 57 Electronically controlled carburetor diagnostic chart. Control unit inspection.:
