Ignition Checks

Fig 1: Justy Ignition Control System Test - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

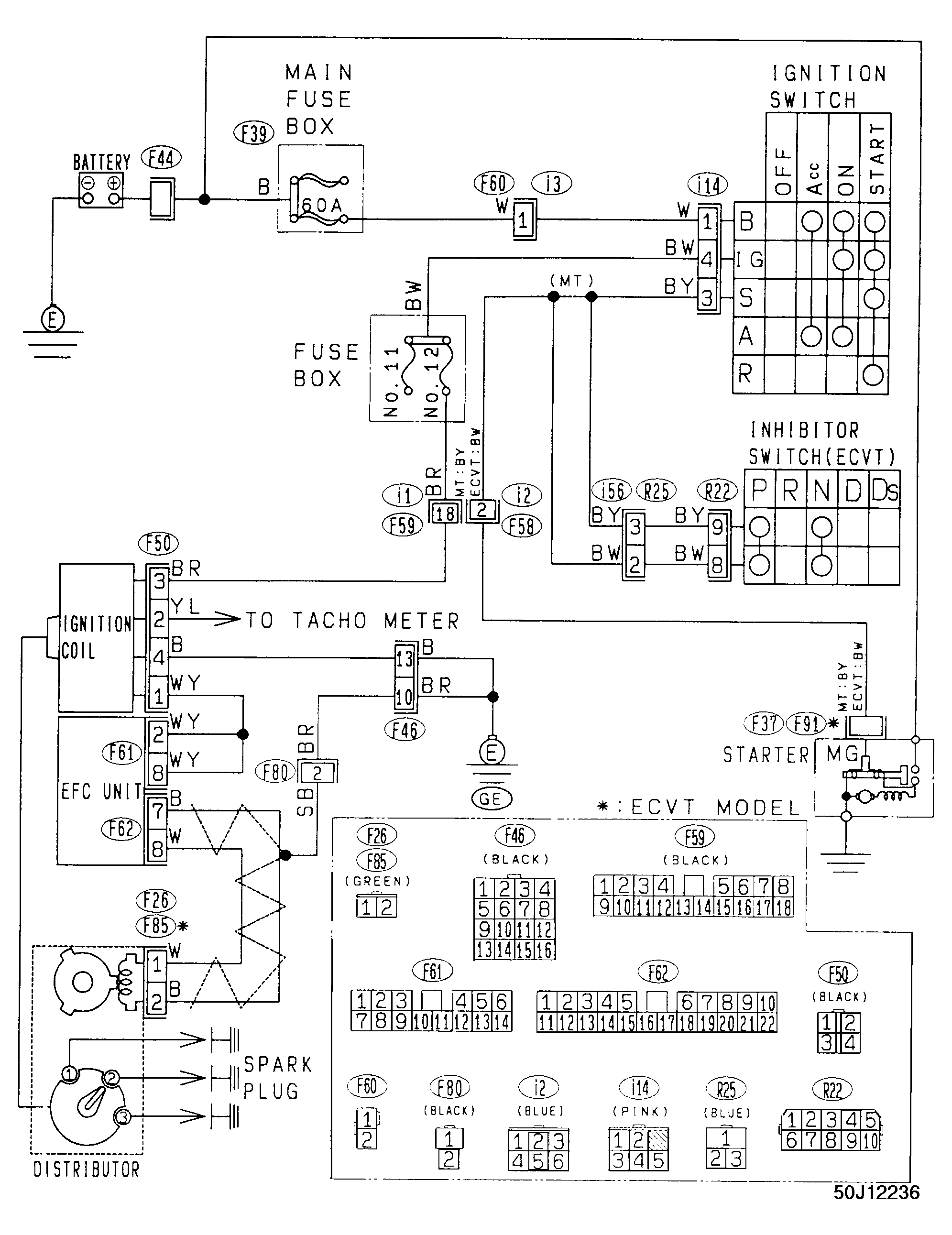

Fig 2: Justy Ignition Control System Test - Schematic

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Justy Ignition Control System Test - Flow Chart (1 of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Justy Ignition Control System Test - Flow Chart (2 of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Justy Ignition Control System Test - Flow Chart (3 of 3)

Courtesy of SUBARU OF AMERICA, INC.
