Code 12: Starter Switch

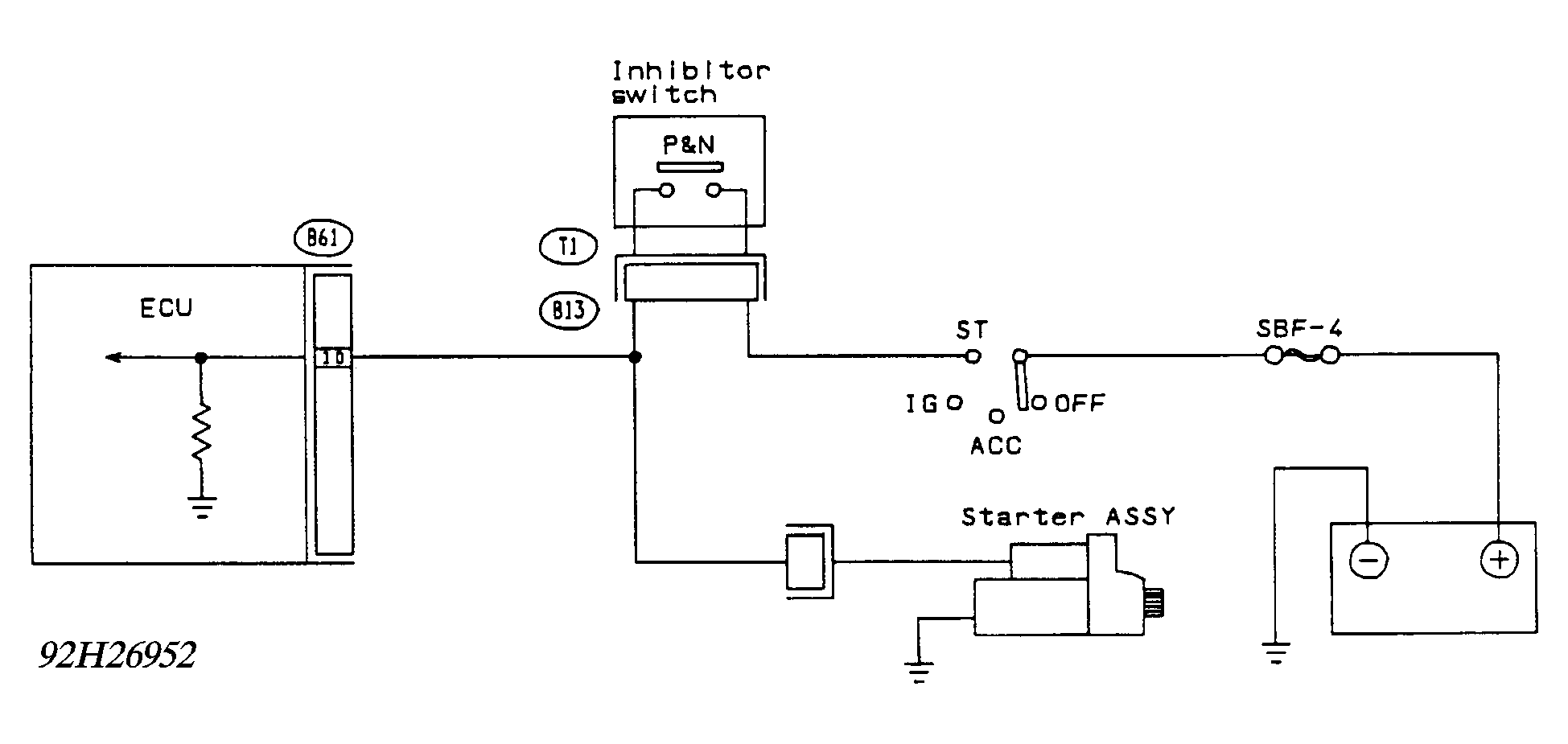

Fig 1: Schematic - Code 12, Starter Switch

G92H26952

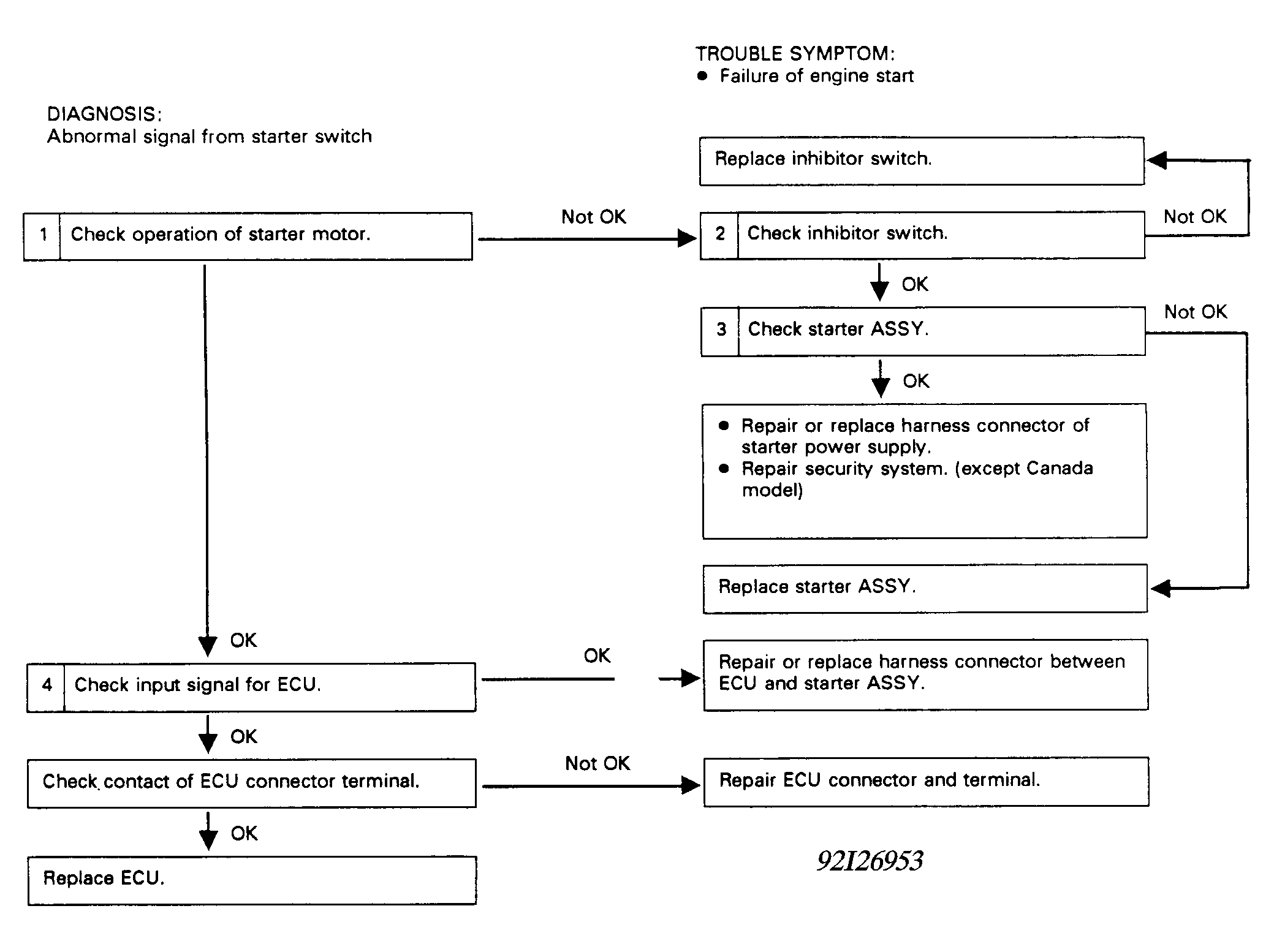

Fig 2: Flow Chart - Code 12, Starter Switch

G92I26953
