Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind center of dash. |
| Air Bag Control Unit | Under center of dash, on floor tunnel. |
| A/T Shift Lock Control Unit | Behind left side of dash, left of steering column. |
| Cruise Control Unit | Behind left side of dash. |
| Daytime Running Light Module | Behind right side of dash. |

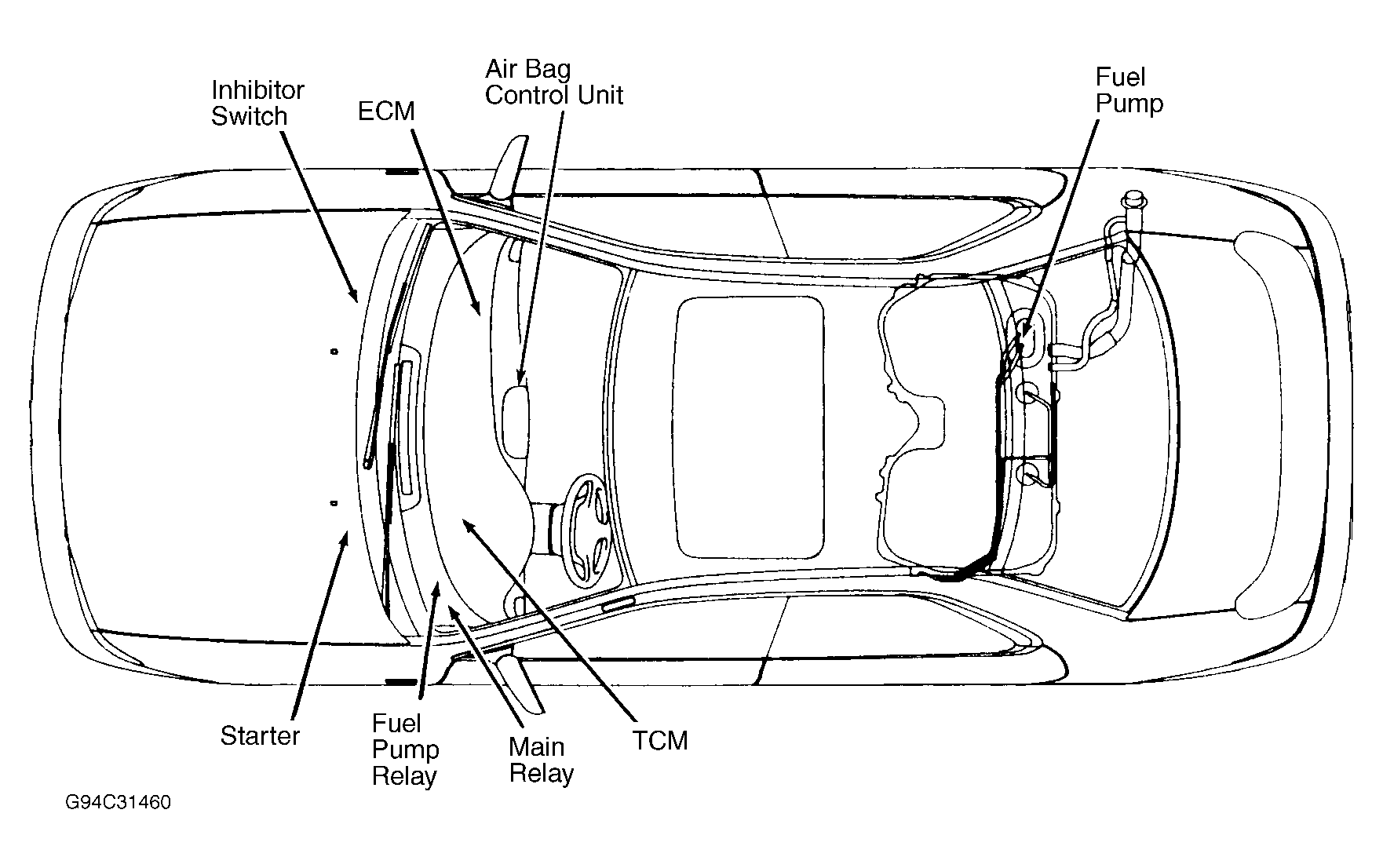

| Engine Control Module (ECM) | Behind center of dash. See Figure . |
| Illumination Control Unit | Behind center console. |
| Transmission Control Module (TCM) | Behind left side of dash, to left of steering column. See Figure . |
