Temperature Control Cable

Place temperature control switch to full cold and mode selector switch to MAX A/C position (REC position on heater control panel). Install control cable to lever. While pushing outer cable, secure control cable with clip. See Fig 1 .

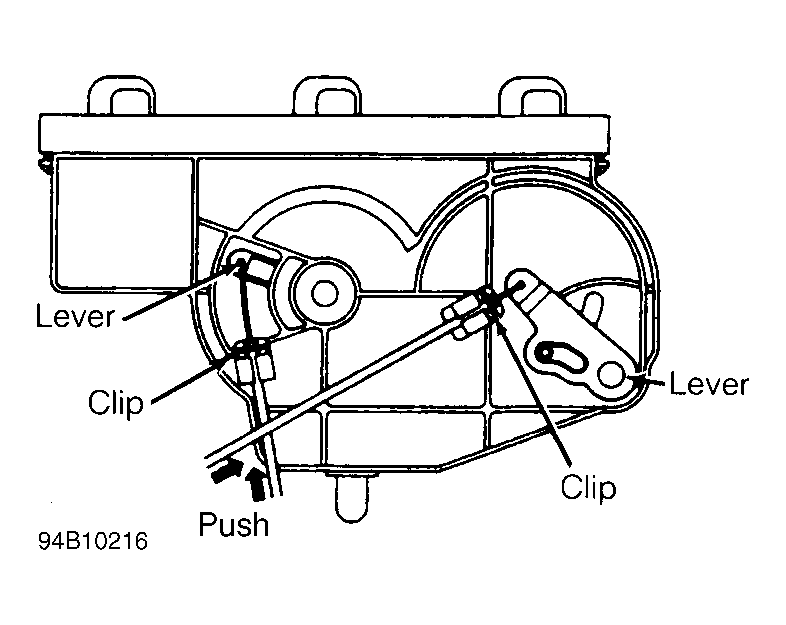

Fig 1: Adjusting Temperature Control Cable
G94B10216Courtesy of SUBARU OF AMERICA, INC.
