Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

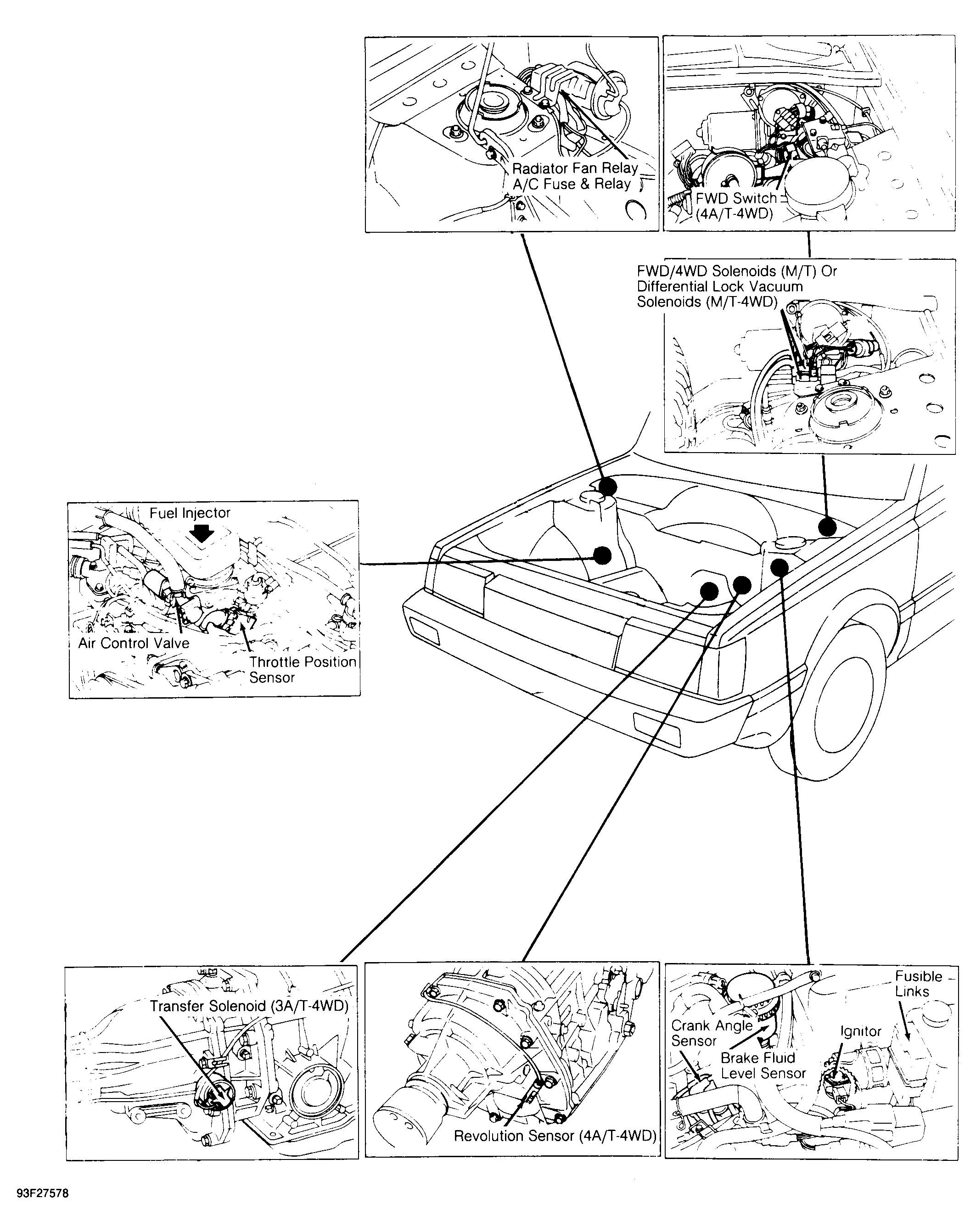

| A/C Fuse | Attached to rear of right strut tower, next to A/C relay. See Figure . |
| Fuse Block | In lower left instrument panel, above hood release handle. |
| Fusible Links | In front of left strut tower, near battery. See Figure . |
| Power Window Circuit Breaker | Under front passenger's seat, near power window control. |
