Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/T Control Unit (4A/T) | In trunk, on left rear wheelwell. |

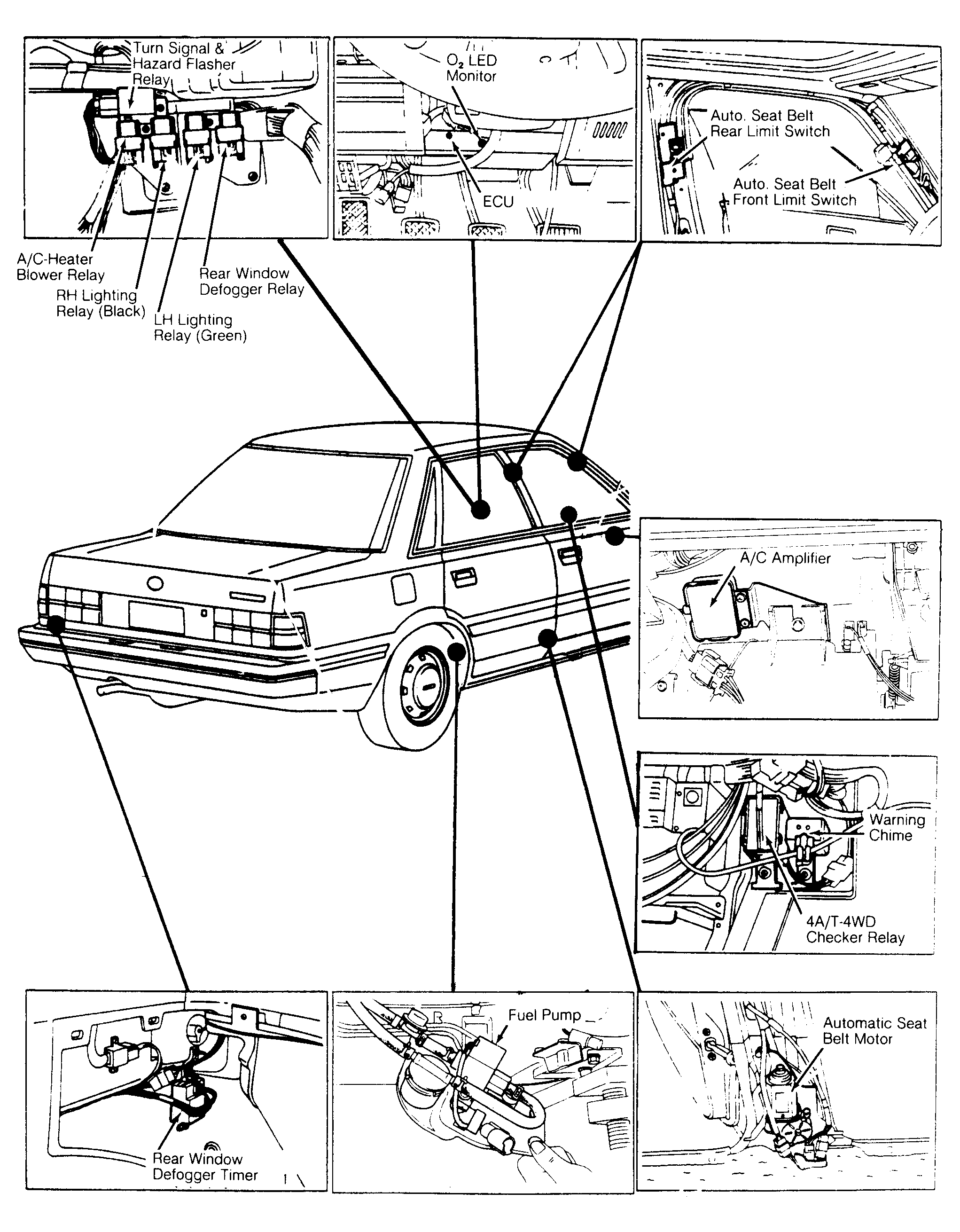

| Electronic Control Unit (ECU) | Below steering column, behind trim panel. See Figure . |
| Intermittent Wiper Control Unit | In center dash console, behind radio (Blue 8-pin connector). |
| Power Window Control Unit | Under front passenger's seat 8-pin connector). |
| Shift Lock Control Unit (A/T) | Behind left kick panel (Black connector). |
