BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|

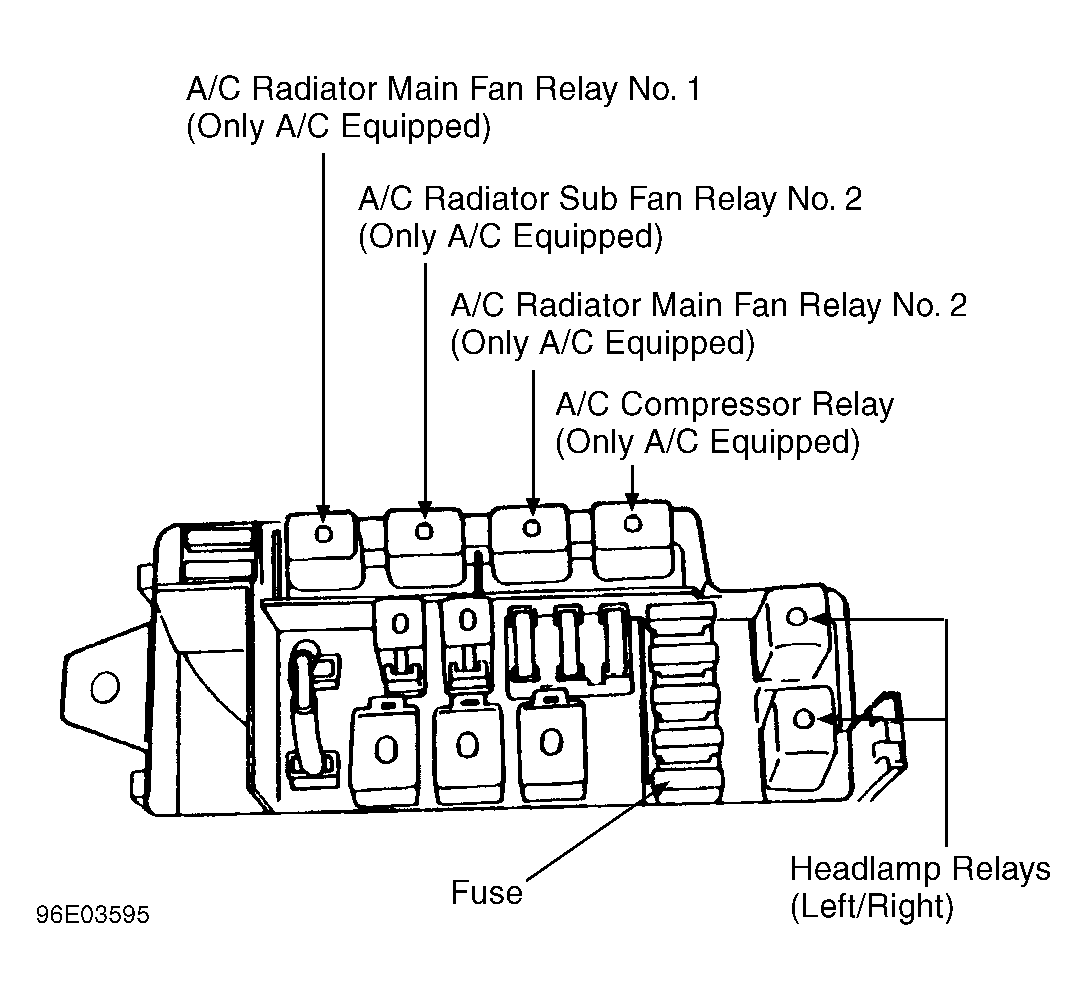

| A/C Compressor Relay | In fuse/relay box. See Figure. |
| A/C Radiator Main Fan Relay No. 1 | In fuse/relay box. See Figure. |
| A/C Radiator Main Fan Relay No. 2 | In fuse/relay box. See Figure. |
| A/C Radiator Sub Fan Relay No. 1 | In joint box. |
| A/C Radiator Sub Fan Relay No. 2 | In fuse/relay box. See Figure. |
| Blower Relay | In joint box. See Figure. |
| Daytime Running Lamp Control Relay | Behind right kick panel. |
| Daytime Running Lamp High-Beam Relay | Behind right kick panel. |
| Door Lock Timer | Behind right side of glove box. See Figure. |
| Front Fog Lamp Relay | In joint box. |
| Fuel Pump Relay | In joint box. |
| Headlamp Relay (Left) | In fuse/relay box. See Figure. |
| Headlamp Relay (Right) | In fuse/relay box. See Figure. |
| Horn Relay | In joint box. See Figure. |
| Main Fan Relay | In joint box. See Figure. |
| Main Relay | In joint box. |
| Power Window & Sunroof Relay | Behind dash, right of steering column. See Figure. |
| Rear Defogger Relay | In joint box. See Figure. |
| Rear Power Supply Relay | Behind right kick panel. |
| Seat Belt Timer | Behind dash, left of steering column. See Figure. |
| Security Headlamp Alarm Relay | Behind dash, above joint box. |
| Security Interrupt Relay | Behind dash, above joint box. |
| Starter Interlock Relay (M/T) | Behind dash, left of steering column. |
| Sub Fan Relay (A/C) | In joint box. |
| Tail & Illumination Relay | In joint box. See Figure. |
| TCS Motor Relay | Right front corner of engine compartment. |
| TCS Valve Relay | Right front corner of engine compartment. |
