Warning Light Circuit Testing: Notes
NOTE:

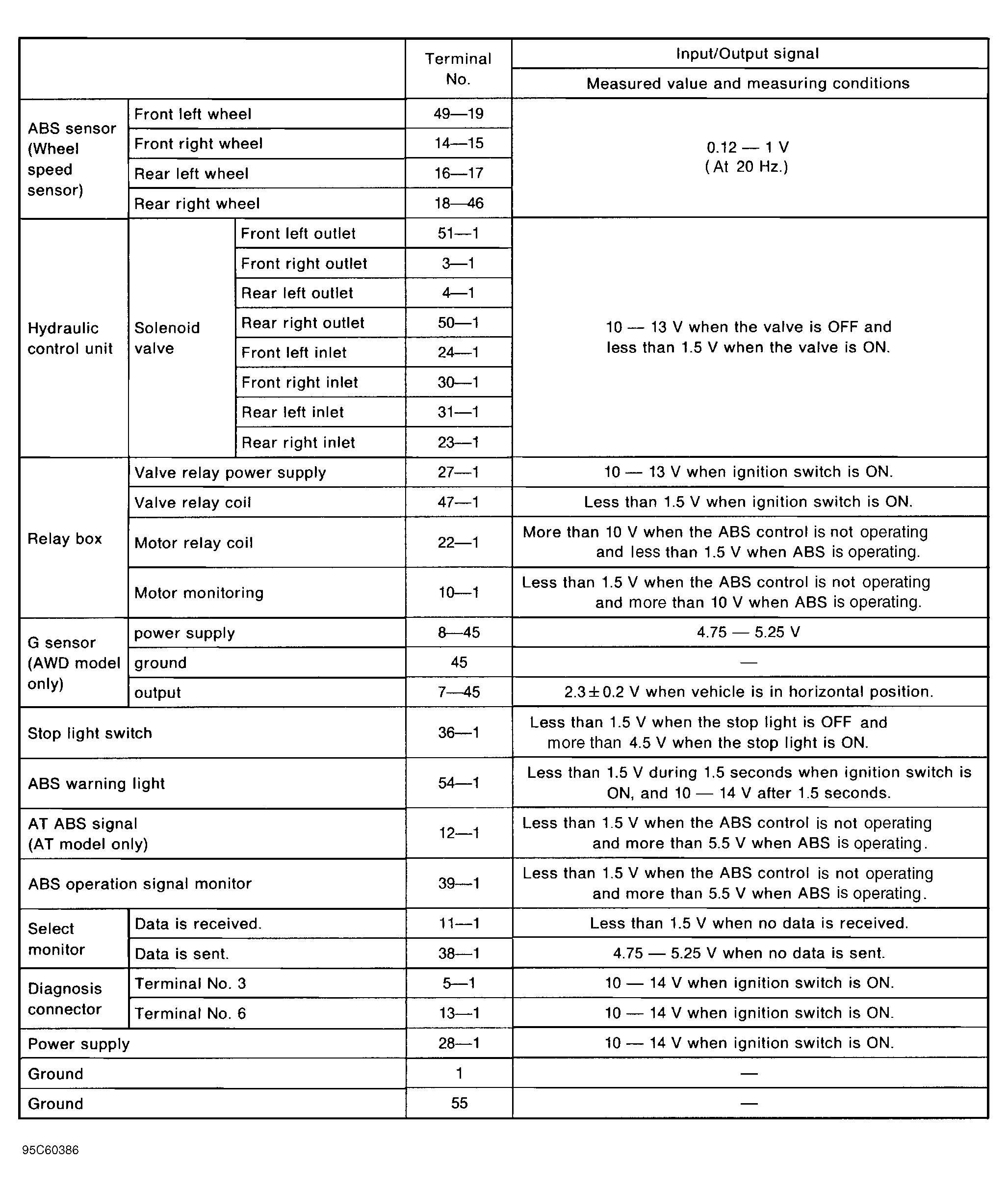

For additional voltage specifications, see ABS control unit pin voltage chart. See Fig 1. To identify ABS control unit terminals, see Fig 2.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
