Main/Sub Fan Control

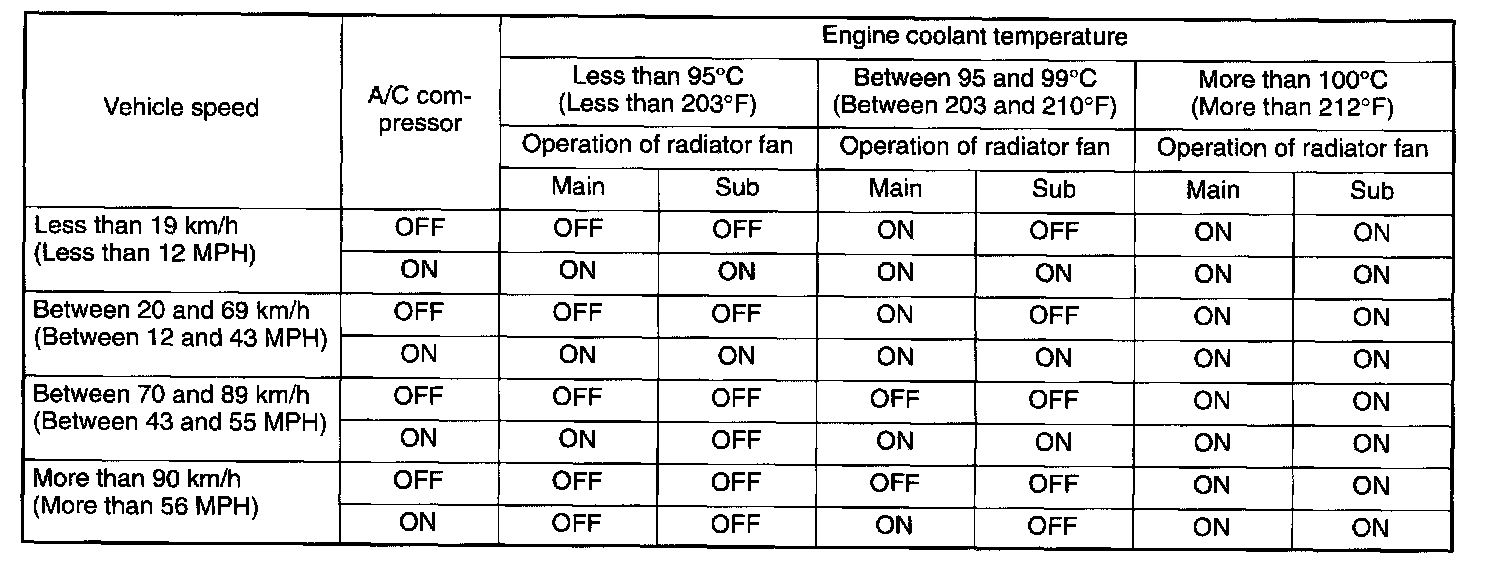

The main fan and sub fan are switch turn ON and OFF according to the operating modes shown in the table.
