Main Relay (Computer/Fuel System): Service and Repair

MAIN RELAY
A: REMOVAL AND INSTALLATION

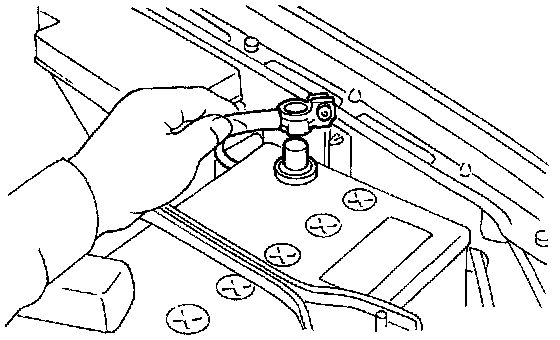

1) Disconnect battery ground cable.

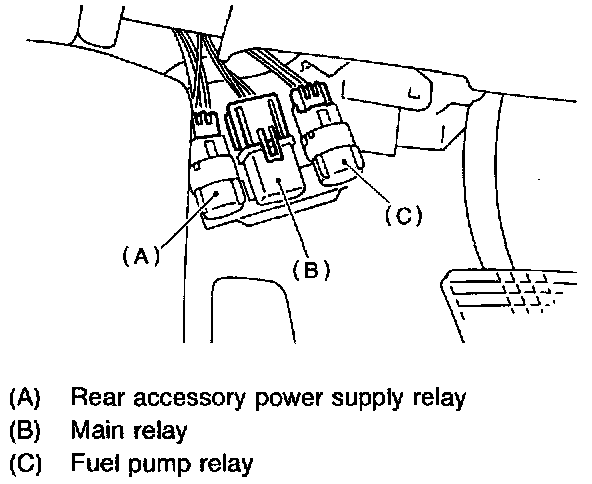

2) Remove bolt which holds bracket of main relay and fuel pump relay.





3) Disconnect connectors from relays.

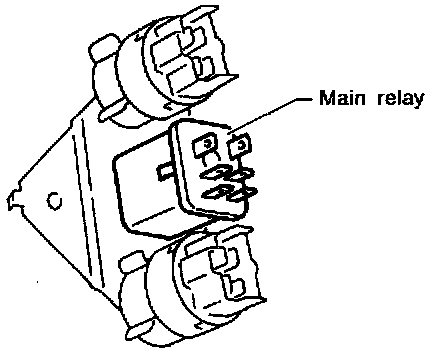

4) Remove main relay from mounting bracket.
5) Installation is in the reverse order of removal.
