RHD Model

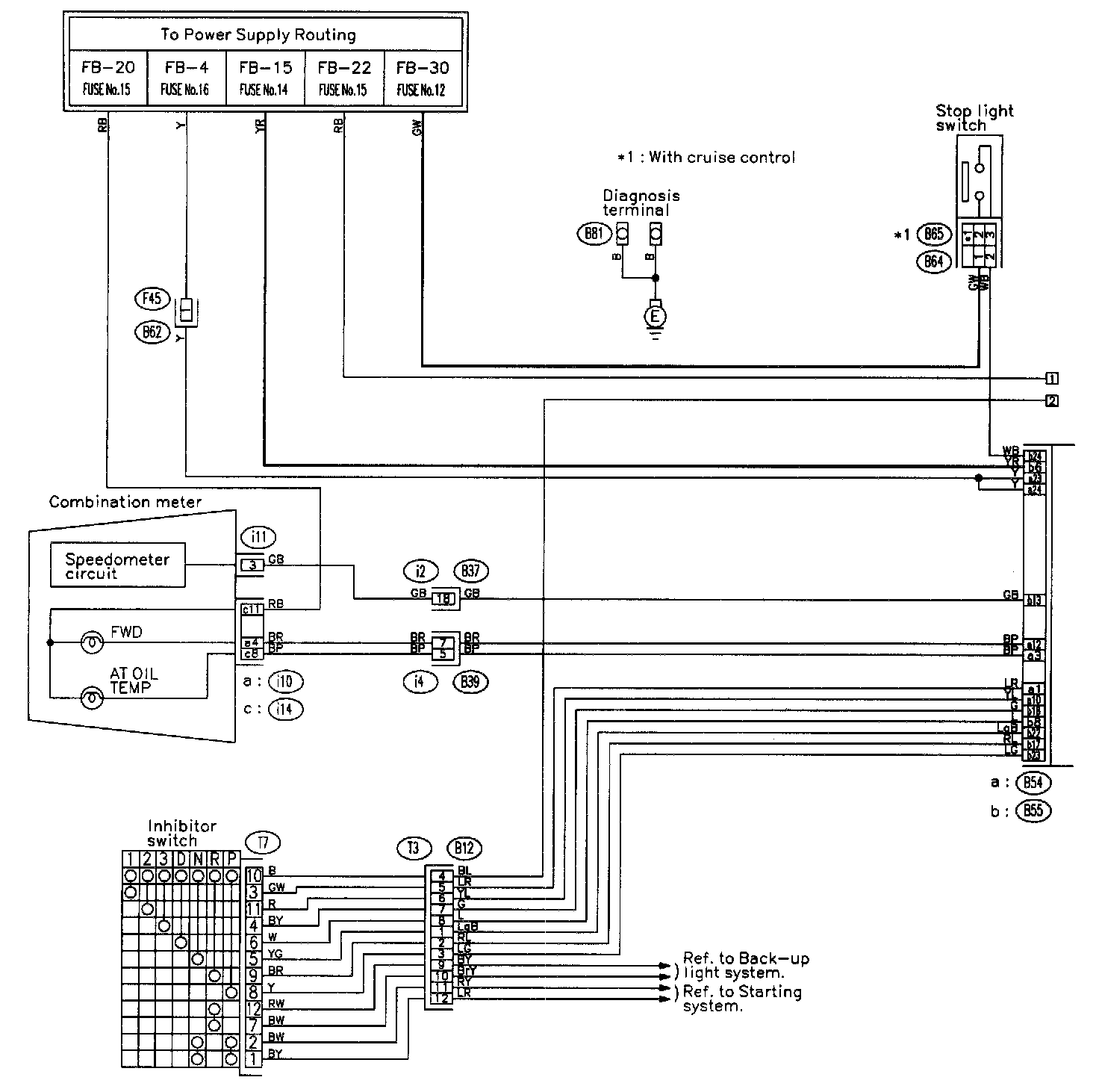

Part 1 Of 2:

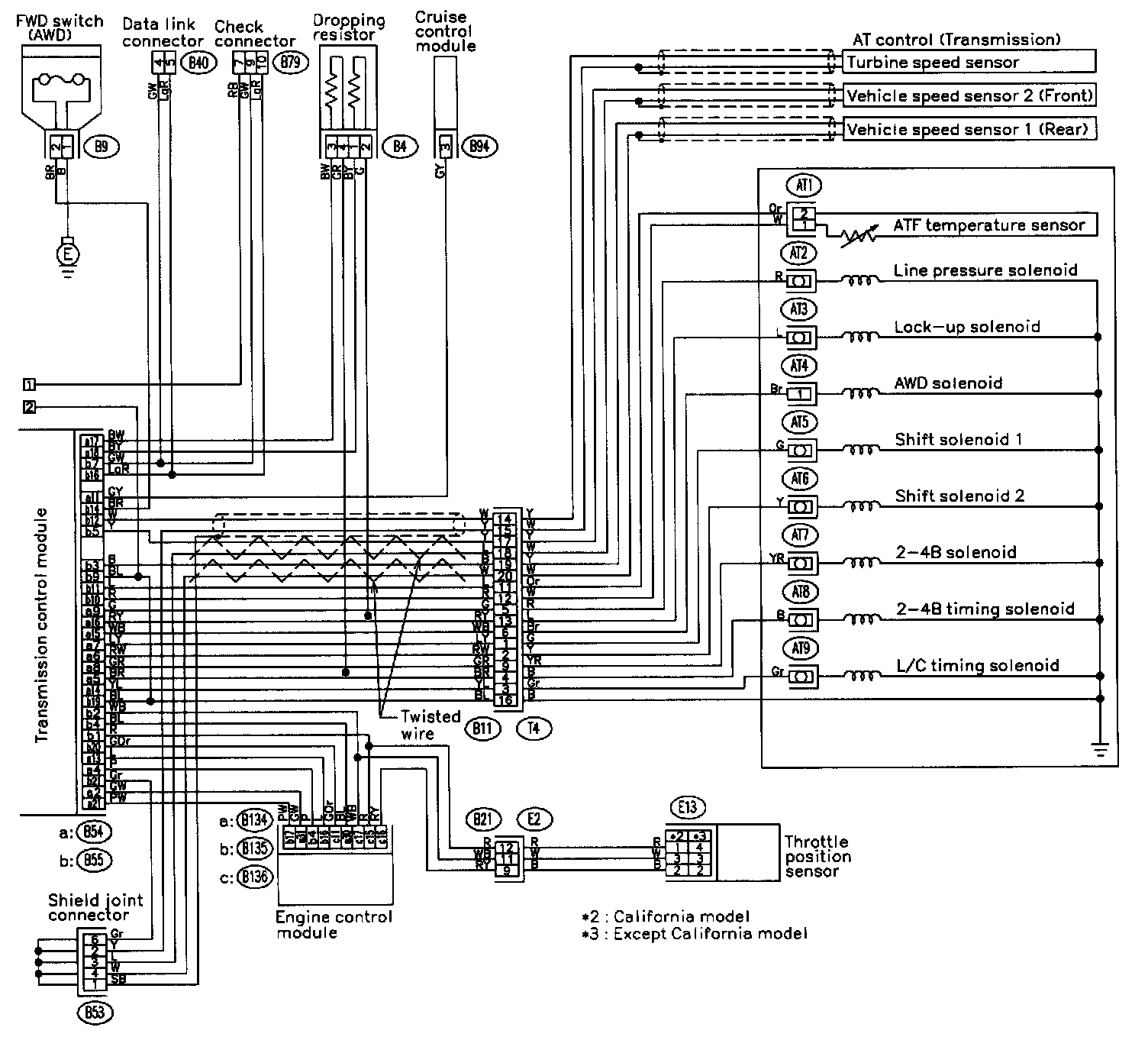

Part 2 Of 2:




Circuit Diagrams

Part 1 Of 2:




Part 2 Of 2:




Circuit Connectors
