No Trouble Code - on Select Monitor Display, Warning Light on.

DIAGNOSIS:
- ABS warning light circuit is shorted.

TROUBLE SYMPTOM:
- ABS warning light remains on.
- NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

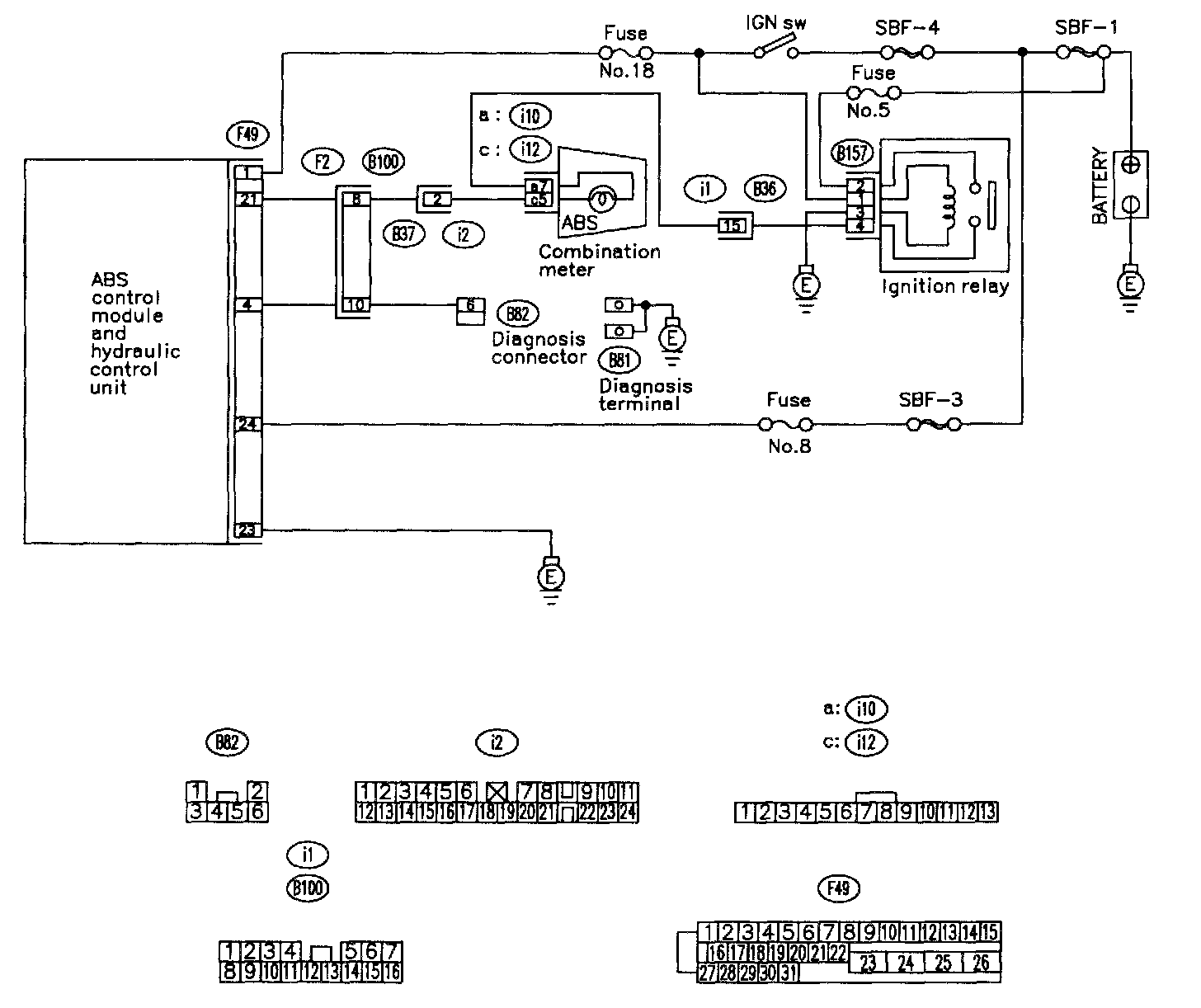

WIRING DIAGRAM

10D1:

10D2:

10D3:

10D4:

10D5:

10D6:

INSPECTION PROCEDURES
