Cruise Control Module: Service and Repair

CRUISE CONTROL MODULE

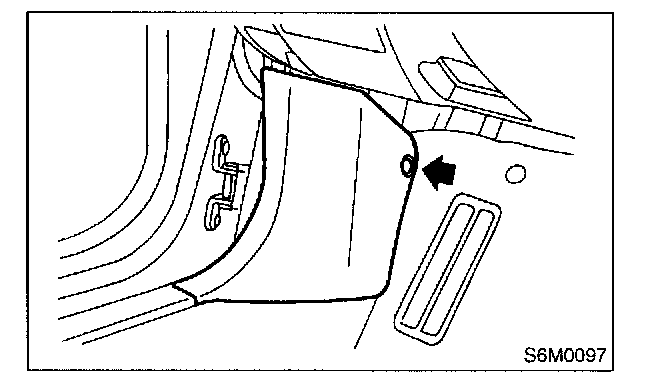

1. Remove front pillar lower trim.
2. Disconnect connector from cruise control module.

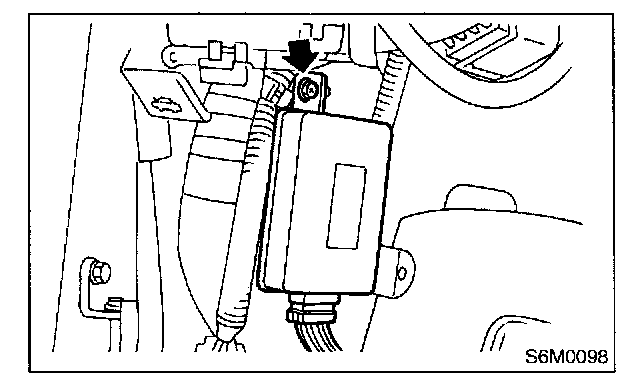

3. Remove bolt, then remove cruise control module.
4. Installation is in the reverse order of removal.
