Fuel Cut Control Unit: Service and Repair

1. Remove fuel tank.

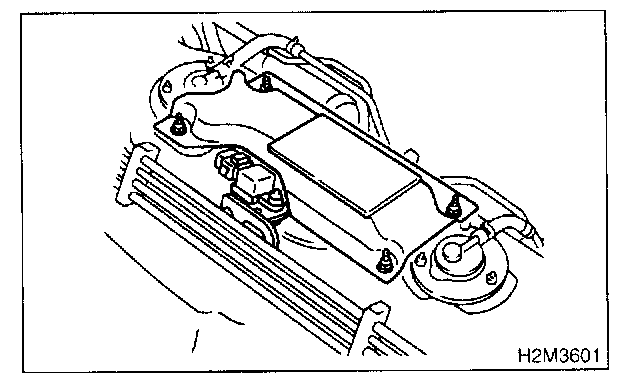

2. Remove protect cover.

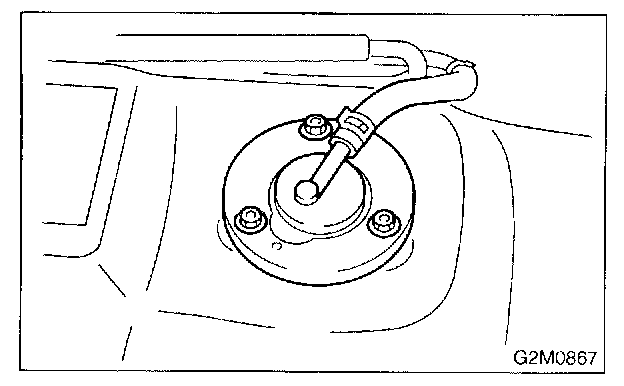

3. Disconnect evaporation hose from fuel cut valve.

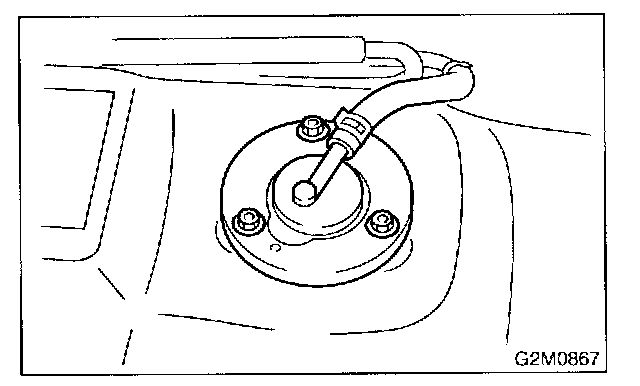

4. Remove fuel cut valve.




5. Installation is in the reverse order of removal procedure.

Tightening torque:
4.4 ± 1.5 N.m (0.45 ± 0.15 kg.m, 33 ± 1.1 ft.lb)
