Reverse Check Mechanism: Operation: Notes

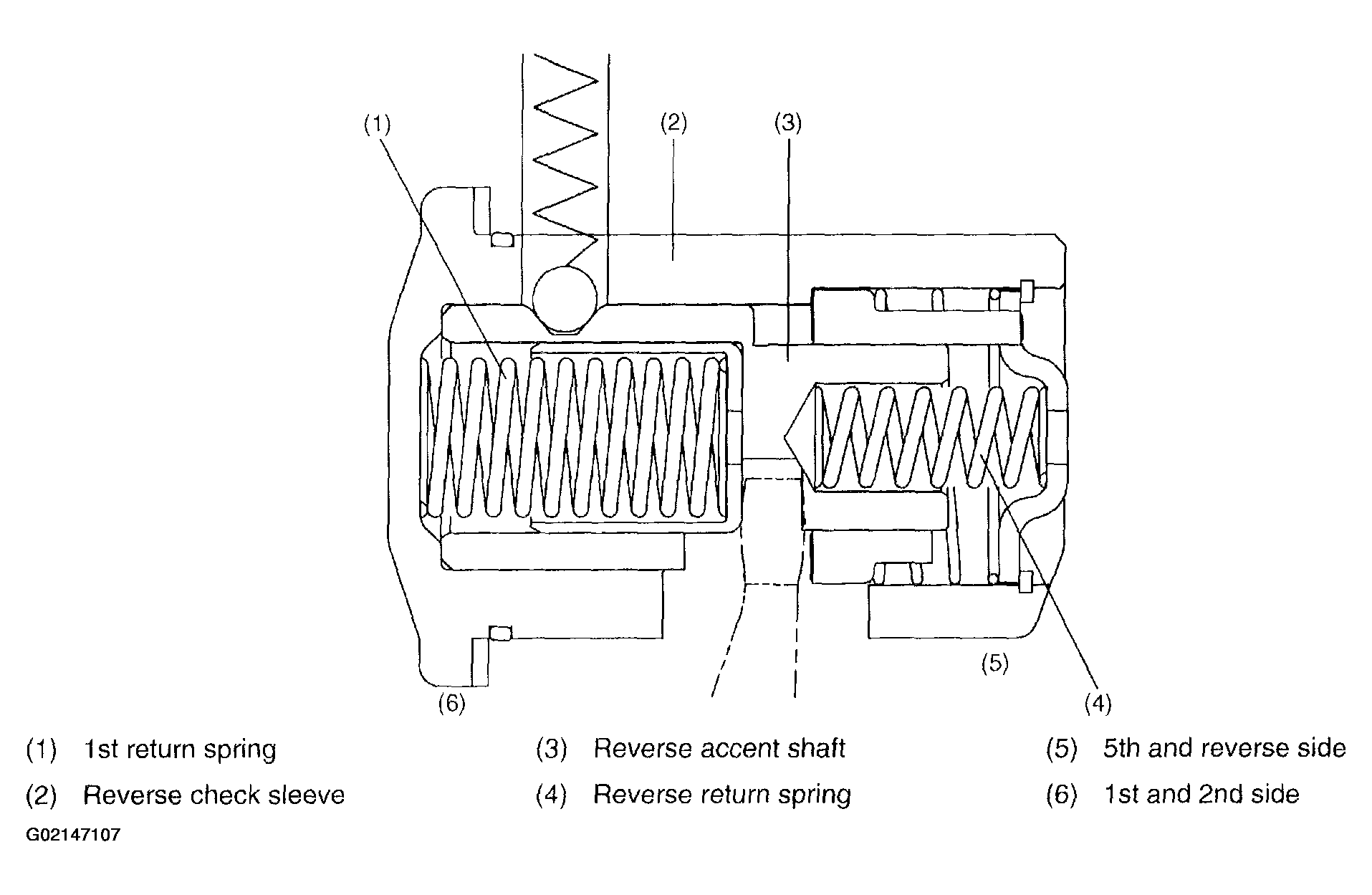

The reverse check sleeve and reverse accent shaft have a notch, and the selector arm is placed between the notches. The position of the selector arm shown is the neutral position (hereafter referred to as (N) position). The point where the selector arm stops when moved to the left is the 1st and 2nd position. On the contrary, the point where the selector arm stops when moved to the right is the 5th and reverse position.
The selector arm is pushed back to the (N) position by the 1st return spring from the 1st and 2nd side, and by the reverse return spring from the 5th and reverse side.
