Control Module Power Supply and Ground Line

B: CONTROL MODULE POWER SUPPLY AND GROUND LINE

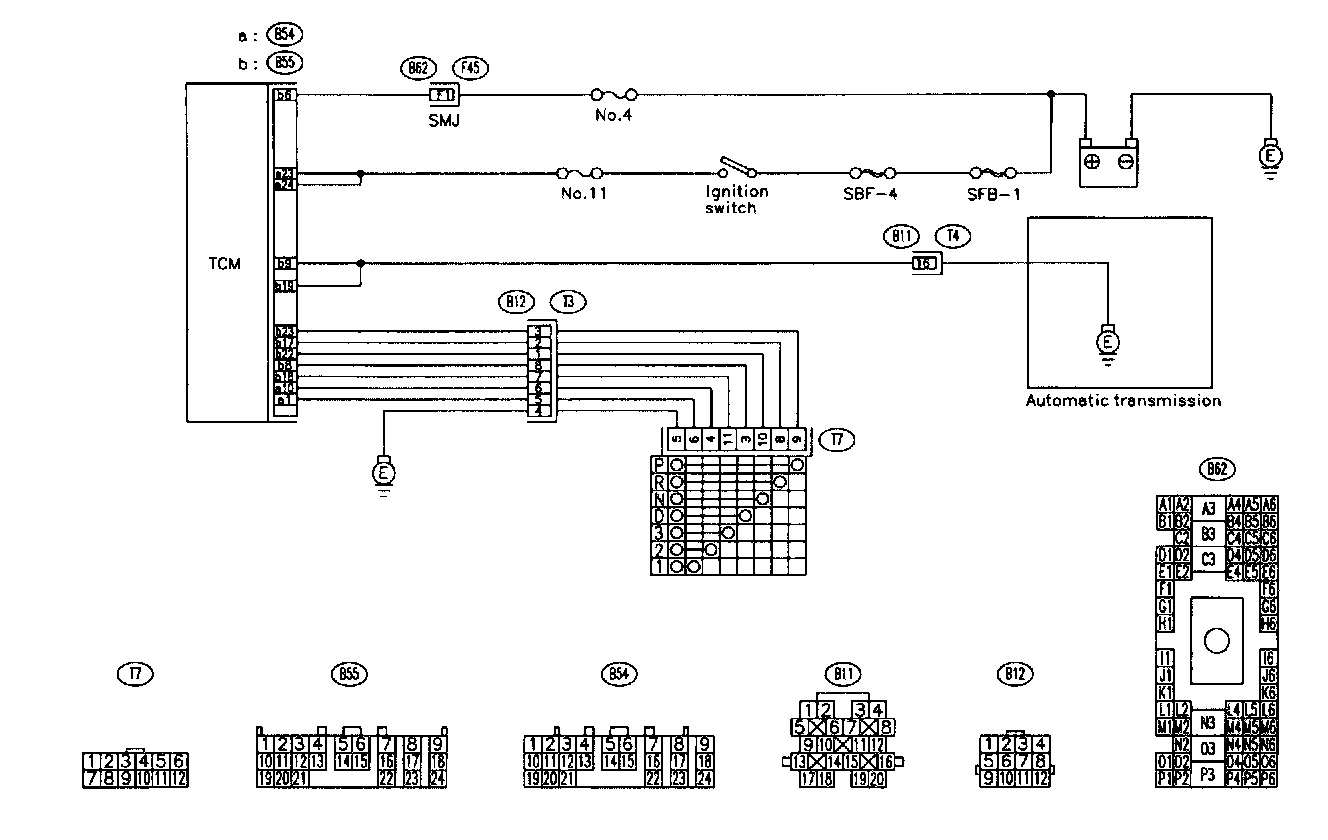

WIRING DIAGRAM

TEST STEPS:

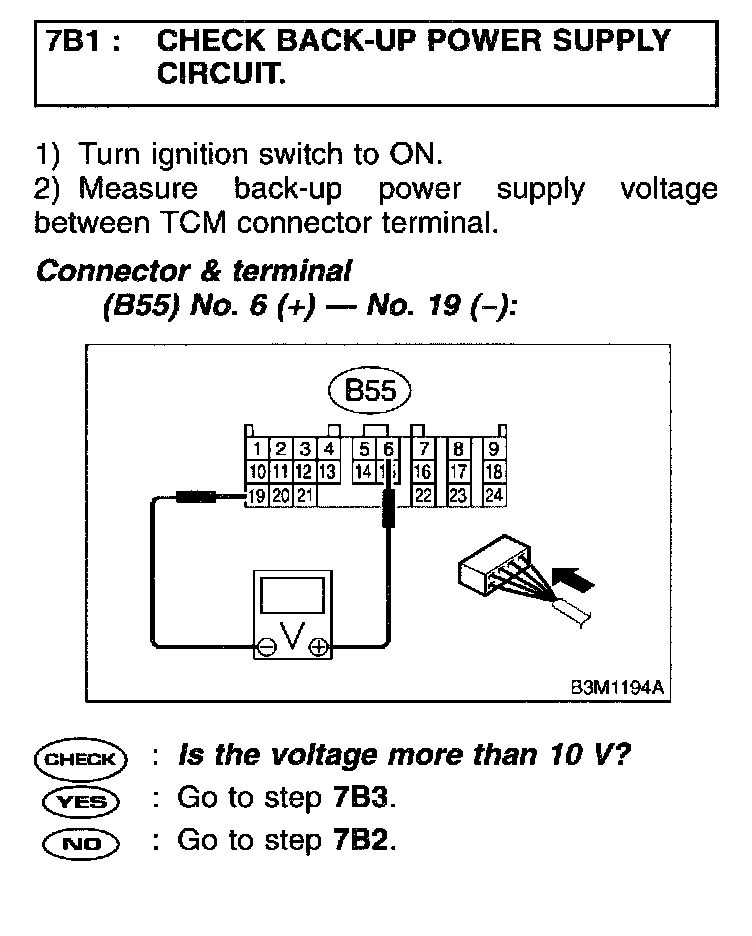

Step 7B1:

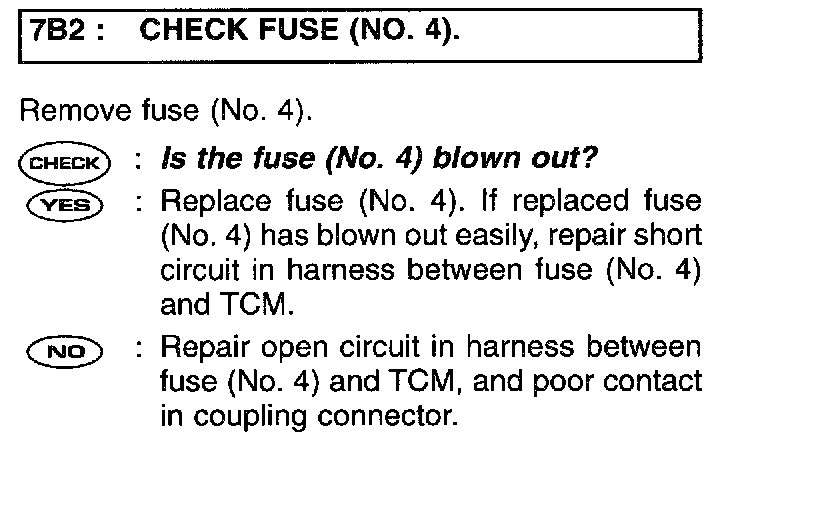

Step 7B2:

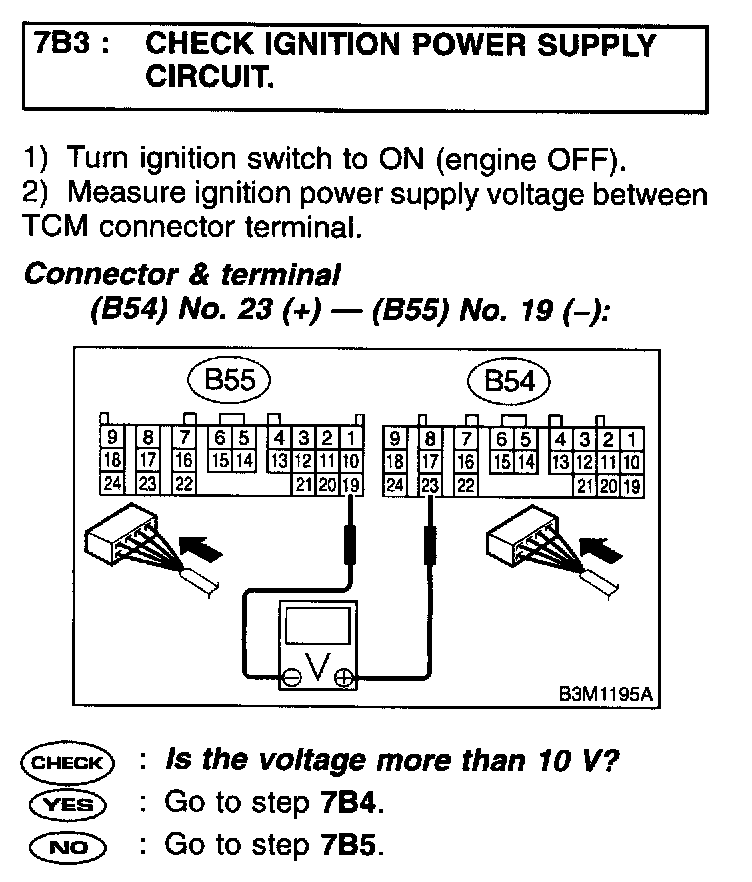

Step 7B3:

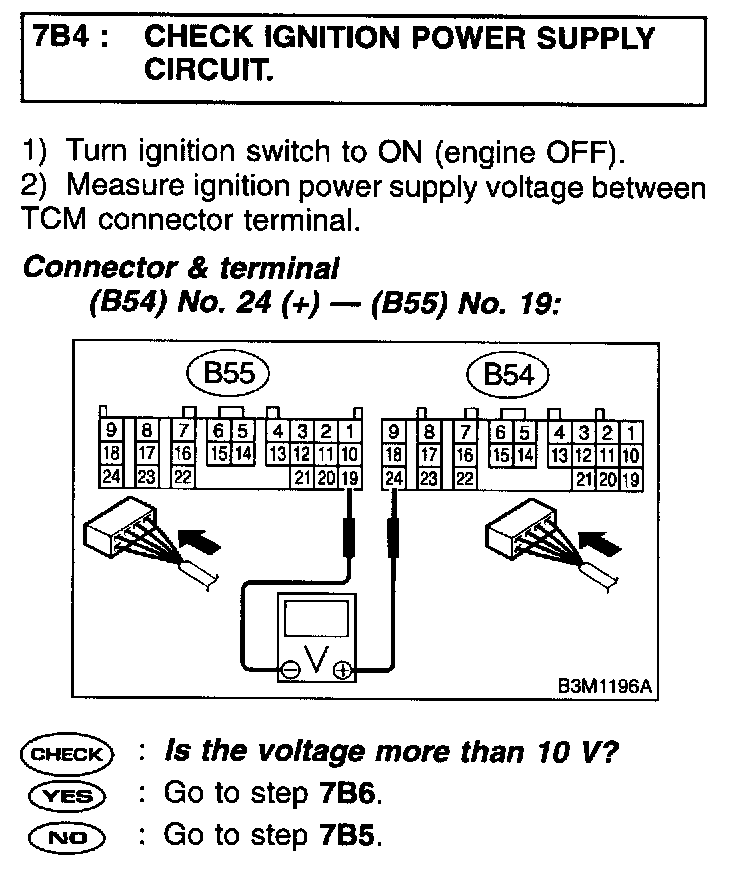

Step 7B4:

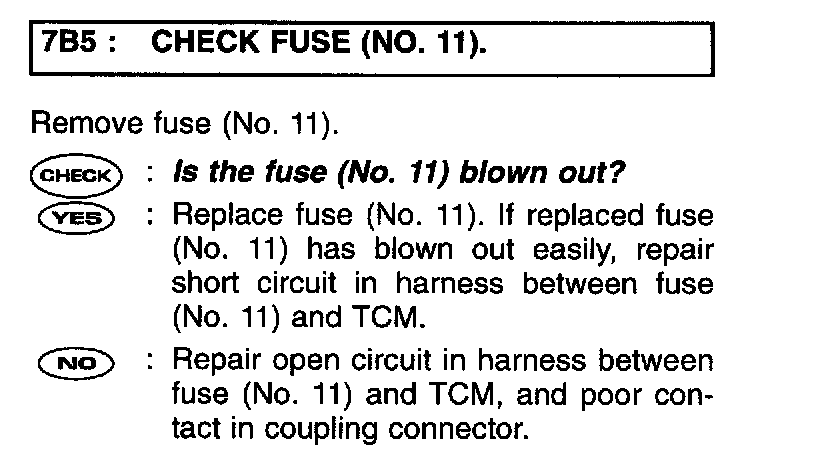

Step 7B5:

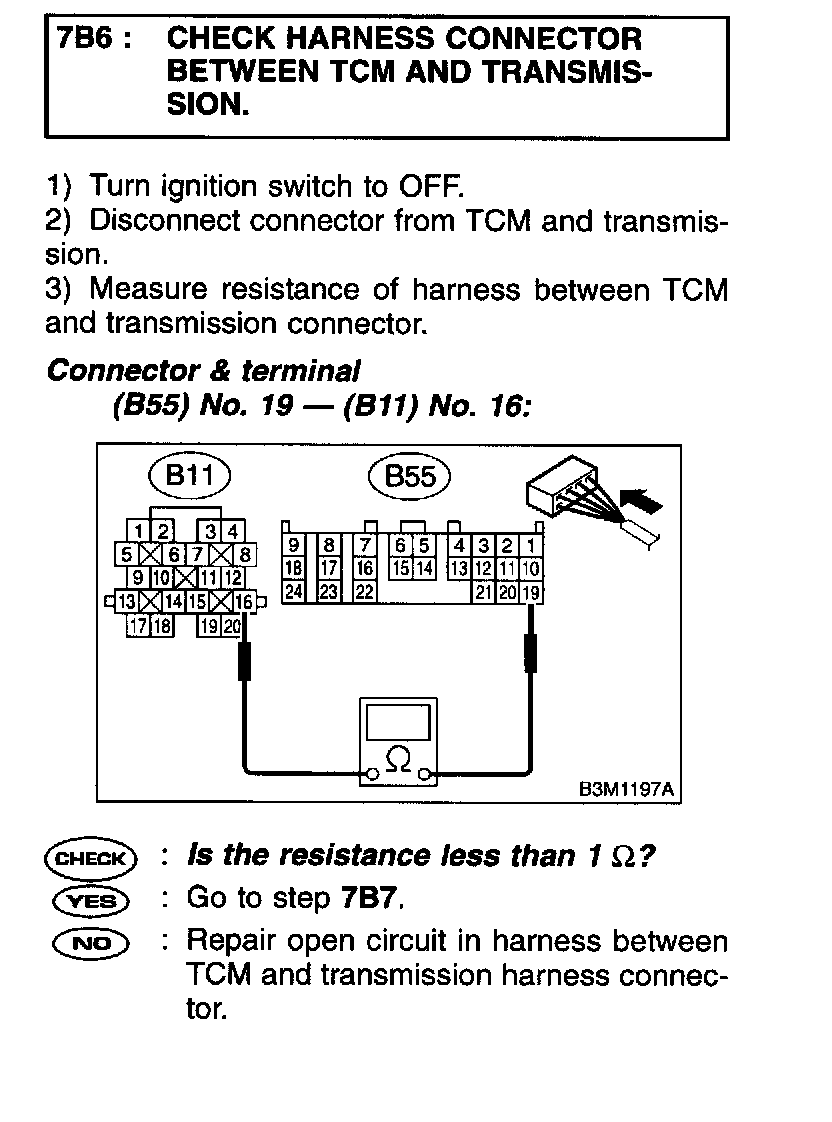

Step 7B6:

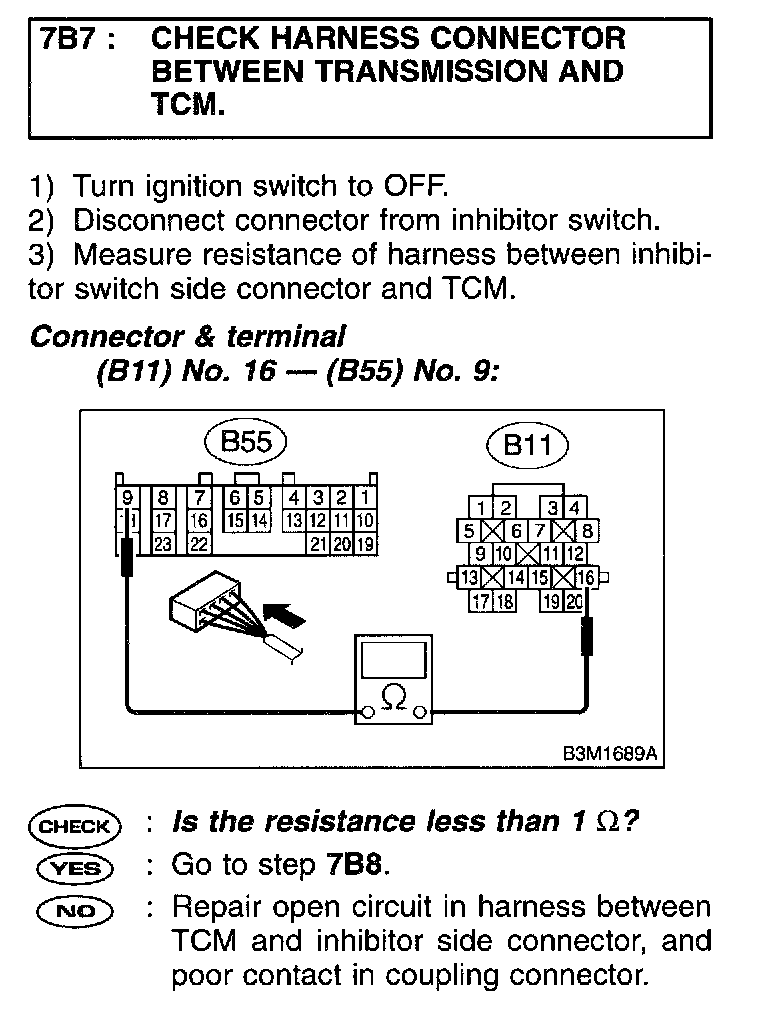

Step 7B7:

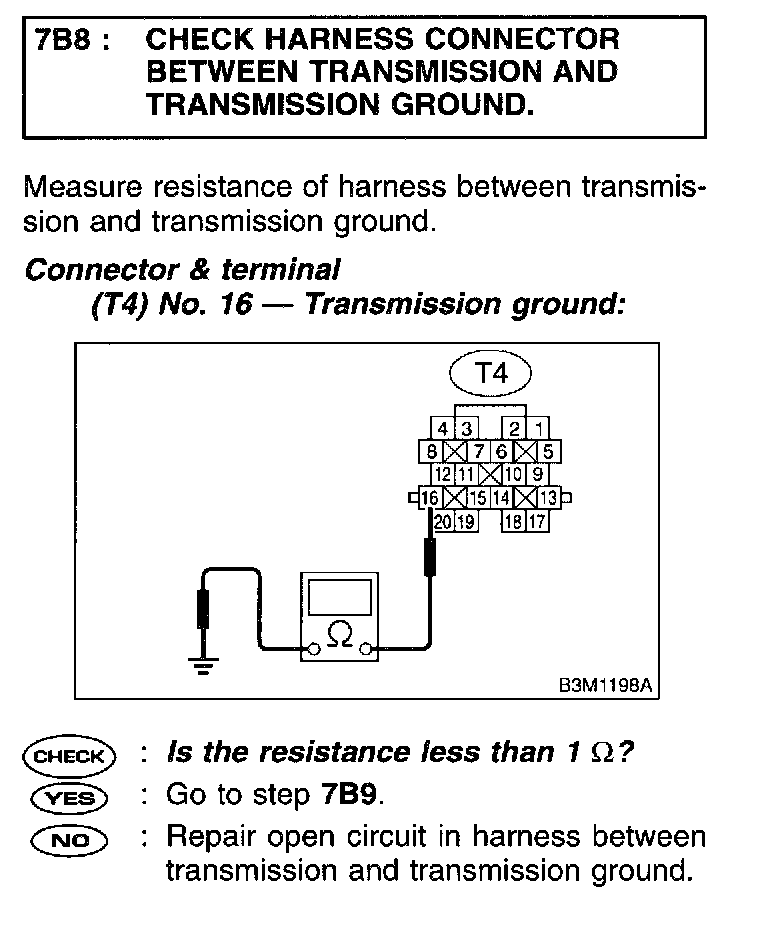

Step 7B8:

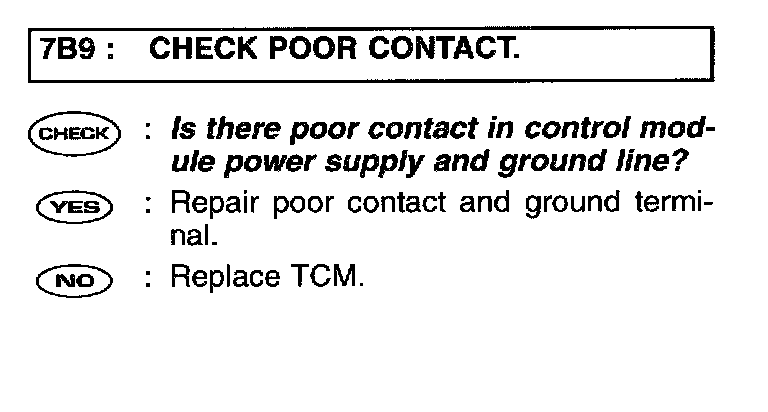

Step 7B9:
