Check Indicator and Circuit In Cruise control Main Switch

DIAGNOSIS:
Bulb failure or open harness of the indicator circuit in the cruise control main switch.

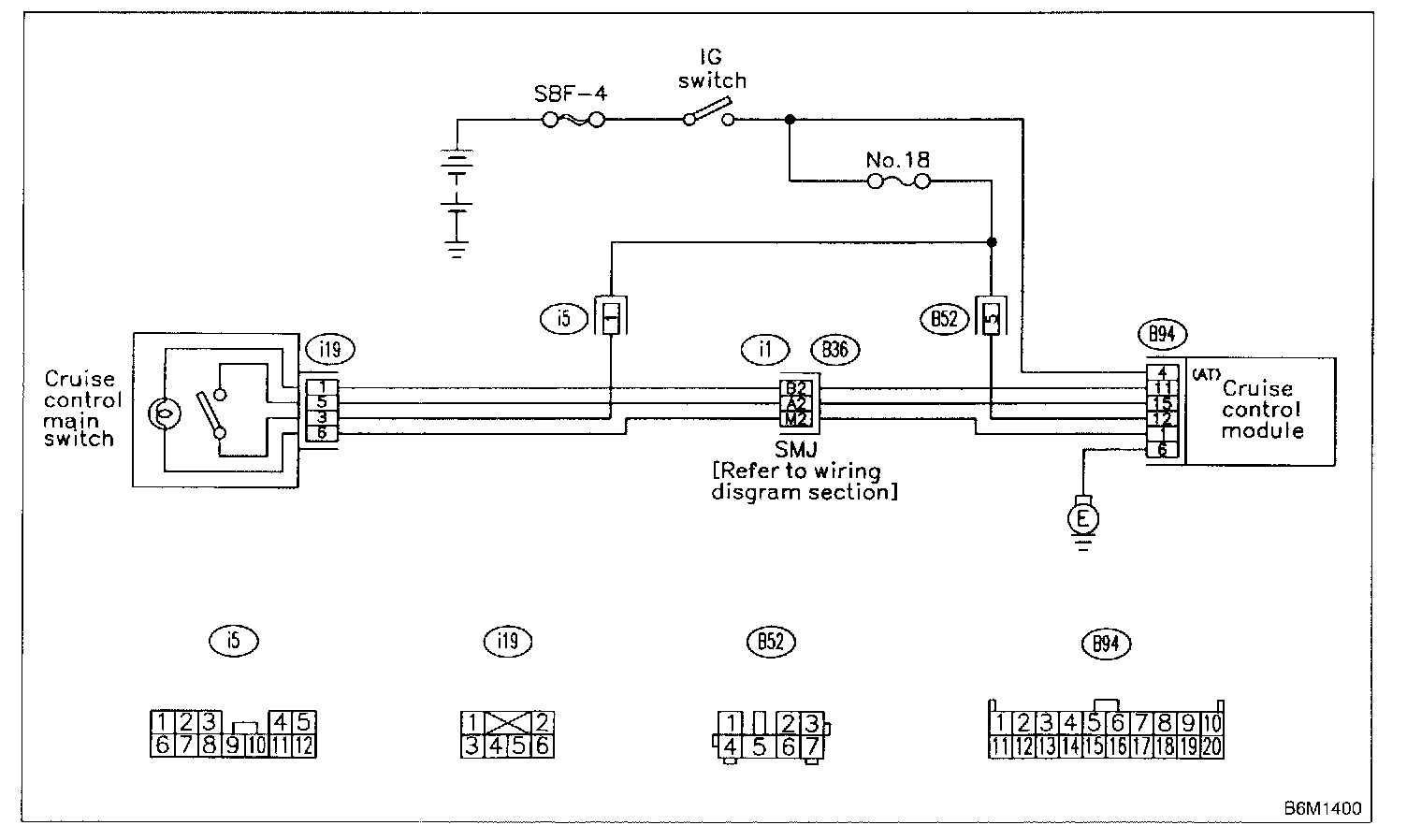

Wiring Diagram:

WIRING DIAGRAM

7B1: CHECK CRUISE CONTROL MAIN SWITCH.
1. Remove cruise control main switch.

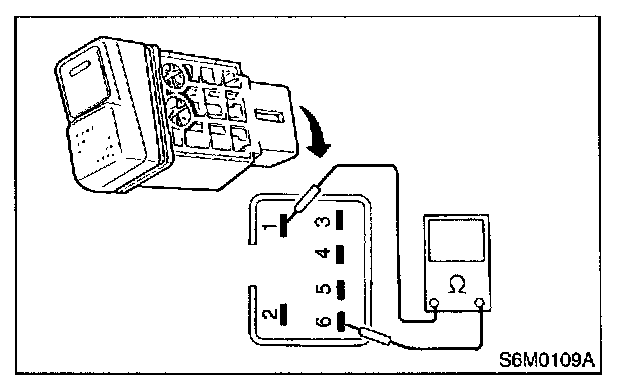

Terminals [No.1 - No.6]:

2. Measure resistance between cruise control main switch terminals

CHECK: Is voltage more than 10 V?

YES: Go to step 7B3.

NO: Repair or replace wiring harness.

7B2: CHECK CIRCUIT BETWEEN CRUISE CONTROL MODULE AND CRUISE CONTROL MAIN SWITCH INDICATOR LIGHT.
1. Turn the ignition switch to ON.
2. Turn cruise control main switch to ON.

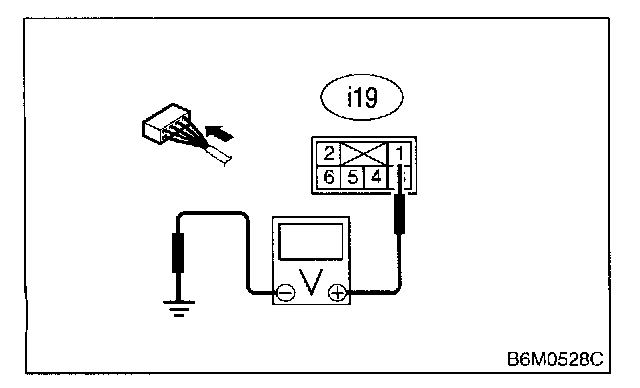

Connector & Terminal - [(i19) No.1 (+) - Chassis Ground (-)]:

3. Measure voltage between cruise control main switch connector and the chassis ground.

CHECK: Is voltage more than 10V?

YES: Go to step 7B3.

NO: Repair or replace wiring harness.

7B3: CHECK CIRCUIT BETWEEN CRUISE CONTROL MODULE AND CRUISE CONTROL MAIN SWITCH INDICATOR LIGHT.
1. Turn the ignition switch and cruise control main switch to OFF.
2. Remove the connector from the cruise control main switch.

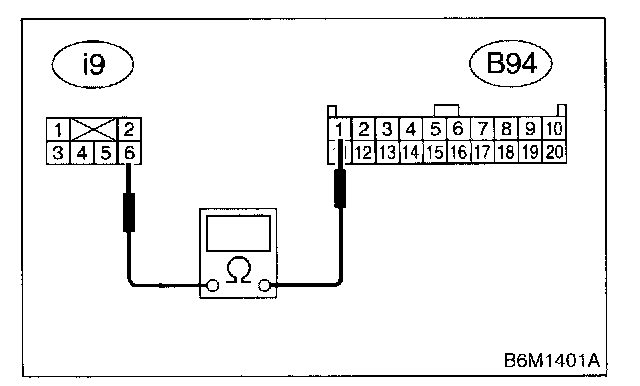

Connector & Terminal - [(i19) No.6 (+) - (B94) No.1]:

3. Measure resistance of ground circuit between the cruise control main switch connector and cruise control module connector.

CHECK: Is resistance less than 10 Ohms?

YES: Replace cruise control module.

NO: Repair or replace wiring harness.
