Front Differential

Park vehicle on level surface with engine off. Remove Yellow handled dipstick located on top of differential and clean with cloth. See Fig 1 and Fig 2 . Check fluid level. Level should be between "L" and "F" marks. Add fluid if necessary.

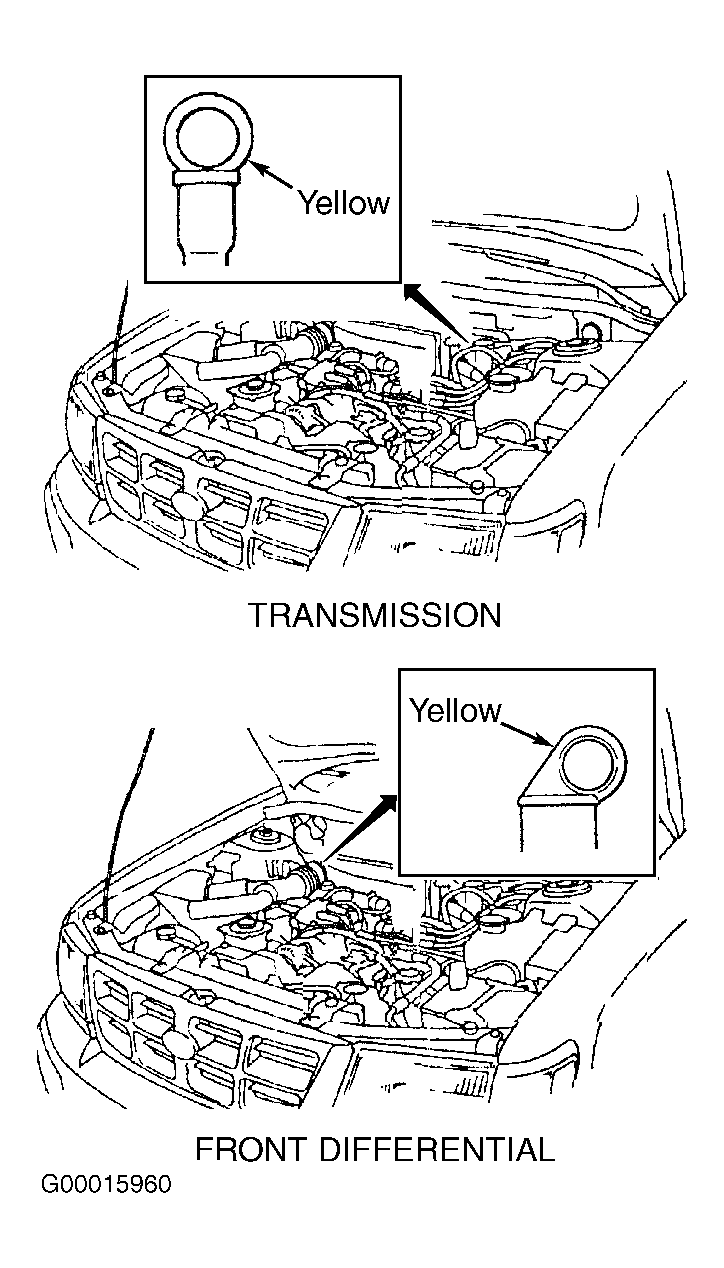

Fig 1: Locating Transmission & Differential Dipstick (Forester & Impreza)

Courtesy of SUBARU OF AMERICA, INC.

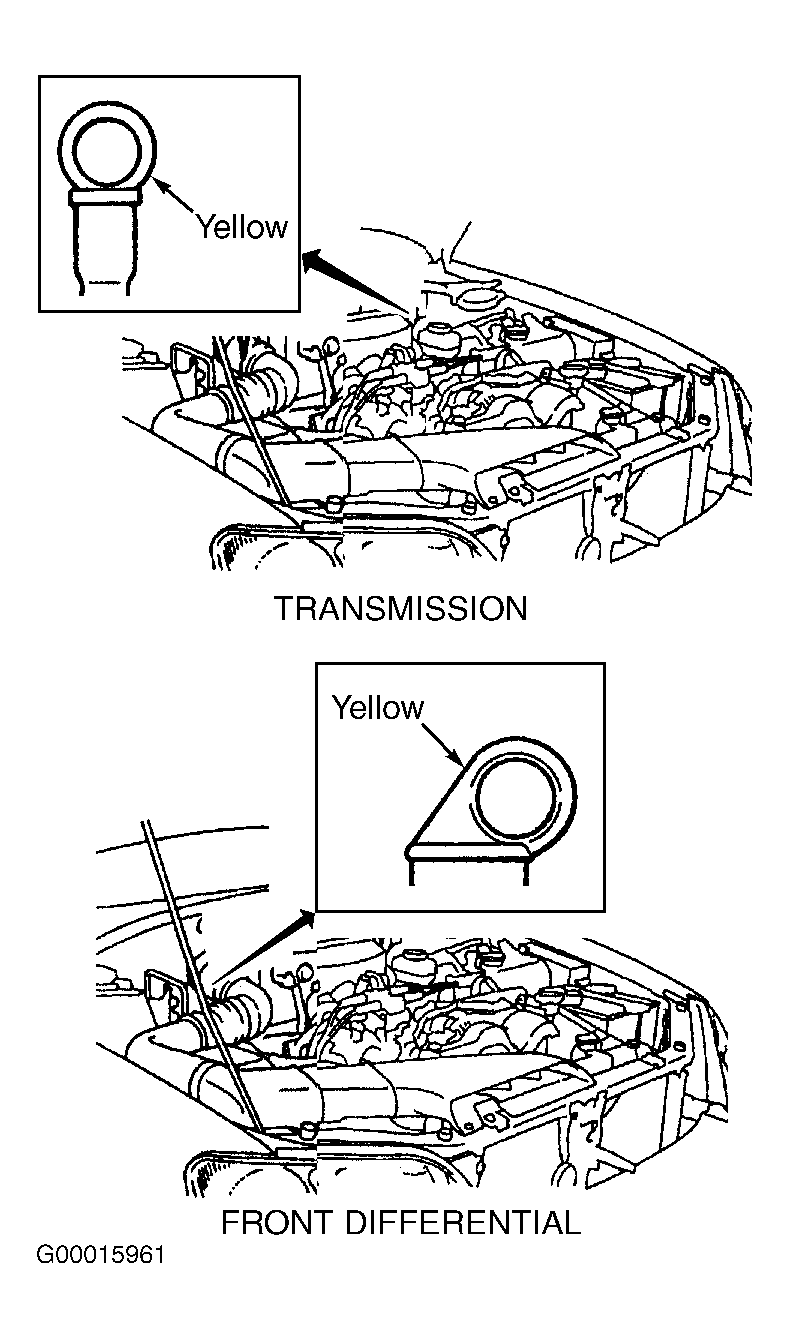

Fig 2: Locating Transmission & Differential Dipstick (Legacy & Outback)

Courtesy of SUBARU OF AMERICA, INC.
