Propeller Shaft: Specifications

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

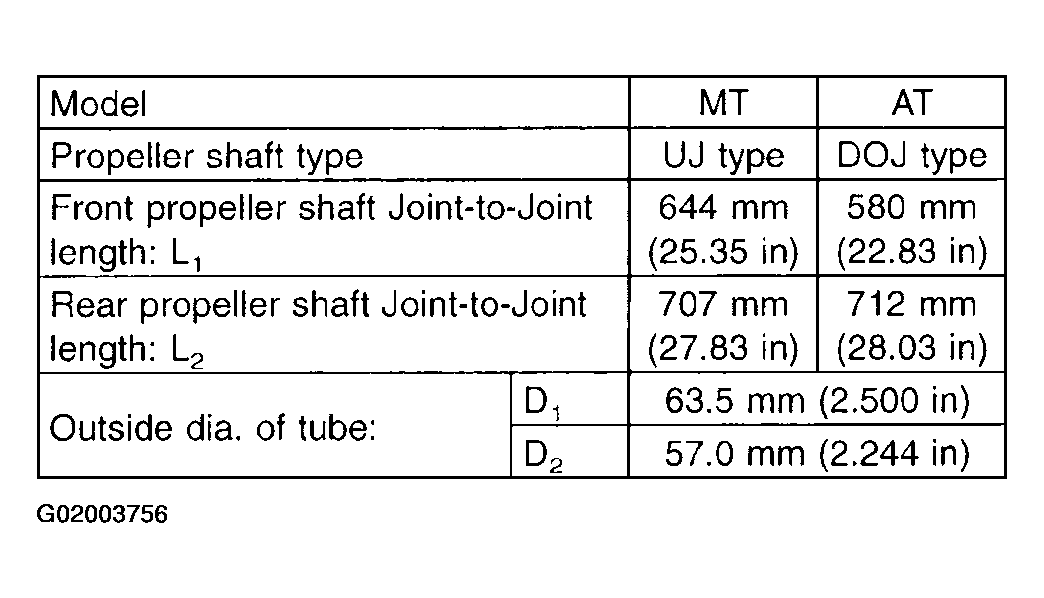

Fig 1: Propeller Shaft Specification Chart
G02003756

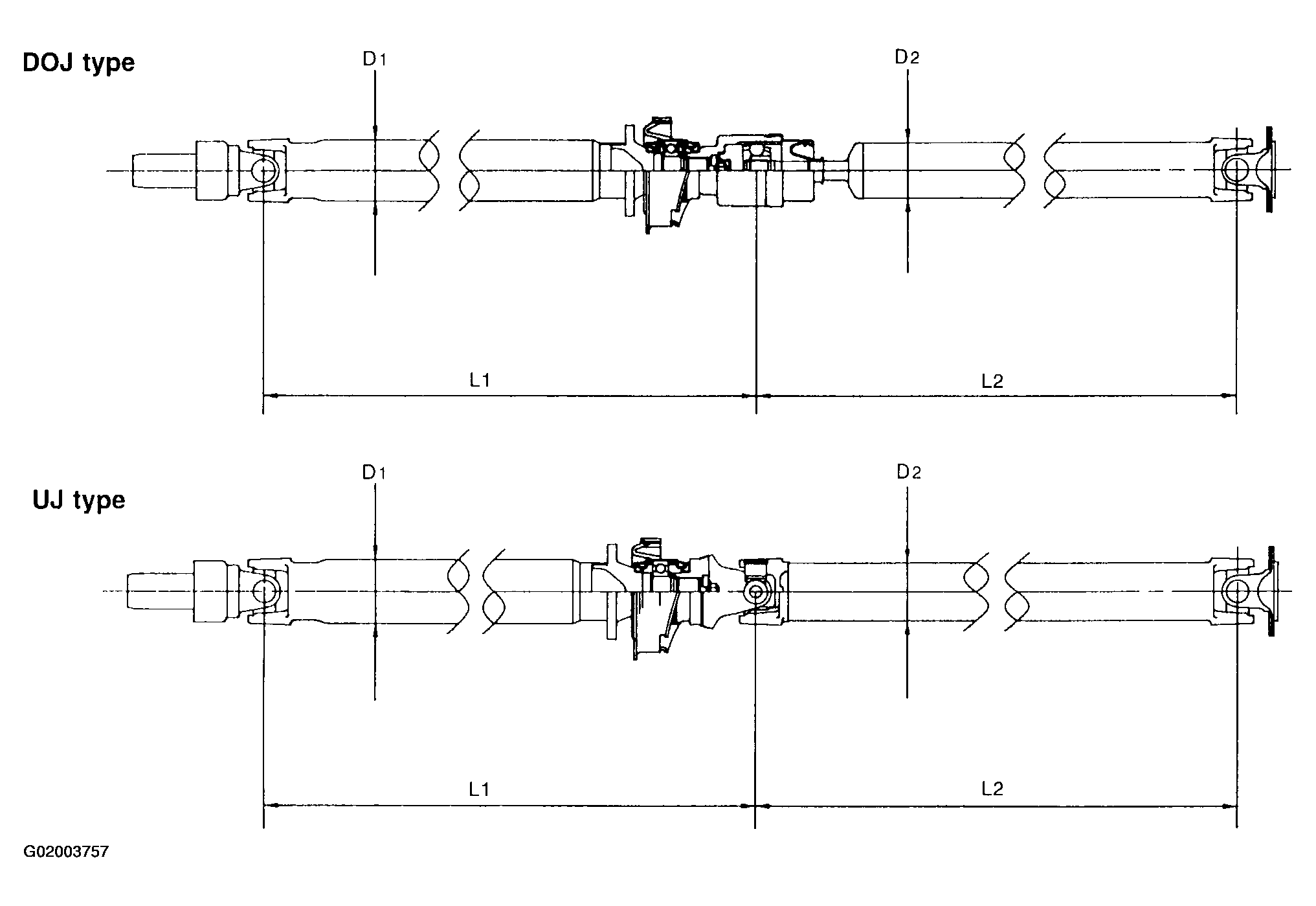

Fig 2: Identifying Propeller Shaft Types
G02003757
