Automatic Transmission Assembly: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install ST to torque converter clutch case.
    1. ST 498277200 STOPPER SET

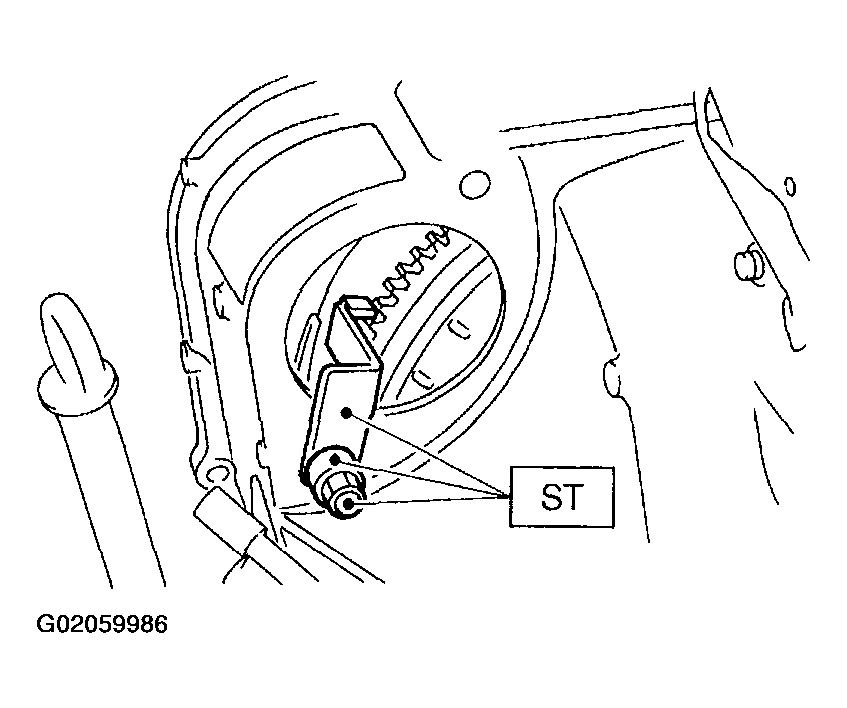

    Fig 1: Installing (ST) To Torque Converter Clutch Case
    G02059986
  2. Install transmission to engine.
    1. Gradually raise transmission with transmission jack.

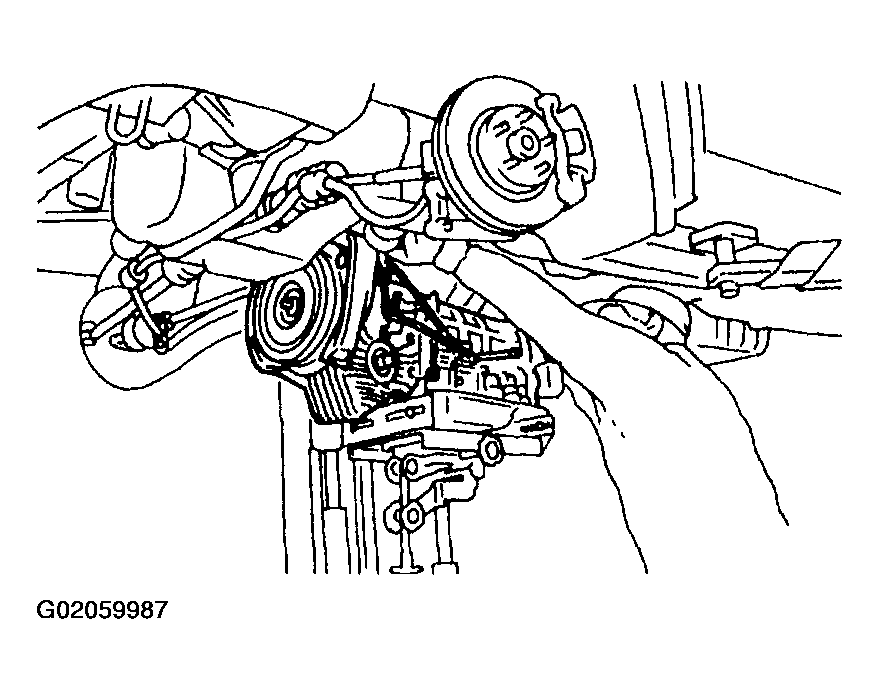

    2. Fig 2: Installing Transmission To Engine
      G02059987
    3. Engage them at splines.
  3. Install transmission rear crossmember.

    Tightening torque:

    1. T1:  34 N.m (3.5 kgf-m, 25.3 ft-lb)
    2. T2:  69 N.m (7.0 kgf-m, 51 ft-lb)

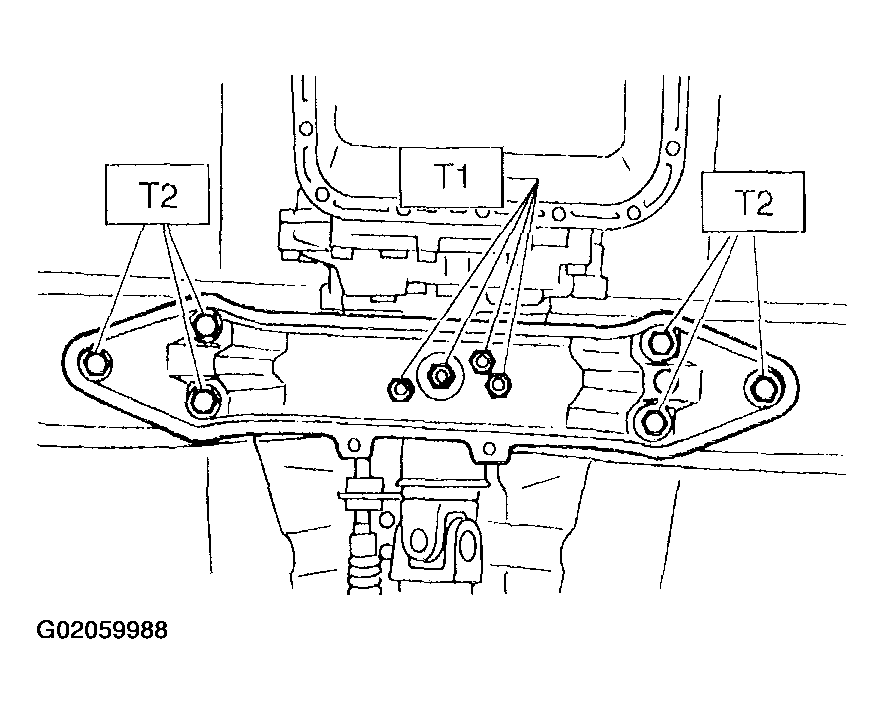

    Fig 3: Installing Transmission Rear Crossmember
    G02059988
  4. Take off transmission jack.
  5. Tighten nuts which hold lower side of transmission to engine.
    1. Tightening torque:  50 N.m (5.1 kgf-m, 36.9 ft-lb)
    Fig 4: Tightening Nuts On Lower Side Of Transmission To Engine
    G02059989
  6. Tighten bolts which holds right upper side of transmission to engine.
    1. Tightening torque:  50 N.m (5.1 kgf-m, 36.9 ft-lb)
    Fig 5: Tightening Bolts On Right Upper Side Of Transmission To Engine
    G02059990
  7. Install torque converter to drive plate.
    1. Tighten bolts which hold torque converter to drive plate.
    2. Tighten other bolts while rotating the engine by using ST.

      2200 cc vehicles:

      1. ST 499977300 CRANK PULLEY WRENCH

      2500 cc vehicles:

      1. ST 499977100 CRANK PULLEY WRENCH
      CAUTION: Be careful not to drop bolts into torque converter housing.
      1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

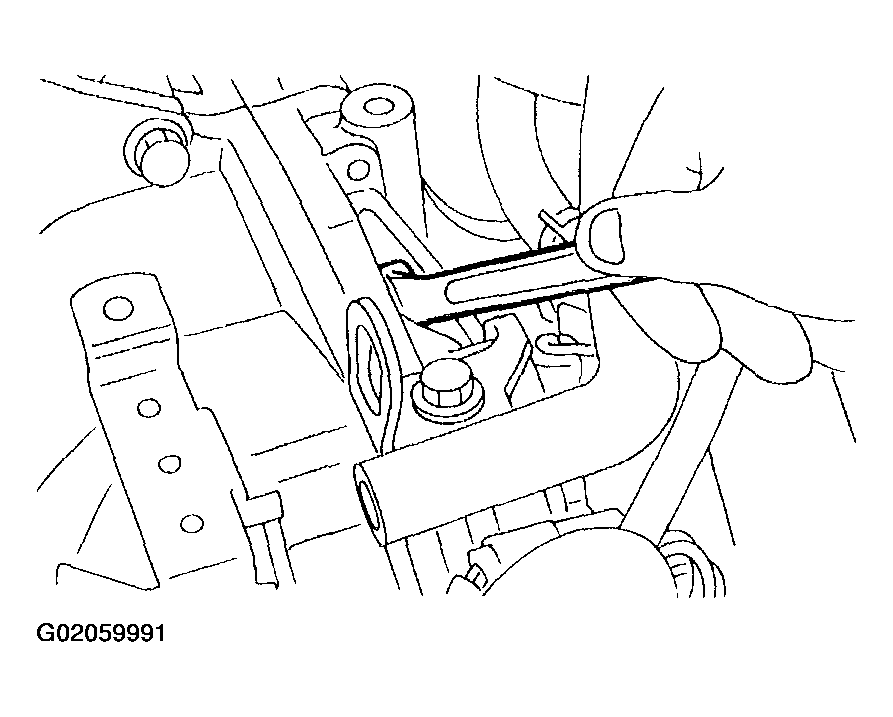

      Fig 6: Installing Torque Converter To Drive Plate
      G02059991
    3. Clog plug onto service hole.
  8. Remove special tools.

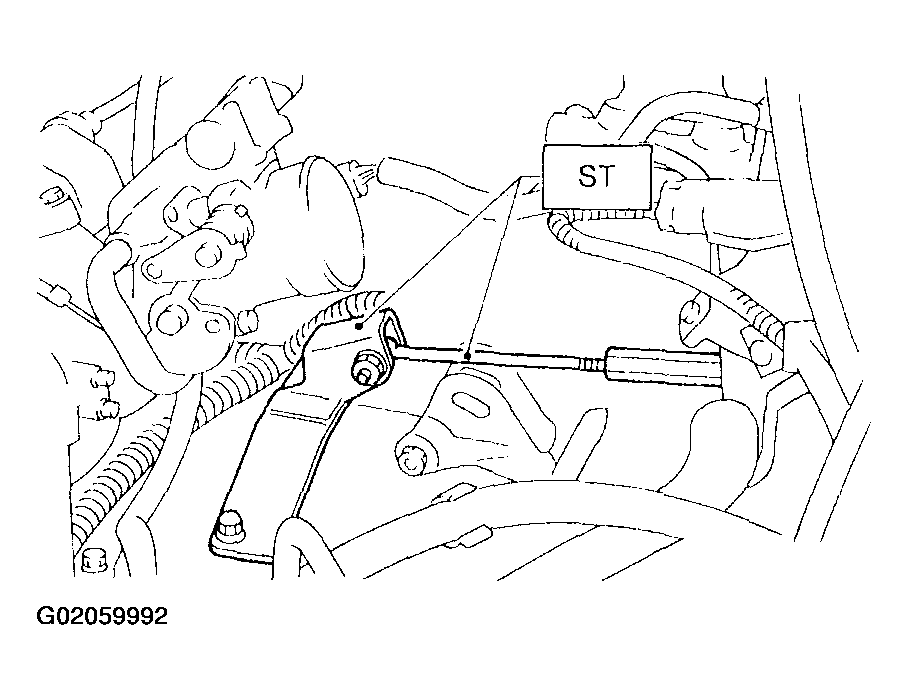

    Fig 7: Removing Special Tools
    G02059992
  9. Install pitching stopper.

    Tightening torque:

    1. T1:  49 N.m (5.0 kgf-m, 36.2 ft-lb)
    2. T2:  57 N.m (5.8 kgf-m, 42 ft-lb)

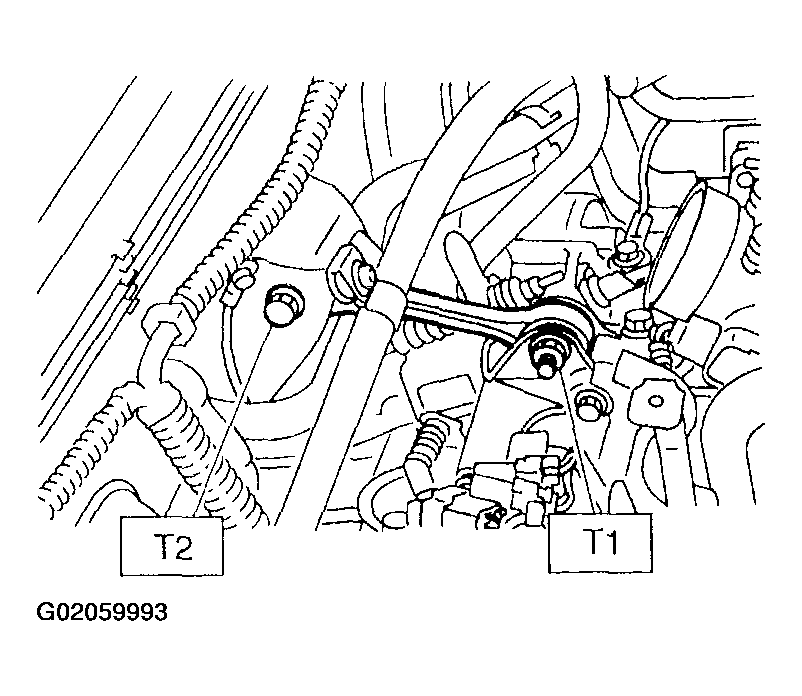

    Fig 8: Installing Pitching Stopper
    G02059993
  10. Install front drive shafts into transmission.
    1. Lift-up the vehicle.
    2. Install front drive shaft into transmission.
    3. Drive spring pin into chamfered hole of drive shaft.
      CAUTION: Always use a new spring pin.

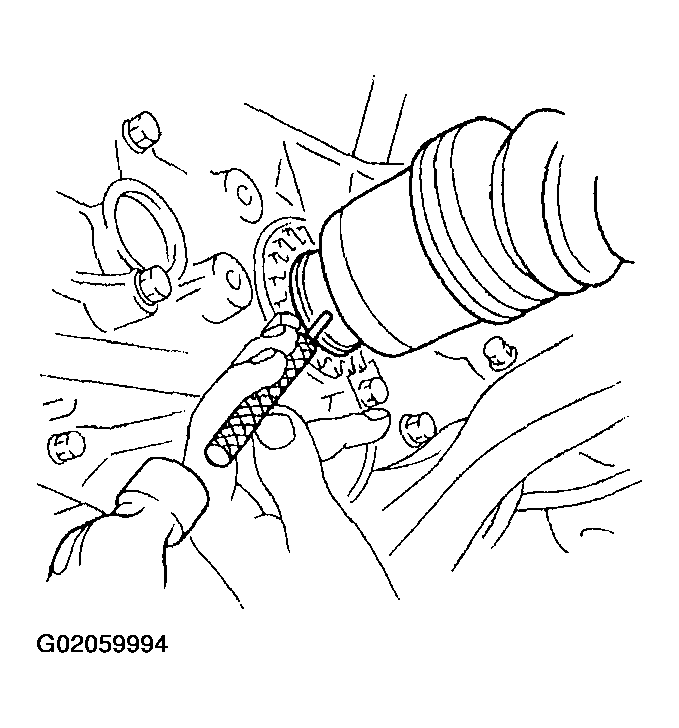

      Fig 9: Driving Spring Pin Into Chamfered Hole Of Drive Shaft
      G02059994
    4. Install ball joints of lower arm into knuckle arm of housing, and tighten installing bolts.
    1. Tightening torque:  49 N.m (5.0 kgf-m, 36 ft-lb)

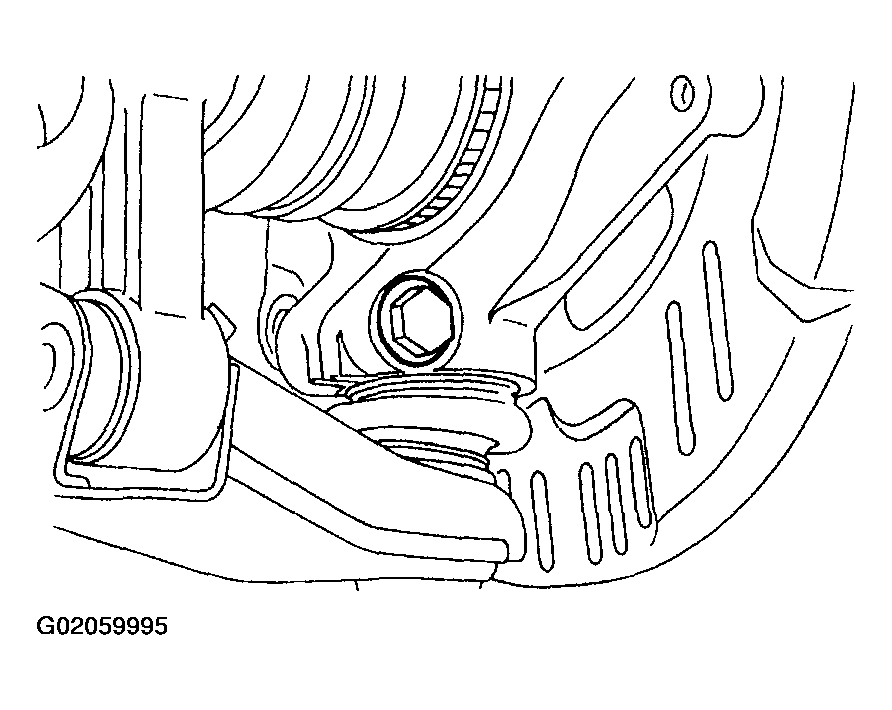

    Fig 10: Installing Lower Ball Joints Into Knuckle Arm Of Housing
    G02059995
  11. Install stabilizer clamps onto front crossmember.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

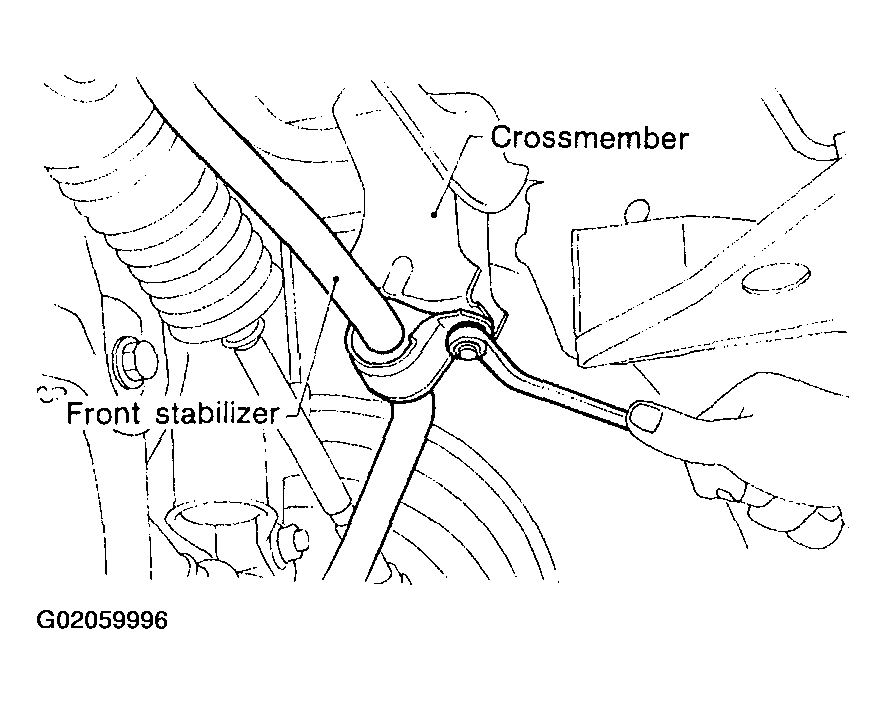

    Fig 11: Installing Stabilizer Clamps Onto Front Crossmember
    G02059996
  12. Install shift selector cable onto selector lever.
    1. Install selector cable to range select lever.
    2. Install cable clamp to plate assembly.

      Tightening torque:

      1. T:  32 N.m (3.3 kgf-m, 24 ft-lb)

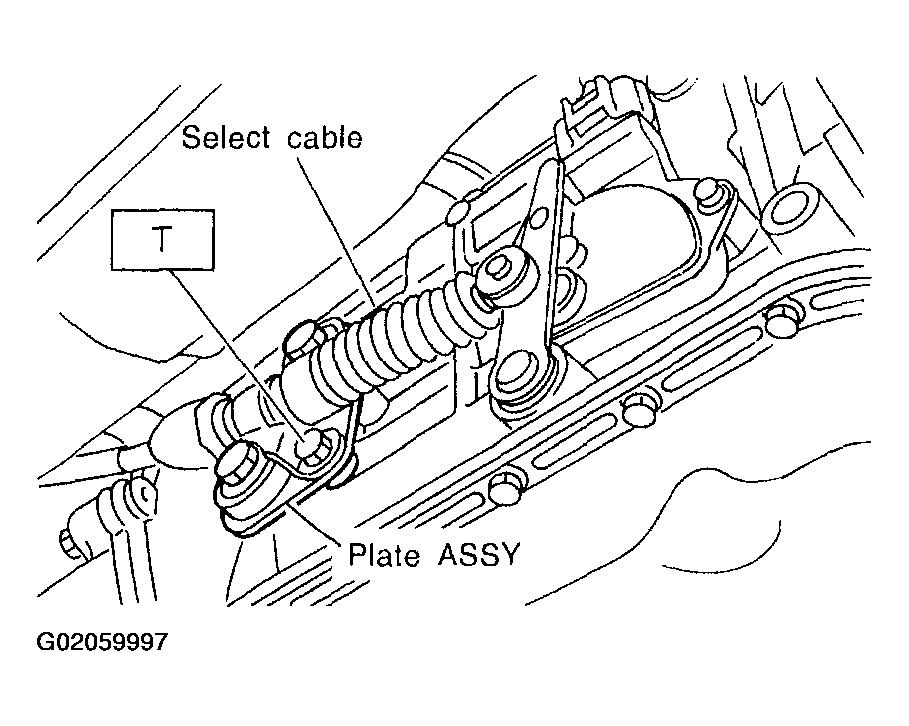

      Fig 12: Install Shift Selector Cable Onto Selector Lever
      G02059997
    3. Install snap pin to range select lever.

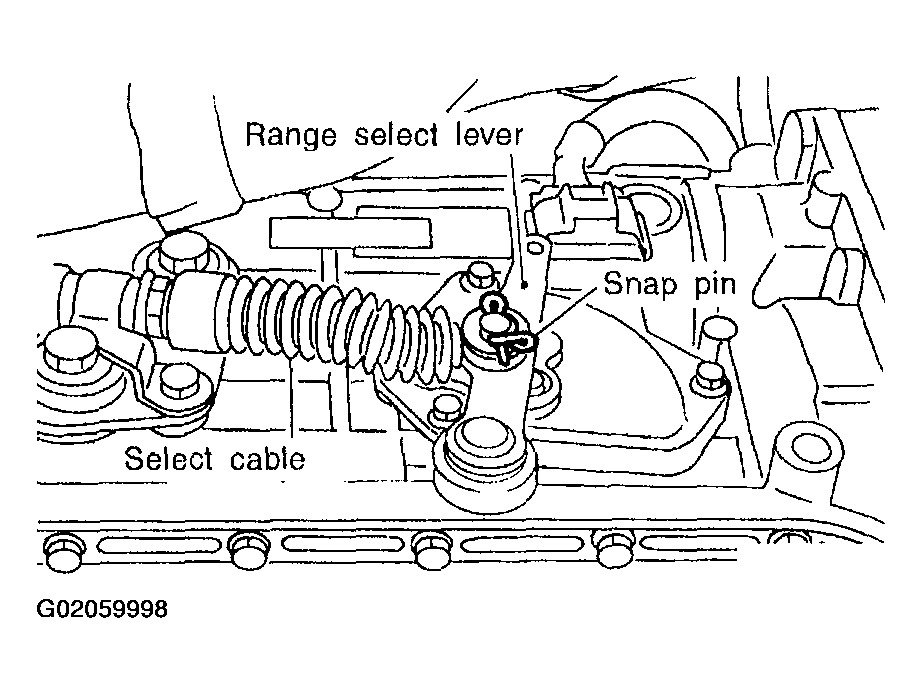

      Fig 13: Installing Snap Pin To Range Select Lever
      G02059998
  13. Install ATF level gauge guide, and ATF cooler hoses onto pipe.

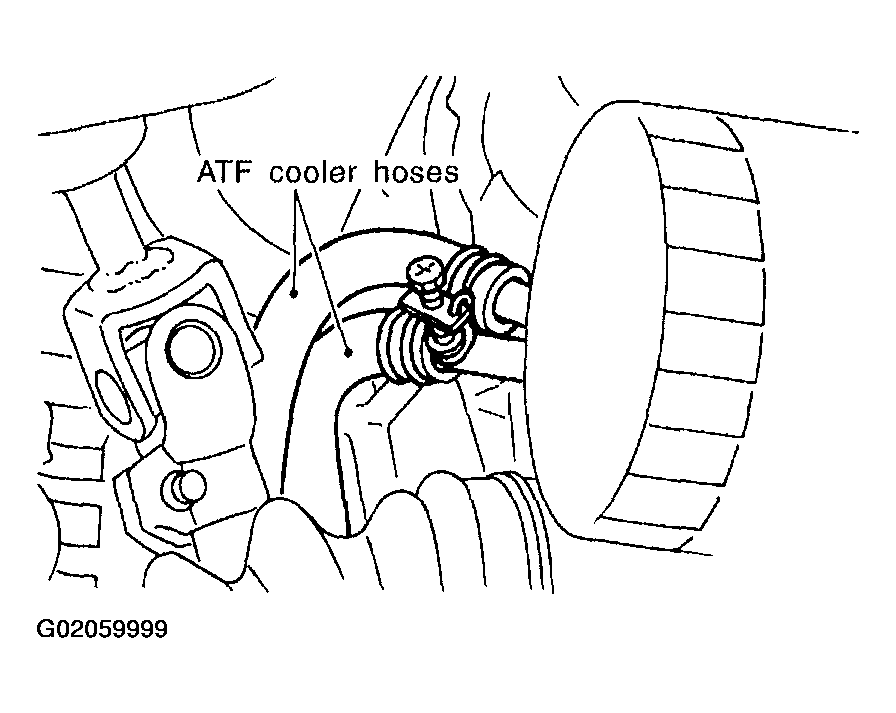

    Fig 14: Identifying ATF Cooler Hoses
    G02059999
  14. Install propeller shaft.
    1. Install propeller shaft into transmission.
    2. Tighten bolts which install propeller shaft onto companion flange of rear differential.

      Tightening torque:

      1. T:  31 N.m (3.2 kgf-m, 23.1 ft-lb)

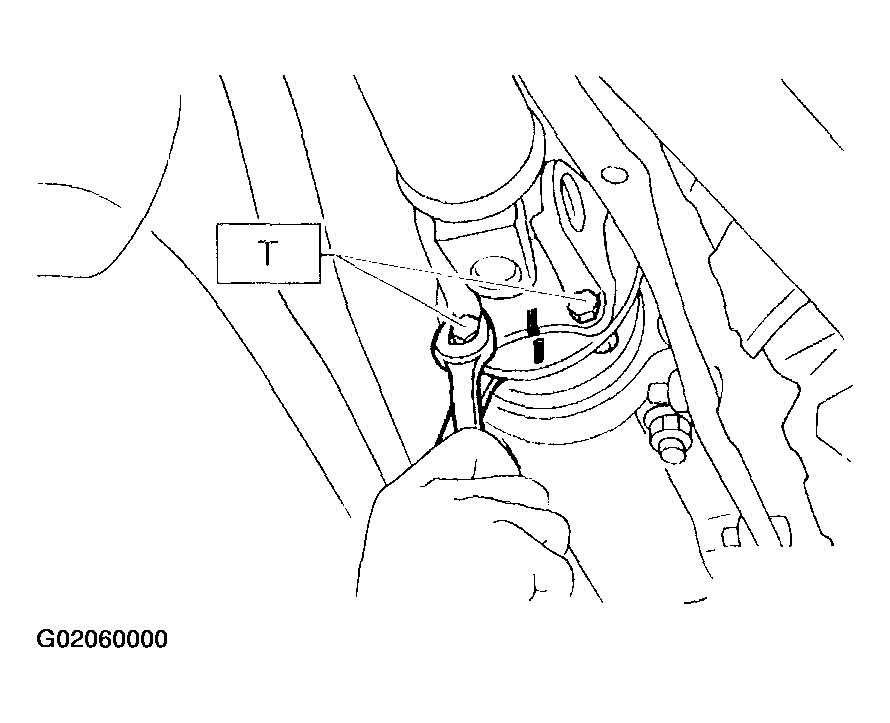

      Fig 15: Installing Propeller Shaft Onto Companion Flange Of Rear Differential
      G02060000
    3. Install center bearing bracket on body.
    1. Tightening torque:
      1. T:  52 N.m (5.3 kgf-m, 38.3 ft-lb)

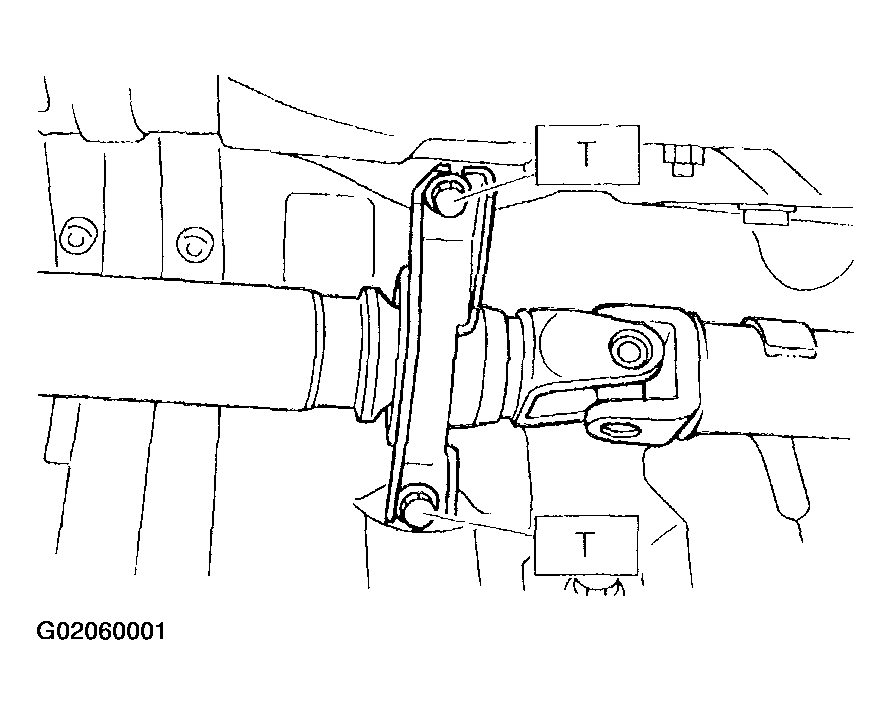

    Fig 16: Installing Center Bearing Bracket On Body
    G02060001
  15. Install exhaust system.
    1. Install heat shield cover.

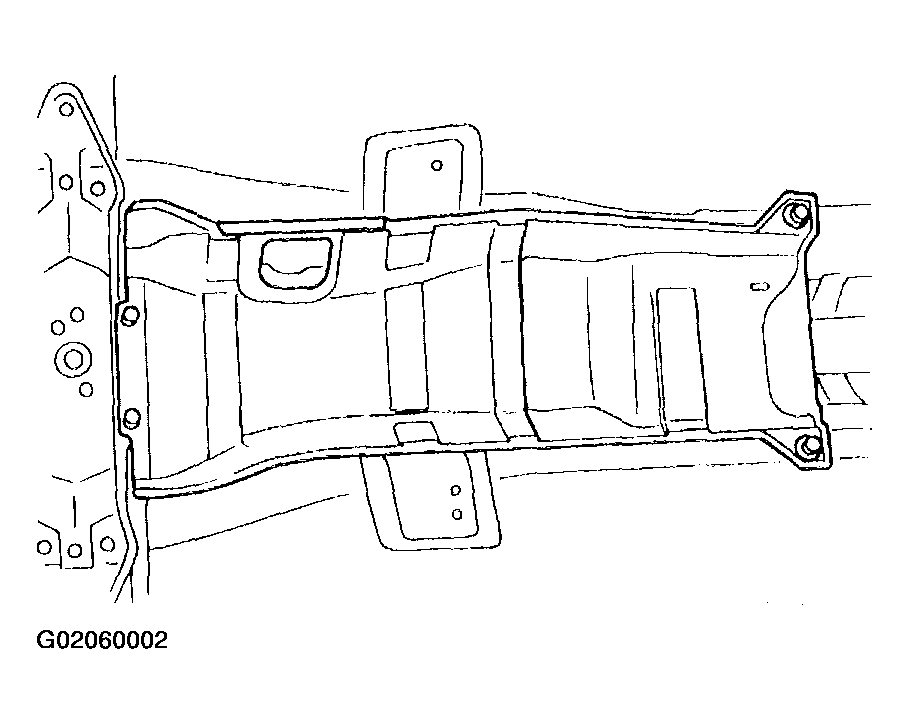

      Fig 17: Installing Heat Shield Cover
      G02060002
    2. Install rear exhaust pipe to muffler.
      1. Tightening torque:  48 N.m (4.9 kgf-m, 35.4 ft-lb)

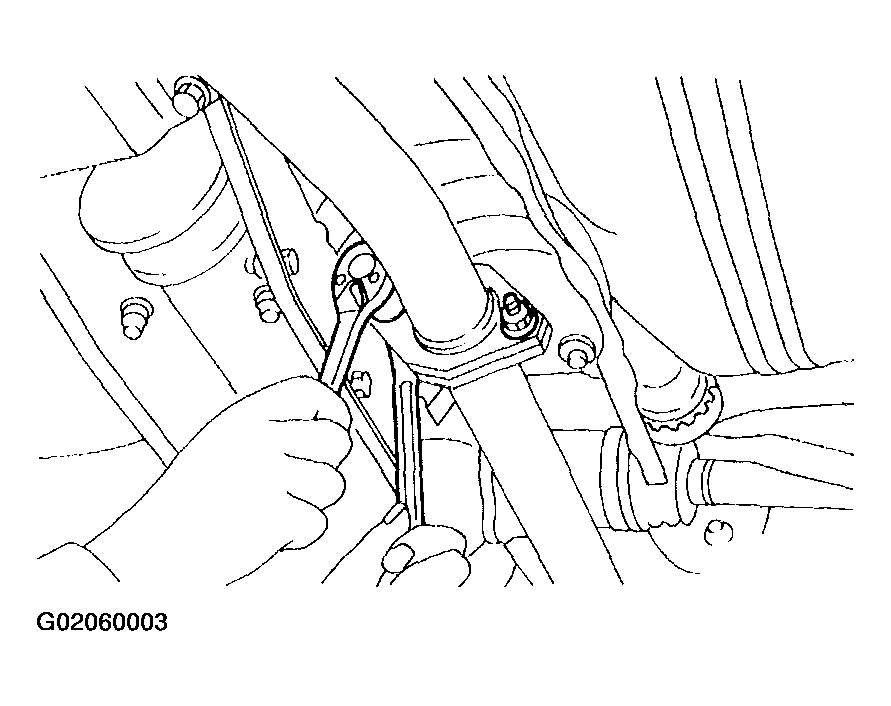

      Fig 18: Installing Rear Exhaust Pipe To Muffler
      G02060003
    3. Install hanger bracket on right side of transmission.

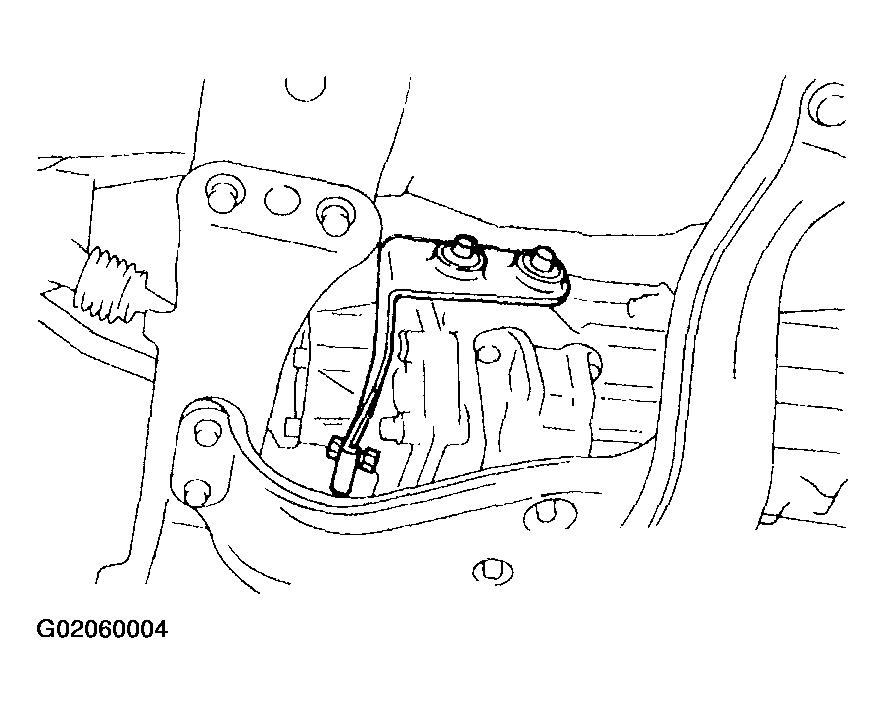

      Fig 19: Installing Hanger Bracket On Right Side Of Transmission
      G02060004
    4. Install front exhaust pipe onto engine.
      1. Tightening torque:  30 N.m (3.1 kgf-m, 22.4 ft-lb)

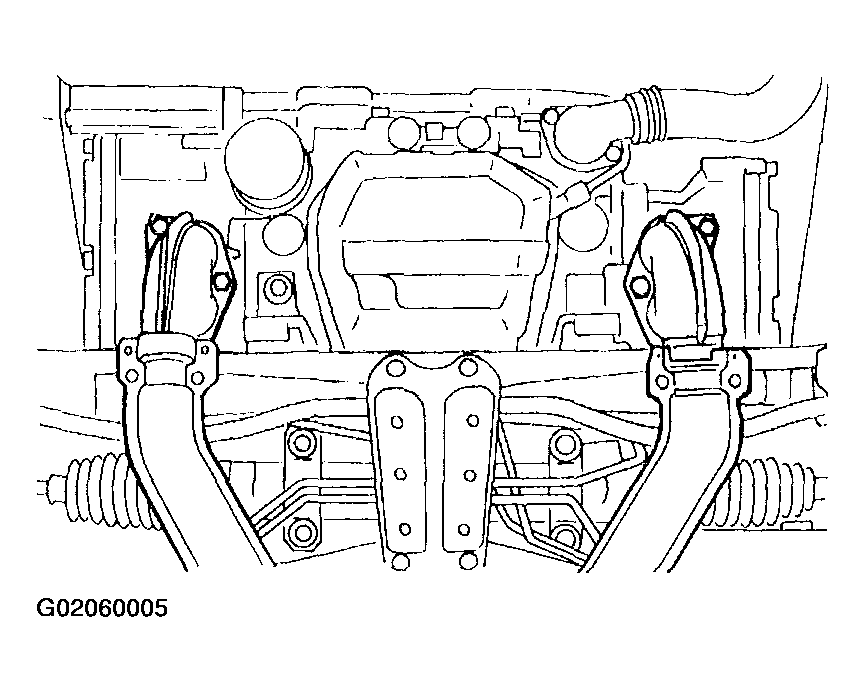

      Fig 20: Installing Front Exhaust Pipe Onto Engine
      G02060005
    5. Install center exhaust pipe to rear exhaust pipe.
      1. Tightening torque:  18 N.m (1.8 kgf-m, 13.0 ft-lb)

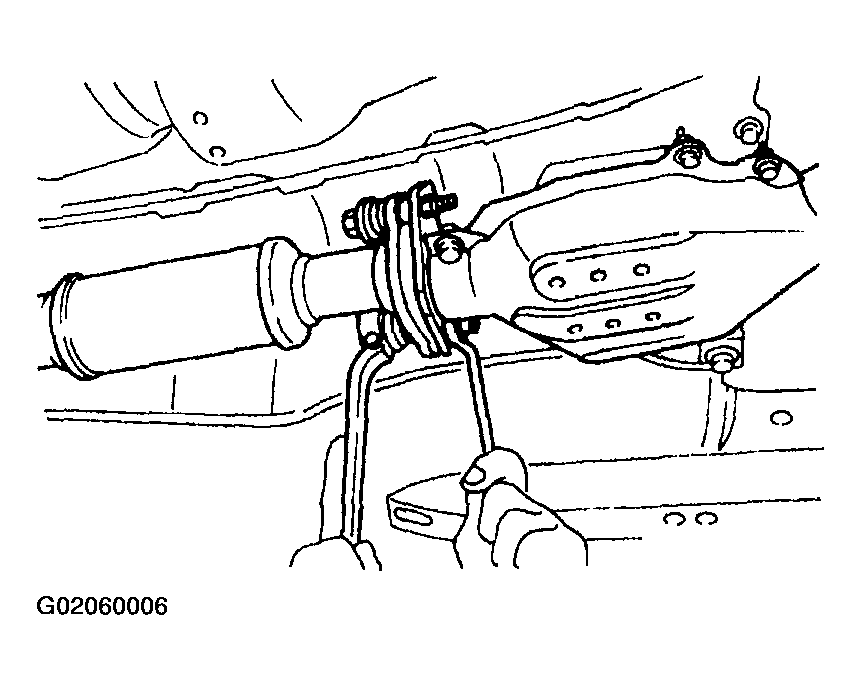

      Fig 21: Installing Center Exhaust Pipe To Rear Exhaust Pipe
      G02060006
    6. Tighten bolt which installs center exhaust pipe to hanger bracket.
      1. Tightening torque:  35 N.m (3.6 kgf-m, 26.0 ft-lb)

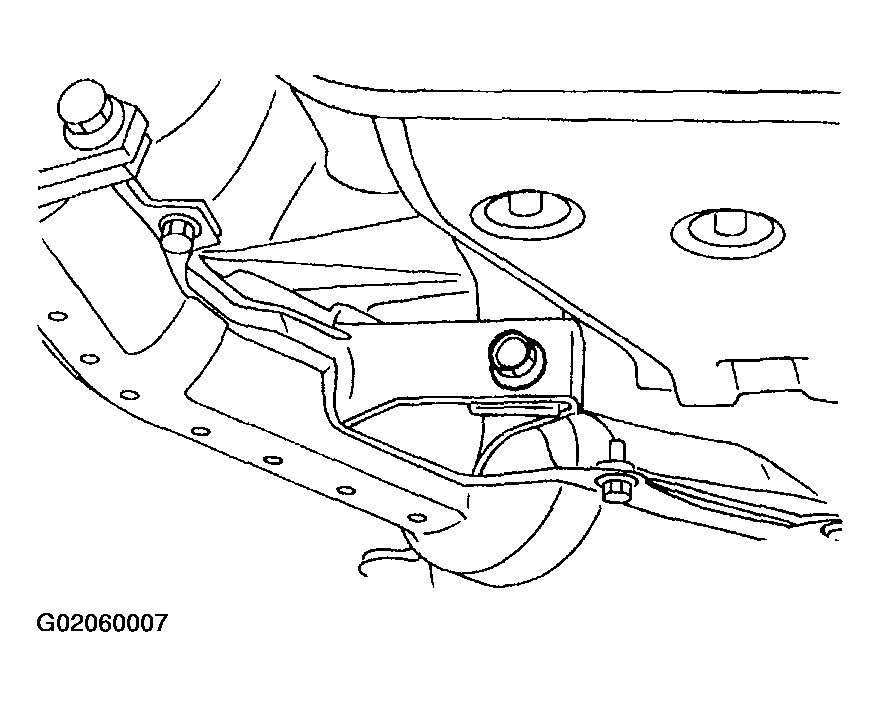

      Fig 22: Installing Center Exhaust Pipe To Hanger Bracket
      G02060007
    7. Connect connector to rear oxygen sensor.

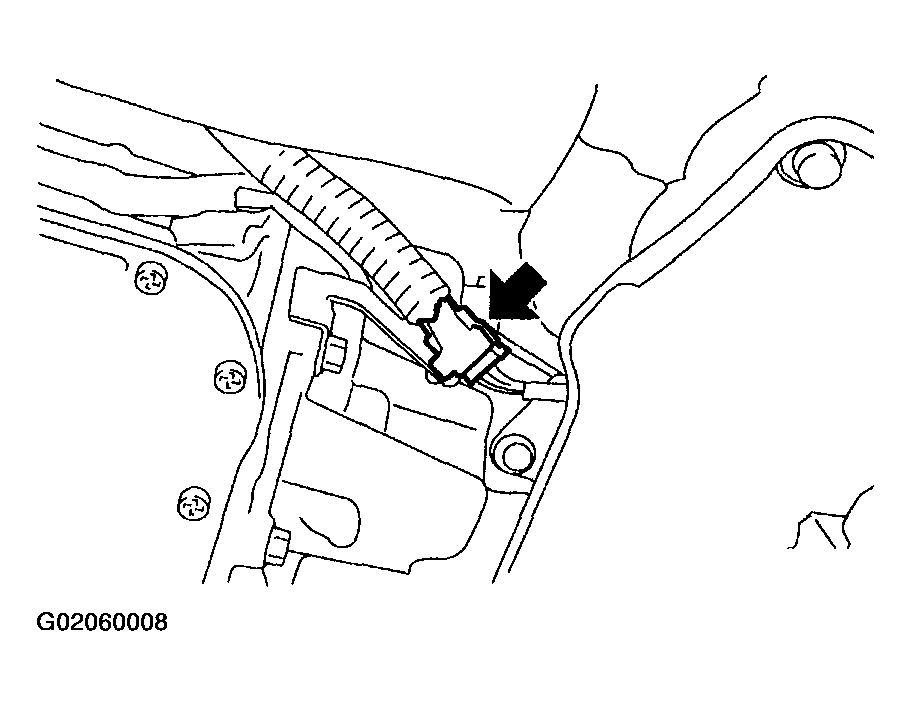

      Fig 23: Connecting Rear Oxygen Sensor Connector
      G02060008
  16. Install ATF level gauge.

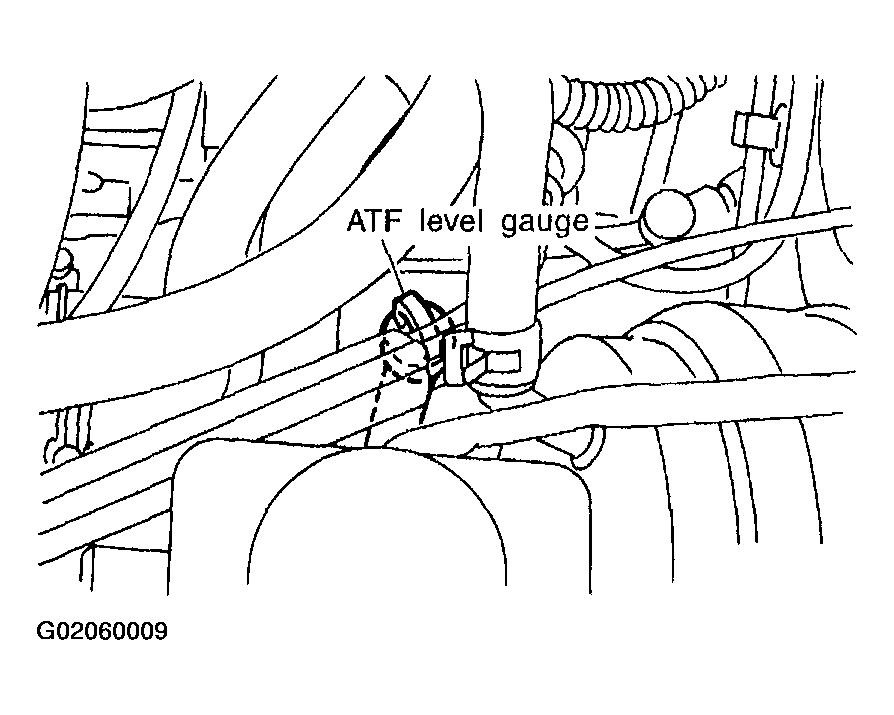

    Fig 24: Installing ATF Level Gauge
    G02060009
  17. Connect the following connectors.
    1. Transmission harness connectors

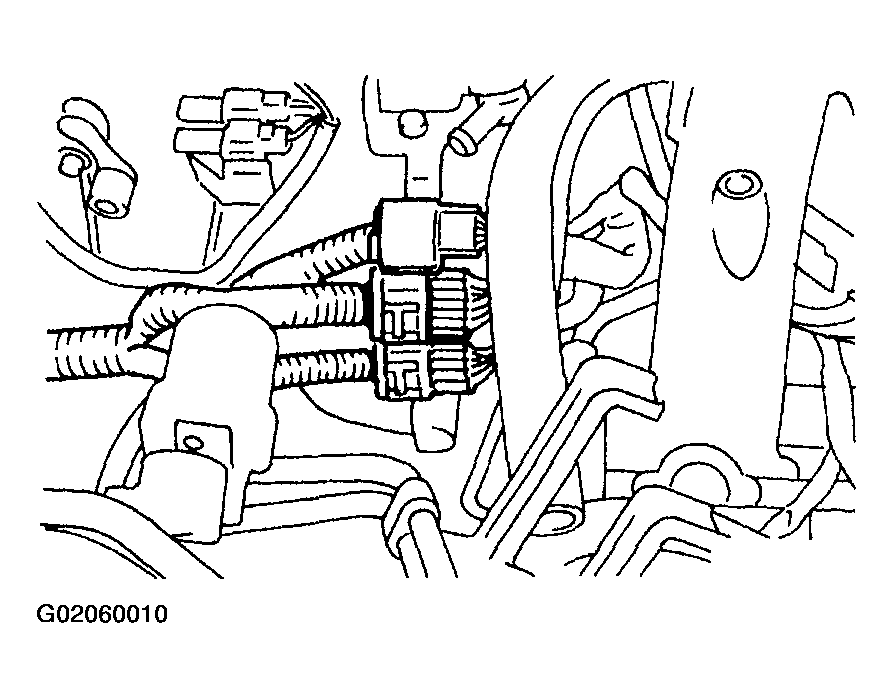

      Fig 25: Connecting Transmission Harness Connectors
      G02060010
    2. Transmission ground terminal
    3. Front oxygen sensor connector

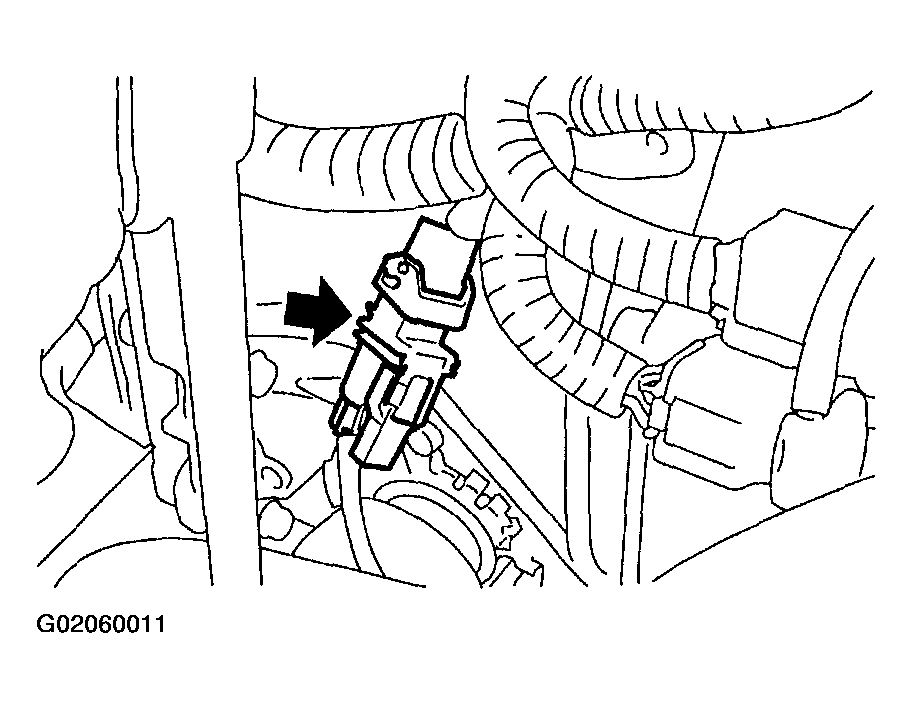

      Fig 26: Connecting Front Oxygen Sensor Connector
      G02060011
  18. Install starter.
    1. Install starter onto transmission case, and connect connectors and terminals.
    2. Tighten bolt and nut which install starter onto transmission.
    1. Tightening torque:  50 N.m (5.1 kgf-m, 36.9 ft-lb)

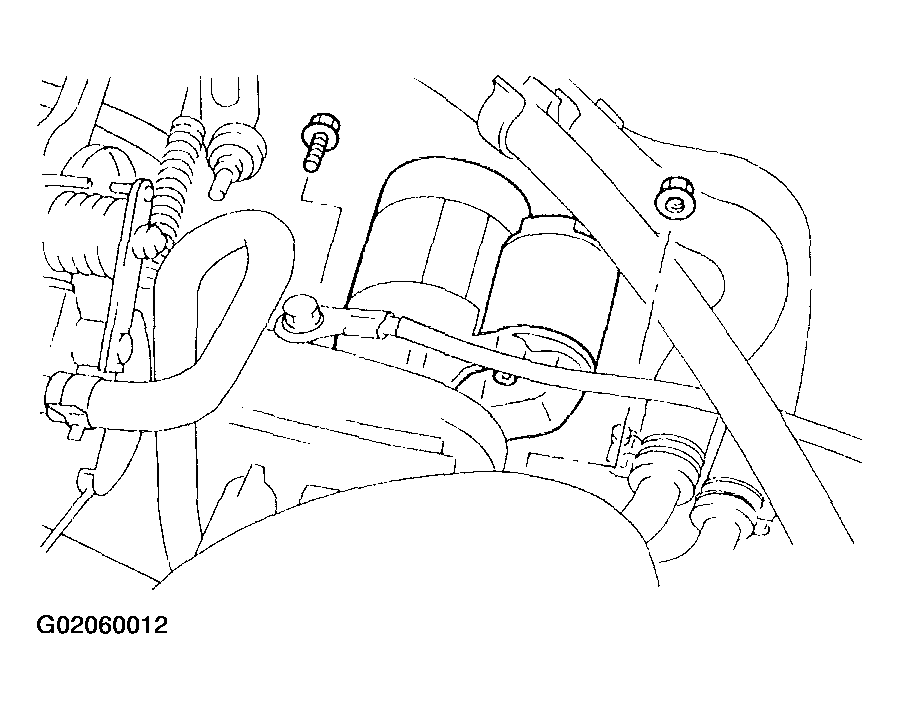

    Fig 27: Installing Starter
    G02060012
  19. Install air cleaner case stay.

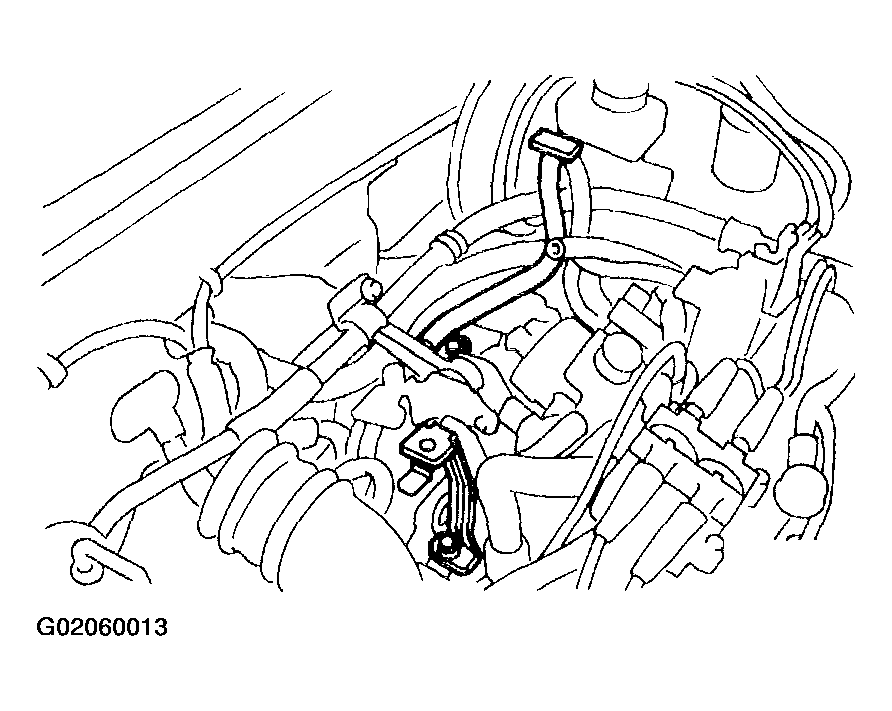

    Fig 28: Installing Air Cleaner Case Stay
    G02060013
  20. Install air intake duct and air cleaner case. See AIR CLEANER CASE .
    Fig 29: Identifying Air Intake Duct & Air Cleaner Case
    G02061812
  21. Connect battery ground terminal.
  22. Fill ATF up to the middle of the "COLD" side on level gauge by using the gauge hole.
    1. Recommended fluid:
      1. Dexron IIE or Dexron III type automatic transmission fluid
    2. Fluid capacity:
      1. 2200 cc:  8.4 - 8.7 l (8.9 - 9.2 US qt, 7.4 - 7.7 Imp qt)
      2. 2500 cc:  9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 - 8.4 Imp qt)
  23. Check selector lever operation. See CAUTION  .
  24. Take off vehicle from lift arms.
  25. Run the vehicle until ATF temperature rises from 60 to 80°C (140 to 176°F) and check the ATF level of the "HOT" side on level gauge.
  26. Check the vehicle on road tester. See ROAD TEST  .
