Control Valve Body: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the select lever in "N" position.
Install the control valve and ground earth connectors.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

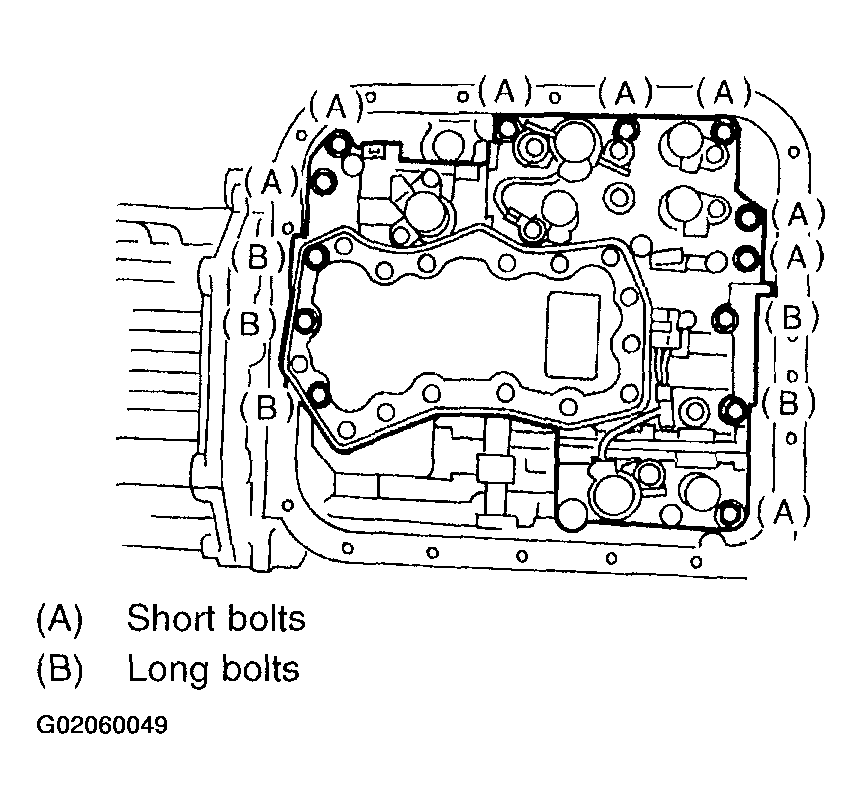

Fig 1: Identifying Long & Short Bolt Locations
Connect all connector.

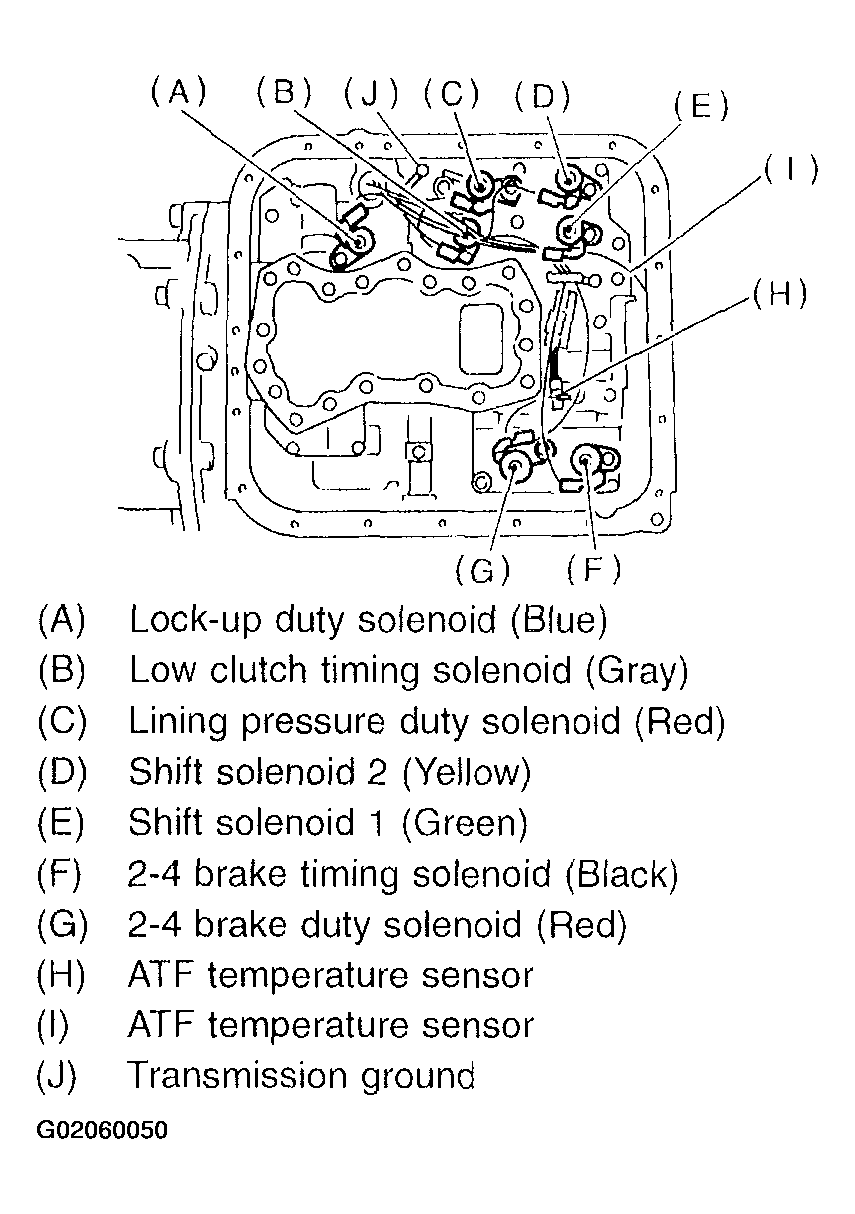

Fig 2: Identifying Duty Solenoids & ATF Temperature Sensor Connectors
Attach the magnet at the specified position.

Fig 3: Installing Magnet In Oil Pan
Apply proper amount of liquid gasket to the entire oil pan mating surface (THREE BOND Part No. 1217B).

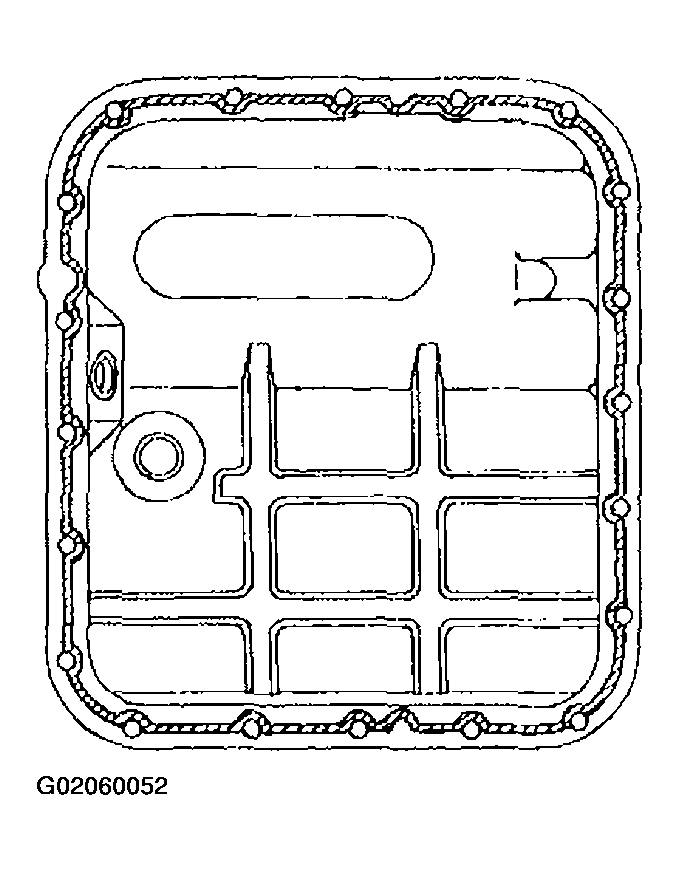

Fig 4: Applying Liquid Gasket To Oil Pan Mating Surface
Install the oil pan.
- Tightening torque: 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe.
Recommended fluid:
1. Dexron IIE or Dexron III type automatic transmission fluid
Fluid capacity:
1. 9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 - 8.4 Imp qt)
Check the level of the ATF.
