Control Valve Body: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean transmission exterior.
  2. Drain ATF completely.
    NOTE: Tighten ATF drain plug after draining ATF.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

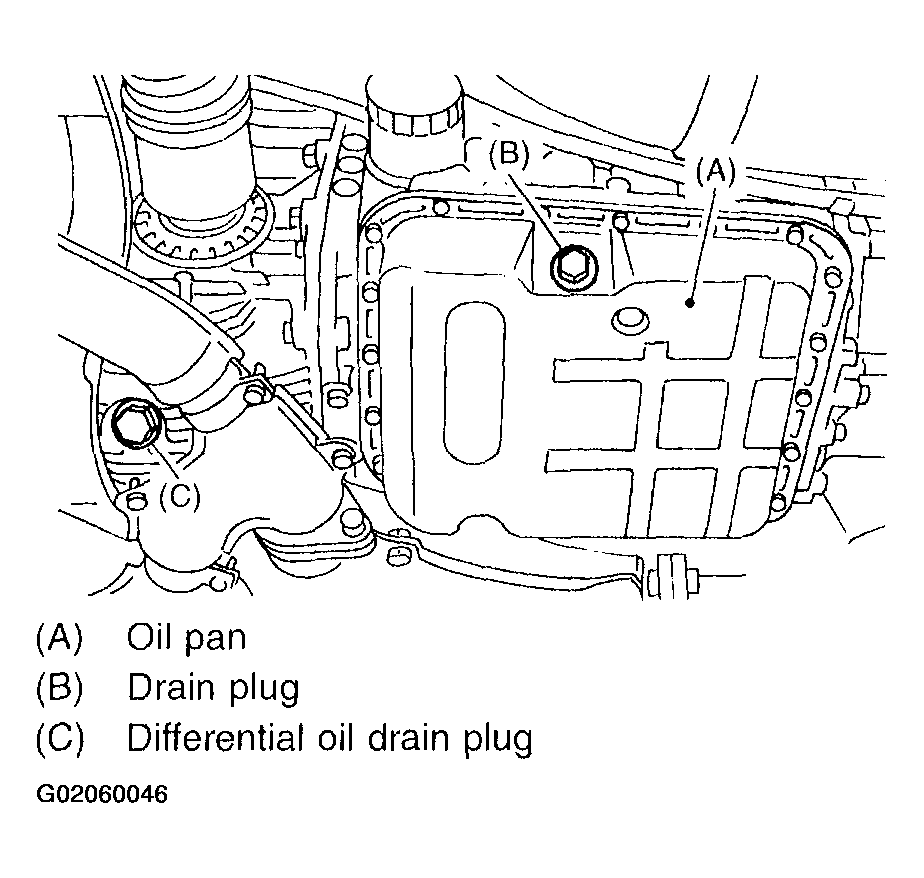

    Fig 1: Identifying ATF Drain Plug
    G02060046
  3. Remove the oil pan.
    NOTE:
    • Remove and clean the magnet.
    • Remove the old gasket on the oil pan and transmission case completely.
  4. Disconnect duty solenoids and ATF temperature sensor connectors. Remove connectors from clip and disconnect connectors at 9 places.

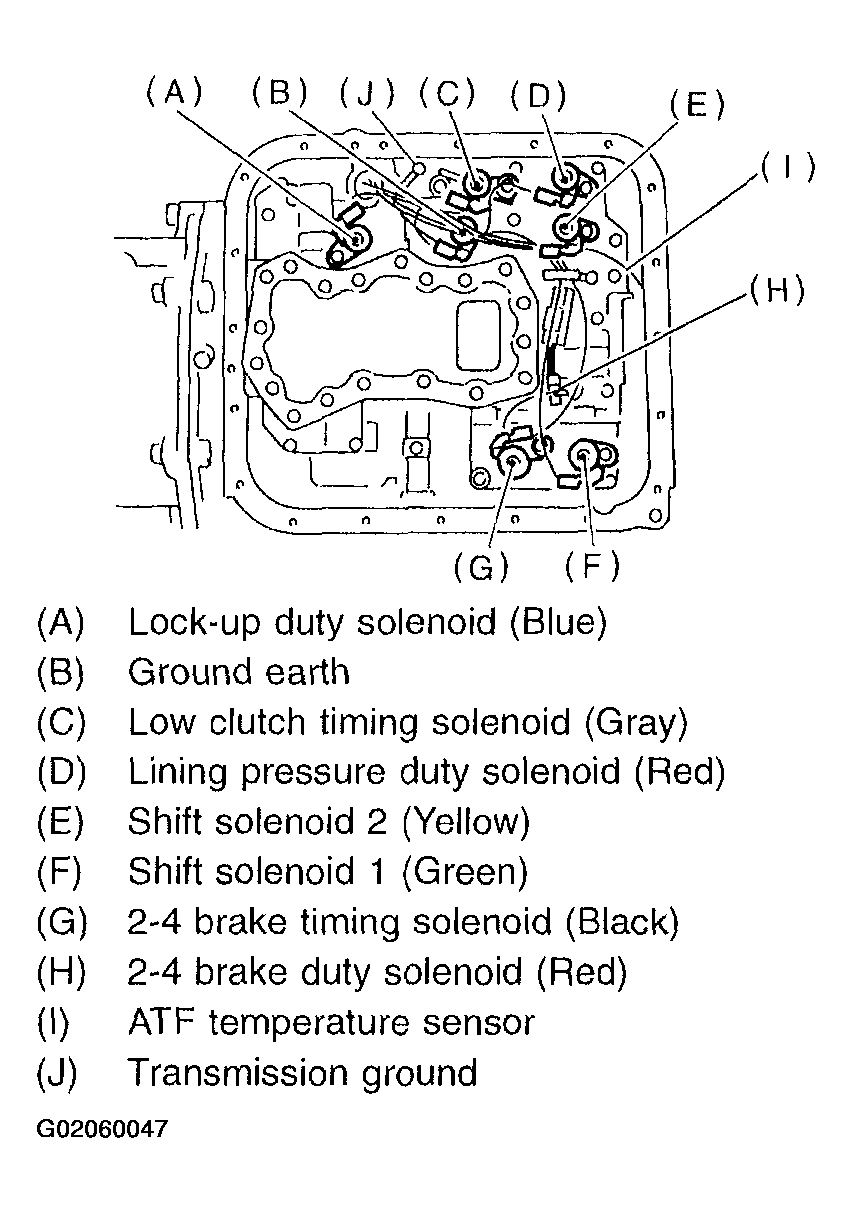

    Fig 2: Identifying Duty Solenoids & ATF Temperature Sensor Connectors
    G02060047
  5. Remove the control valve.
    CAUTION: When removing control valve body, be careful not to interfere with transfer duty solenoid wiring.

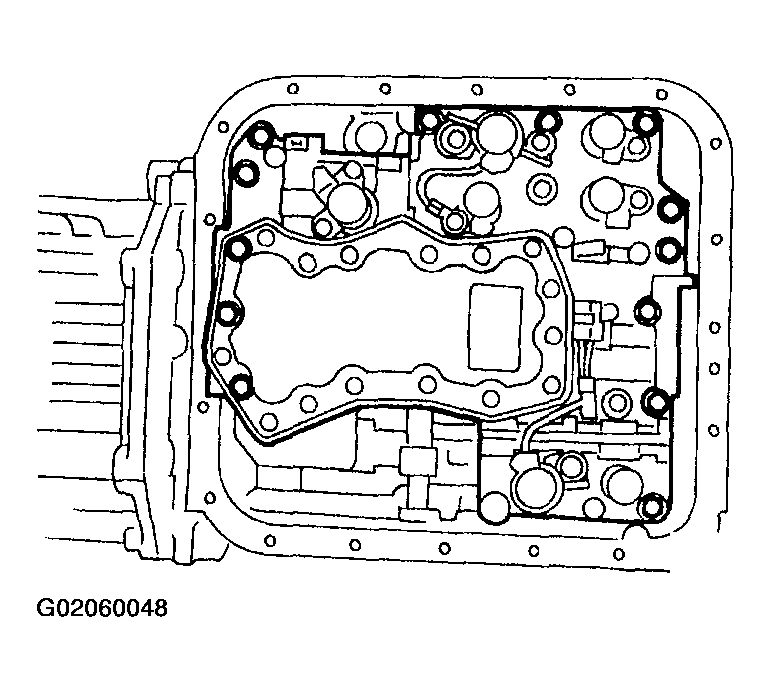

    Fig 3: Removing Control Valve
    G02060048
