Inhibitor Switch: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install inhibitor switch to transmission case.

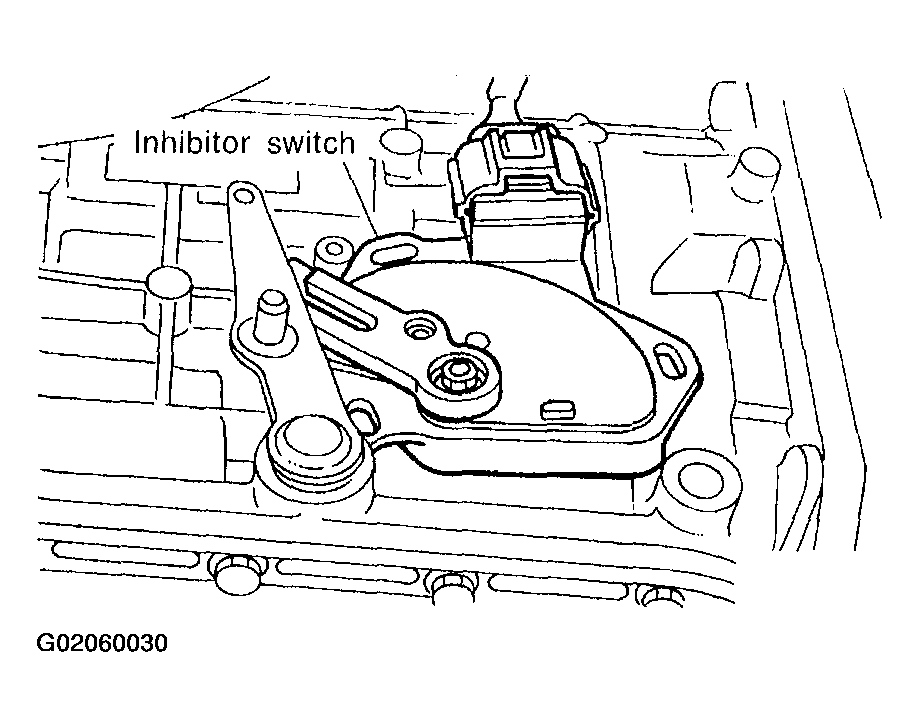

    Fig 1: Installing Inhibitor Switch
    G02060030
  2. Move range select lever to neutral position.
  3. Using ST, tighten bolts of inhibitor switch. See ADJUSTMENT  .
    1. ST 499267300 STOPPER PIN

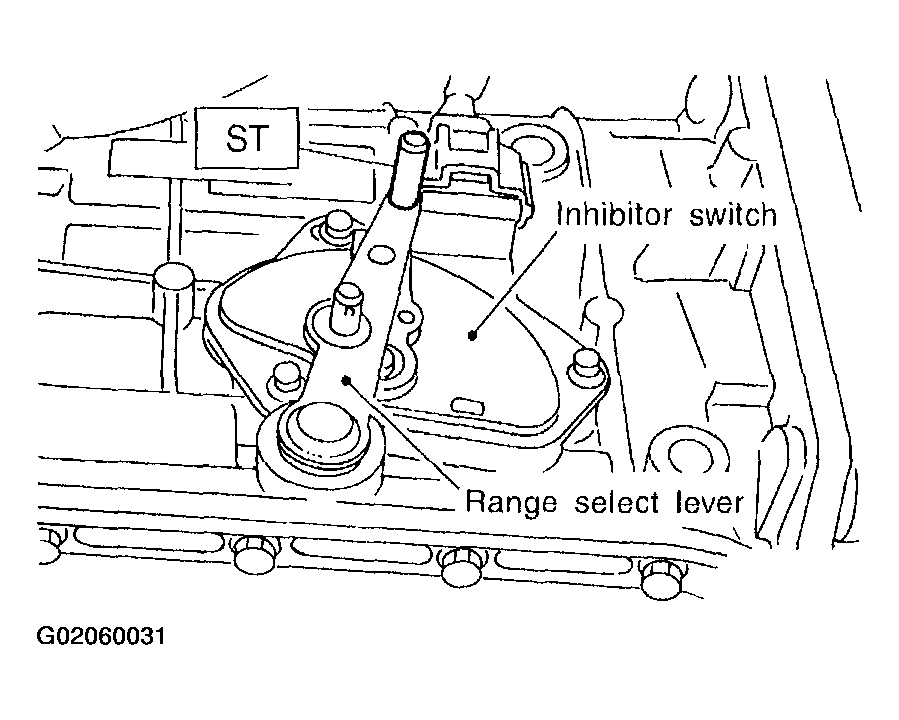

    Fig 2: Moving Range Select Lever To Neutral Position
    G02060031
  4. Install select cable to range select lever.
  5. Install plate assembly to transmission.

    Tightening torque:

    1. T:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

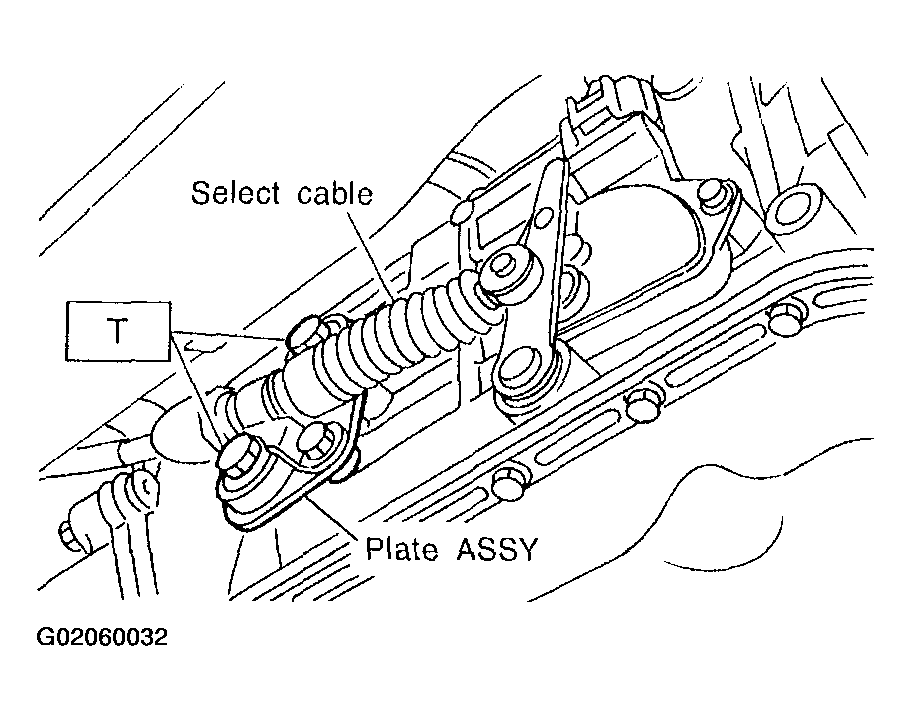

    Fig 3: Installing Plate Assembly To Transmission
    G02060032
  6. Install snap pin to range select lever.

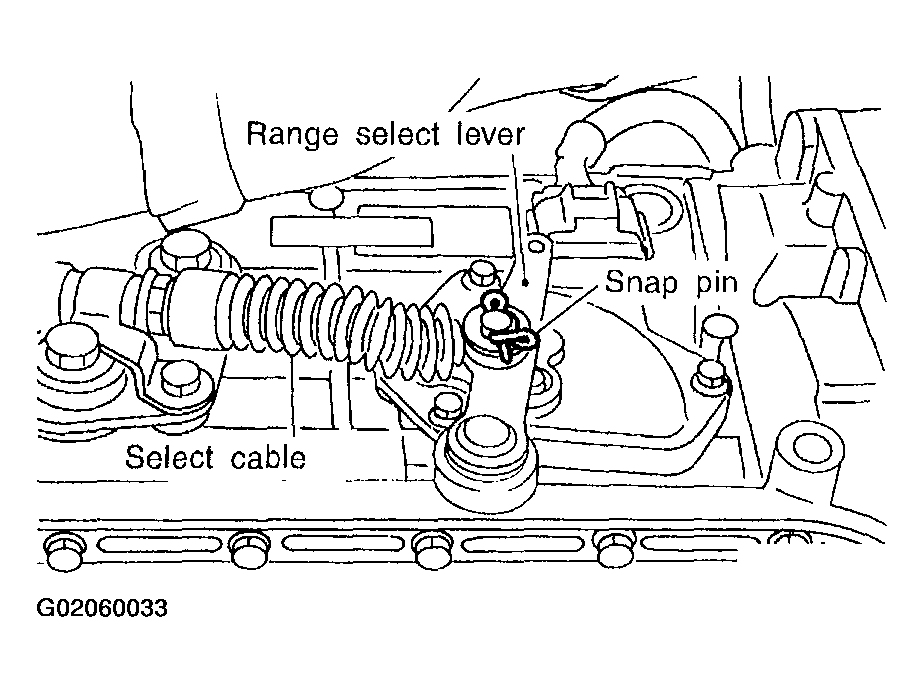

    Fig 4: Installing Snap Pin To Range Select Lever
    G02060033
  7. Install front exhaust pipe and center exhaust pipe. See EXHAUST SYSTEM .
  8. Connect inhibitor switch connector.

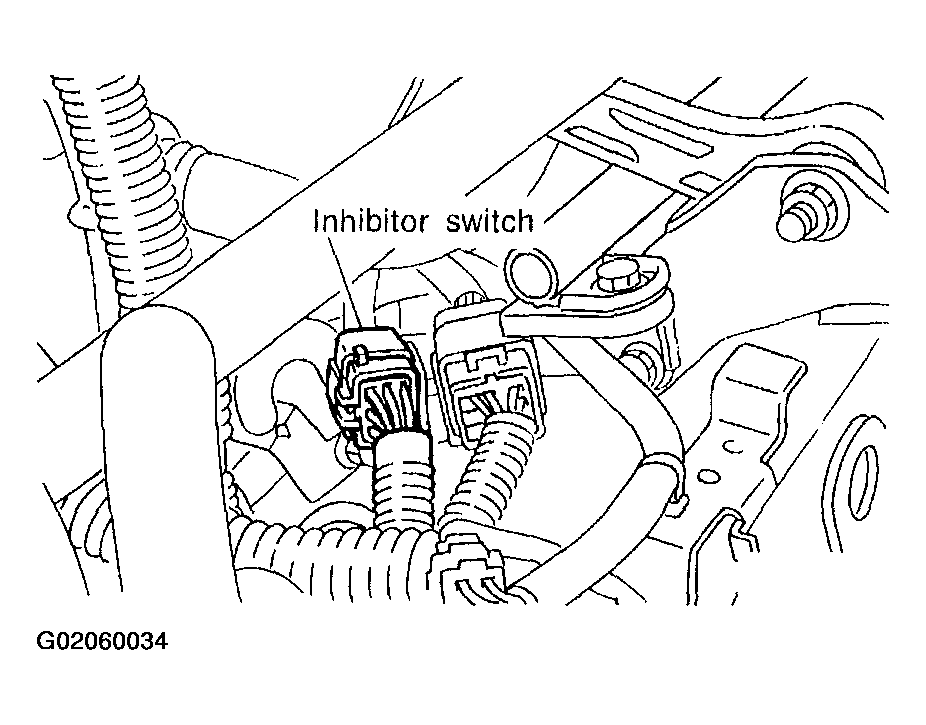

    Fig 5: Connecting Inhibitor Switch Connector
    G02060034
  9. Install air cleaner case and air intake duct. See AIR CLEANER CASE .

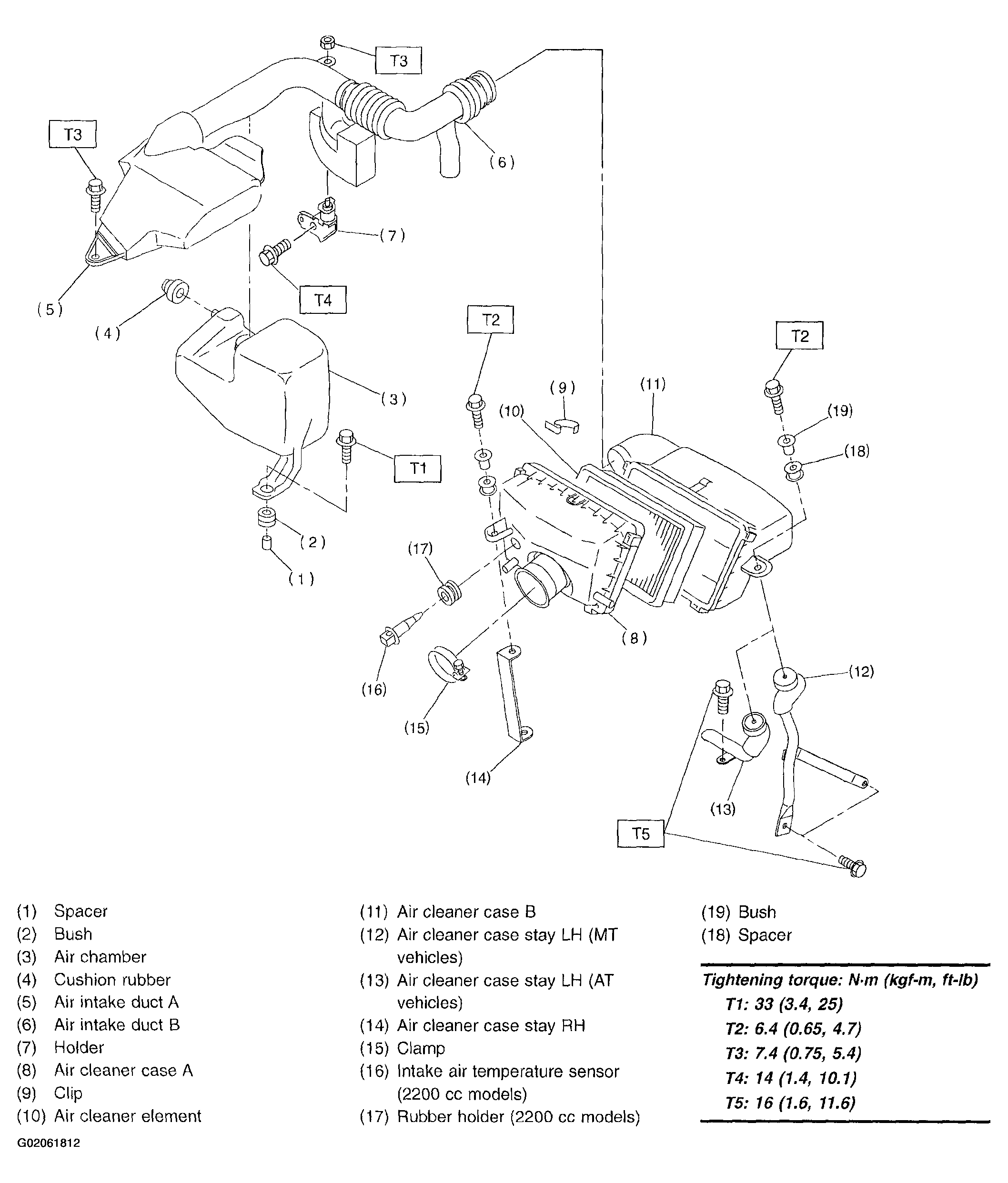

    Fig 6: Identifying Air Intake Duct & Air Cleaner Case
    G02061812
