Test Methods
WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

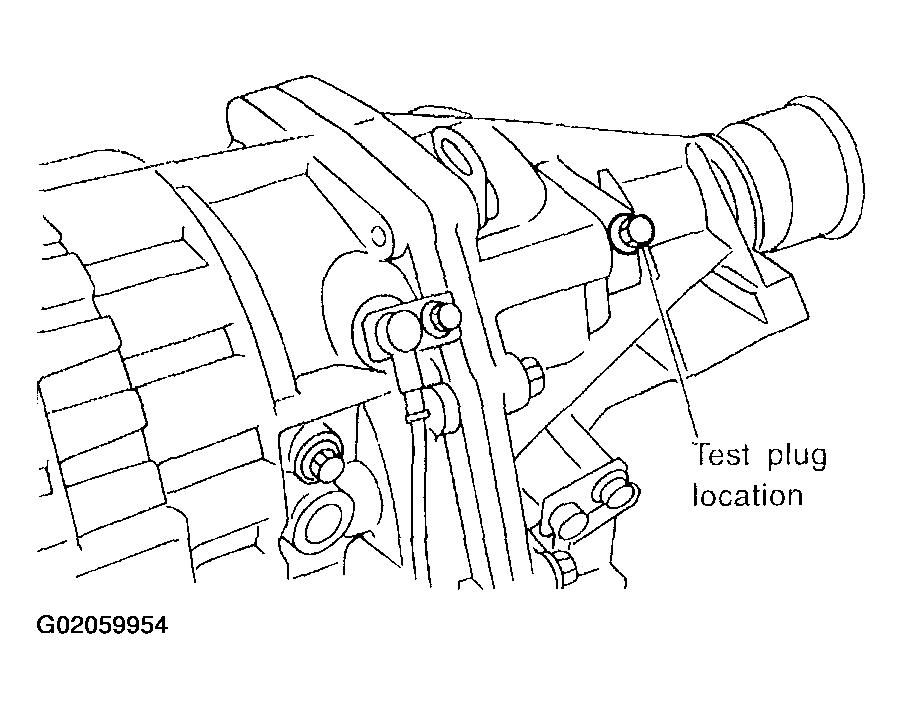

Check transfer clutch pressure in accordance with the following chart in the same manner as with line pressure.
- ST 499897700 OIL PRESSURE ADAPTER SET
- ST 498575400 OIL PRESSURE GAUGE ASSY
- AWD mode: "D" range
- FWD mode: "P" range, engine speed 2,000 rpm
CAUTION:
Before setting in FWD mode, install spare fuse on FWD mode switch.
