Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery ground terminal.

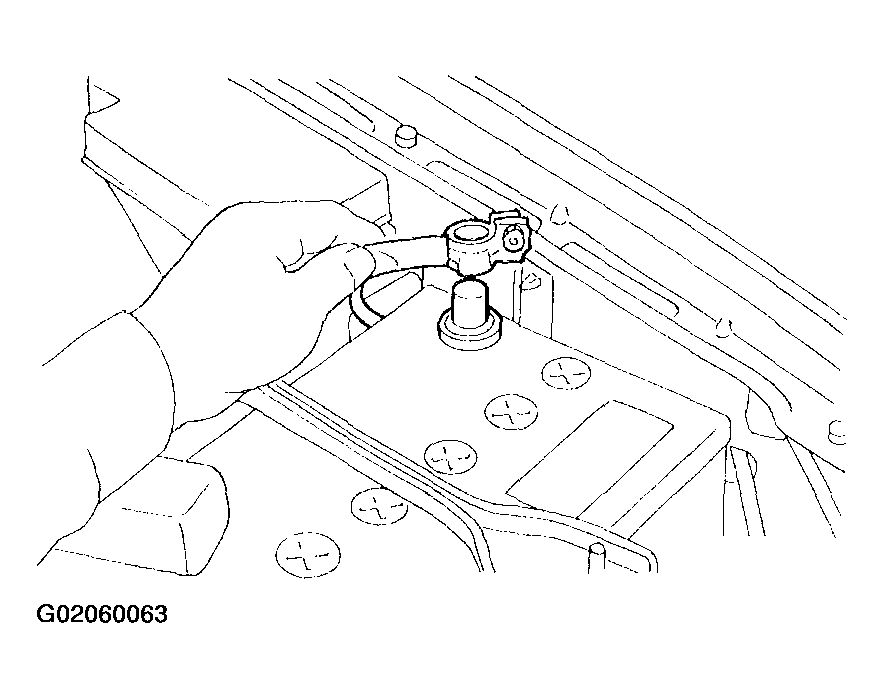

Fig 1: Disconnecting Battery Ground Terminal
Remove lower cover and then disconnect connector.

Fig 2: Removing Lower Cover
Disconnect connectors form TCM.
Remove transmission control module.

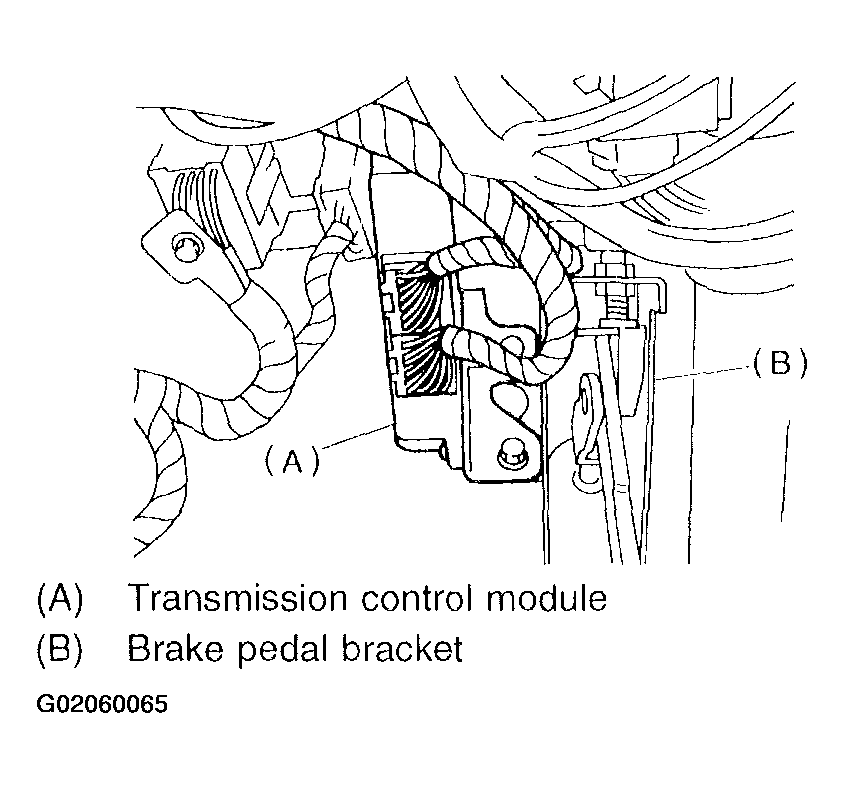

Fig 3: Removing Transmission Control Module
