Pitching Stopper

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the pitching stopper.
Tightening torque:
1. T1: 49 N.m (5.0 kgf-m, 36.2 ft-lb)
2. T2: 57 N.m (5.8 kgf-m, 42 ft-lb)

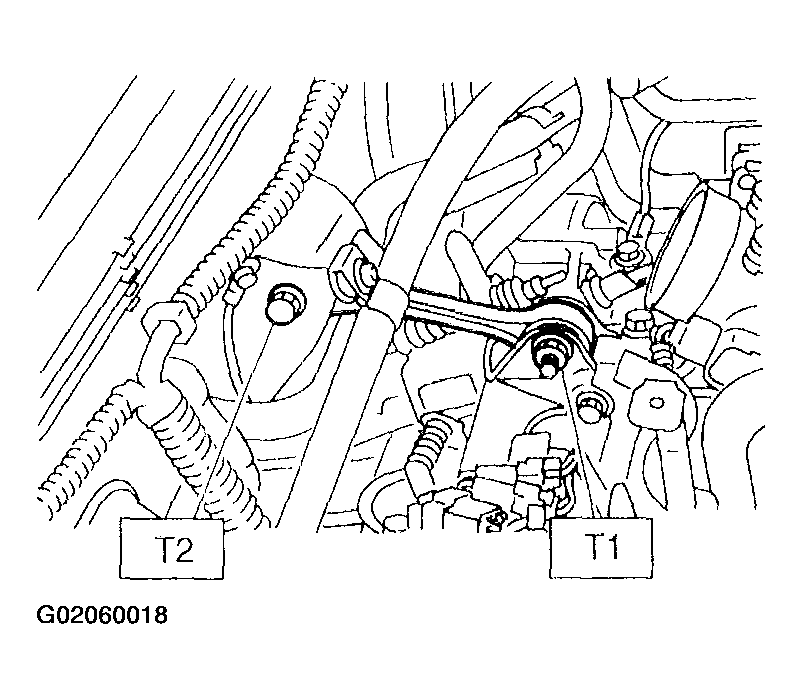

Fig 1: Installing Pitching Stopper
Install the air intake duct and air cleaner case. Install in reverse order of removal. See AIR CLEANER CASE .

Fig 2: Identifying Air Intake Duct & Air Cleaner Case
