Extension Assembly

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Thrust washer (52 x 61 x t) to ball bearing side clearance:

0.05-0.30 mm (0.0020-0.0118 in)

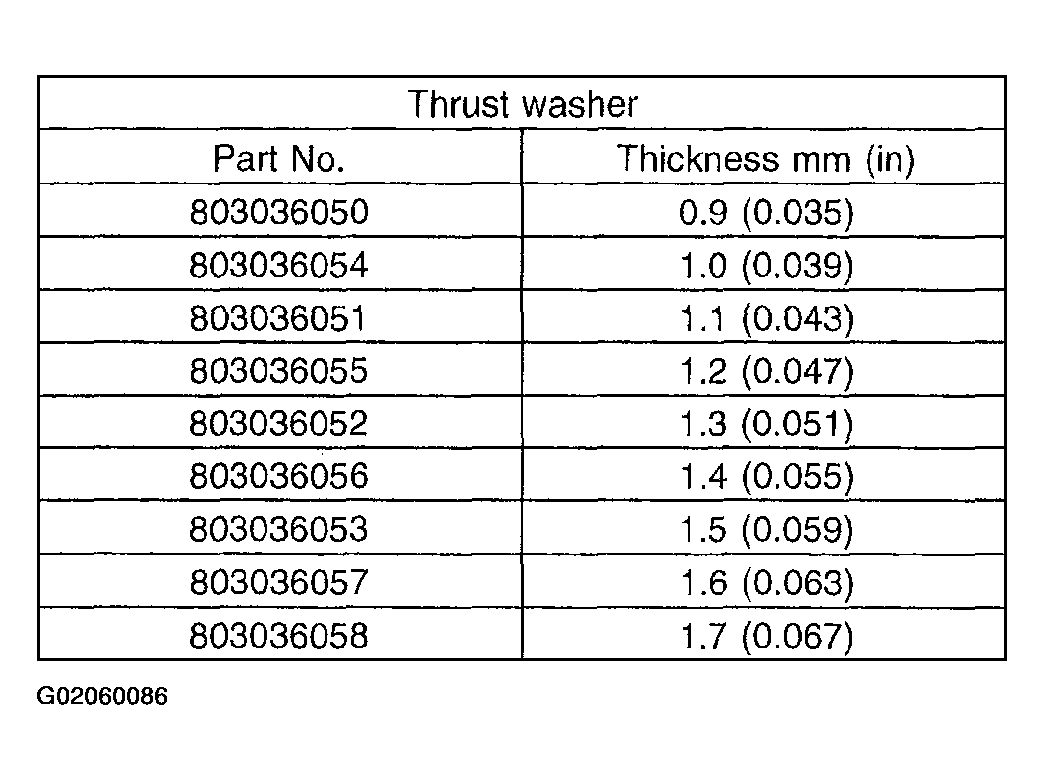

Fig 1: Thrust Washer (52 X 61 X T) Adjustment Chart

Thrust washer to center differential side clearance

0.15-0.35 mm (0.0059-0.0138 in)

Fig 2: Thrust Washer Adjustment Chart
