Front Differential

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Bevel gear to pinion backlash:

0.13-0.18 mm (0.0051-0.0071 in)

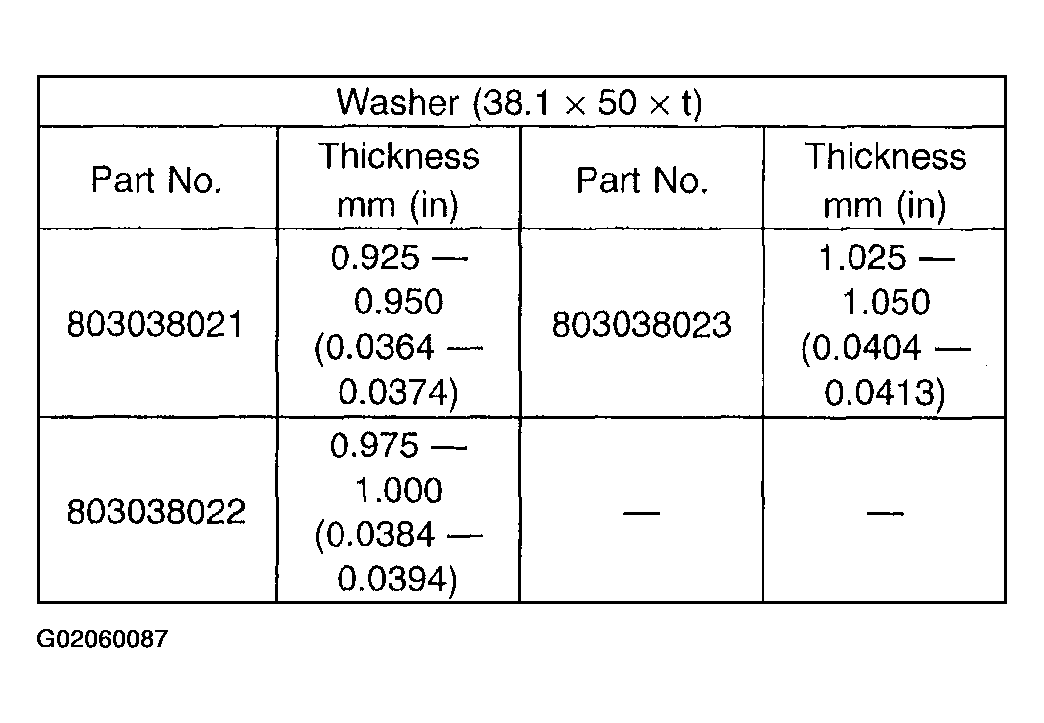

Fig 1: Washer (38.1 X 50 X T) Adjustment Chart

Pinion shaft to axle drive shaft clearance:

0-0.25 mm (0-0.0098 in)

Fig 2: Snap Ring (Outer 28) Adjustment Chart
