Section 42 (Exhaust System): Muffler: Installation

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION: Replace gasket with a new one.

Tightening torque: 48 N.m (4.9 kgf-m, 35.4 ft-lb)

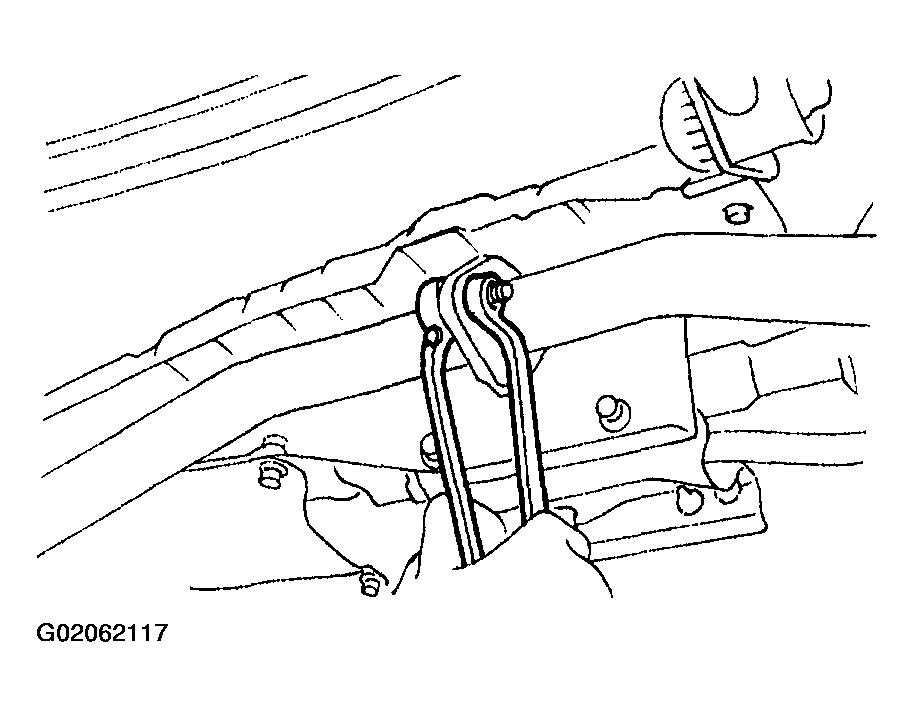

Fig 1: Installing Muffler To Rear Exhaust Pipe
