Keyless Entry Module: Service and Repair

Removal and Installation

1. KEYLESS ENTRY CONTROL MODULE
1. Disconnect battery ground cable.




2. Remove instrument panel lower cover and knee panel.

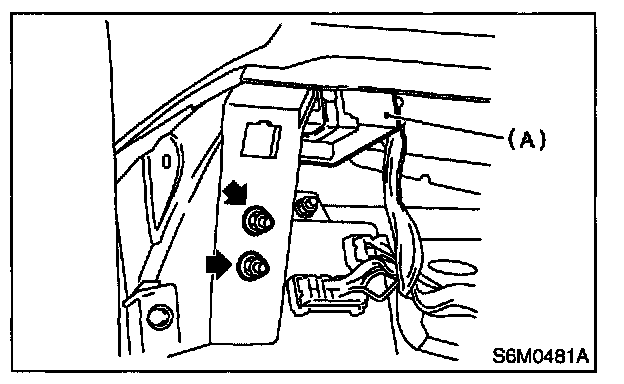

3. Remove the two nuts, then remove keyless entry control module (A) while disconnecting connector.
4. Install in the reverse order of removal.
