Service Specifications

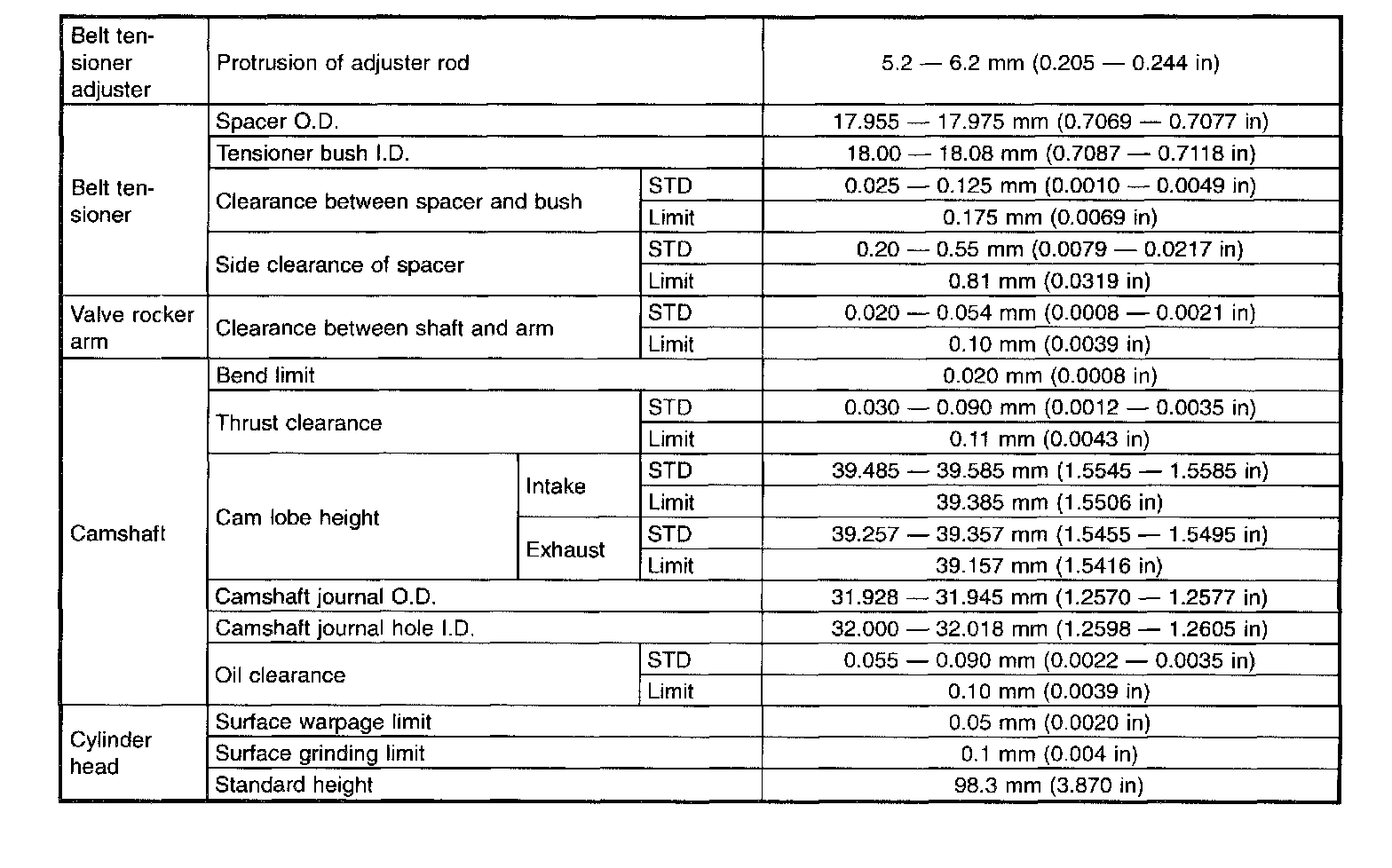

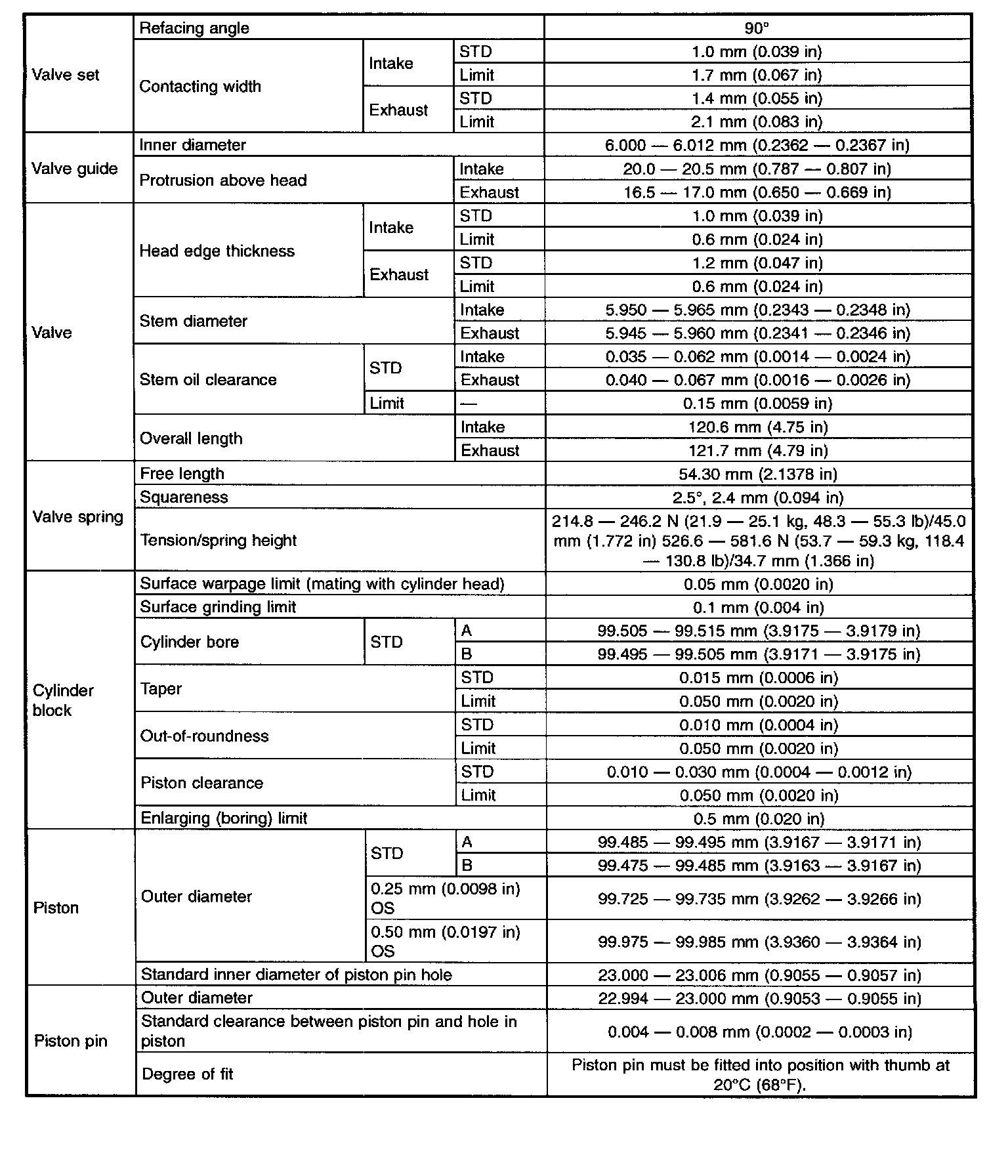

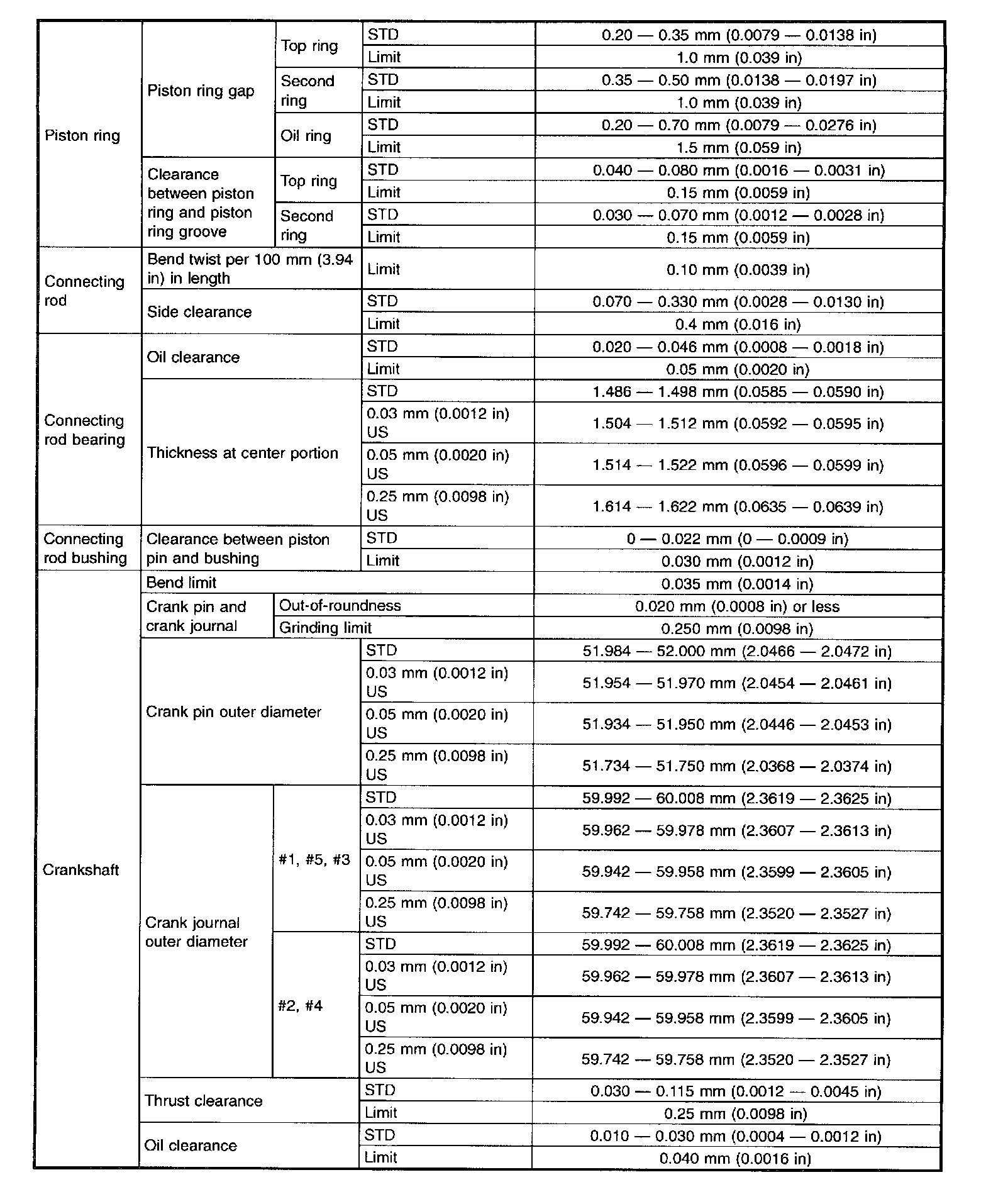

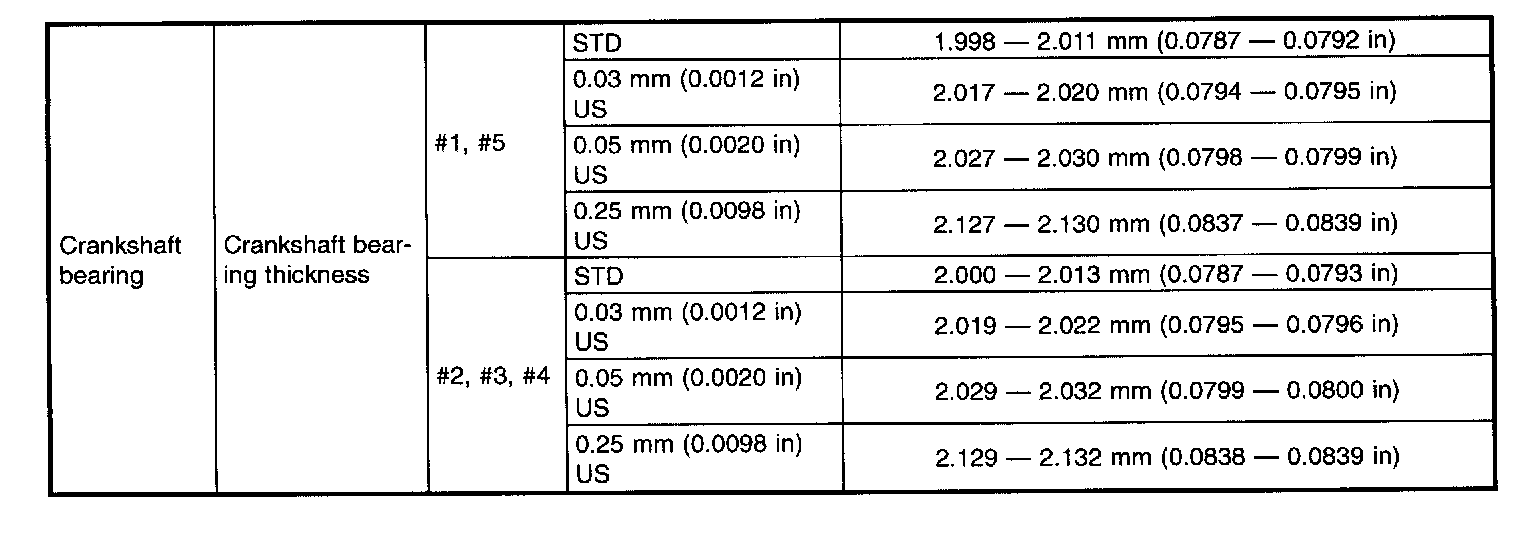

SERVICE DATA





1 of 4





2 of 4





3 of 4





4 of 4

NOTE: STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize
