Diagnostic Chart

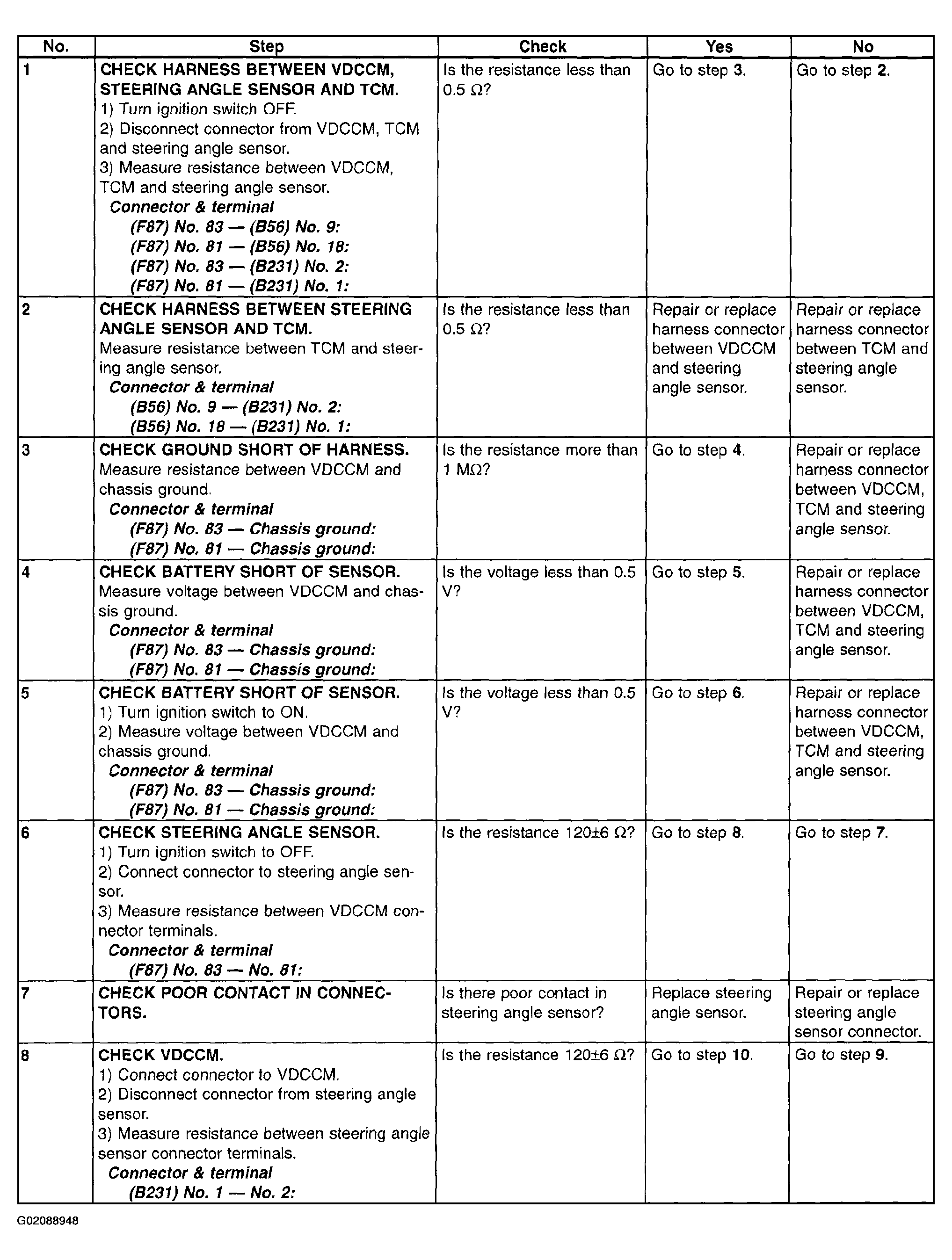

Fig 1: Diagnostic Chart - Trouble Code 47 - With Diagnostic Connector (1 Of 2)
G02088948

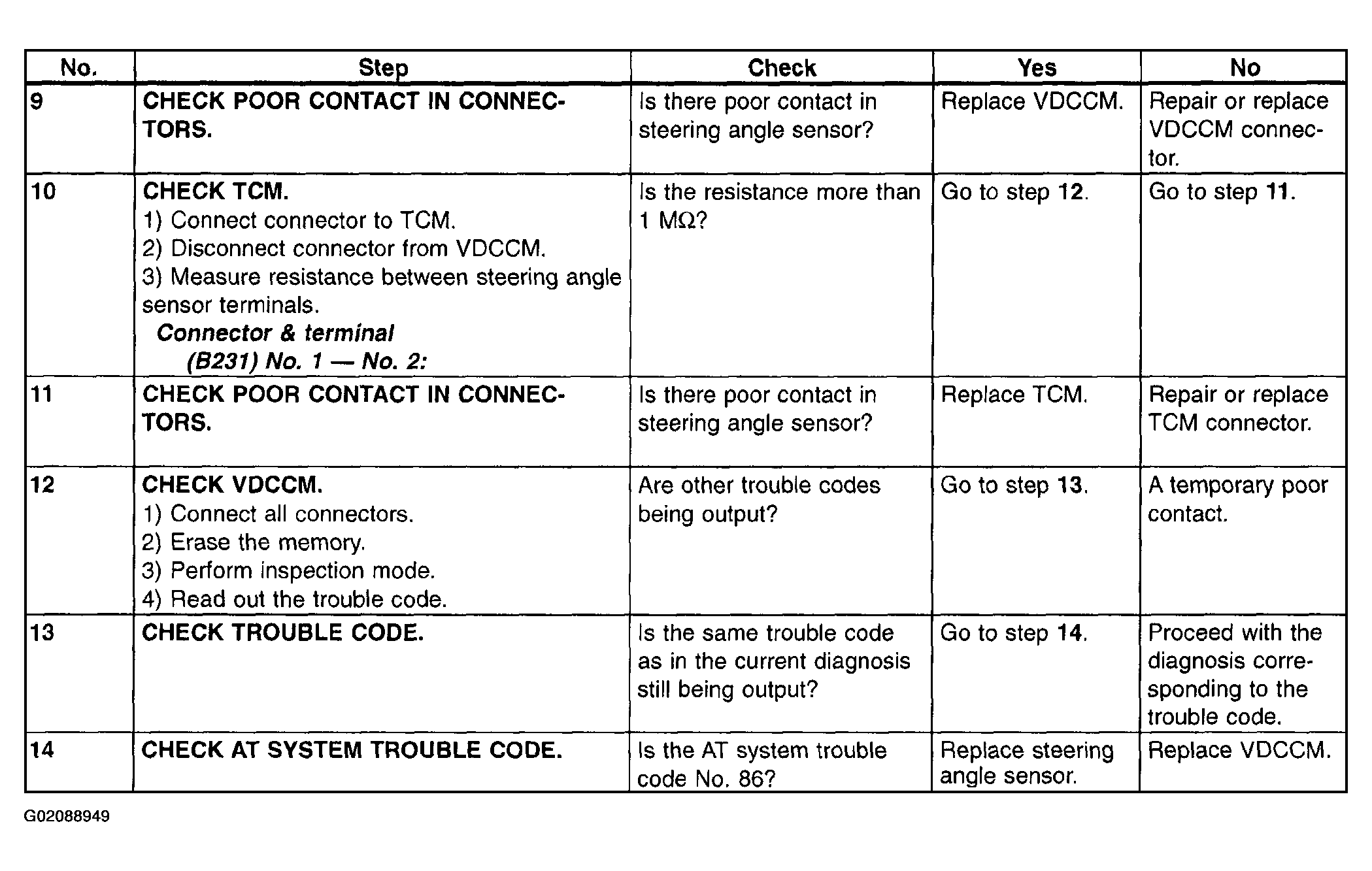

Fig 2: Diagnostic Chart - Trouble Code 47 - With Diagnostic Connector (2 Of 2)
G02088949
