Diagnostic Chart

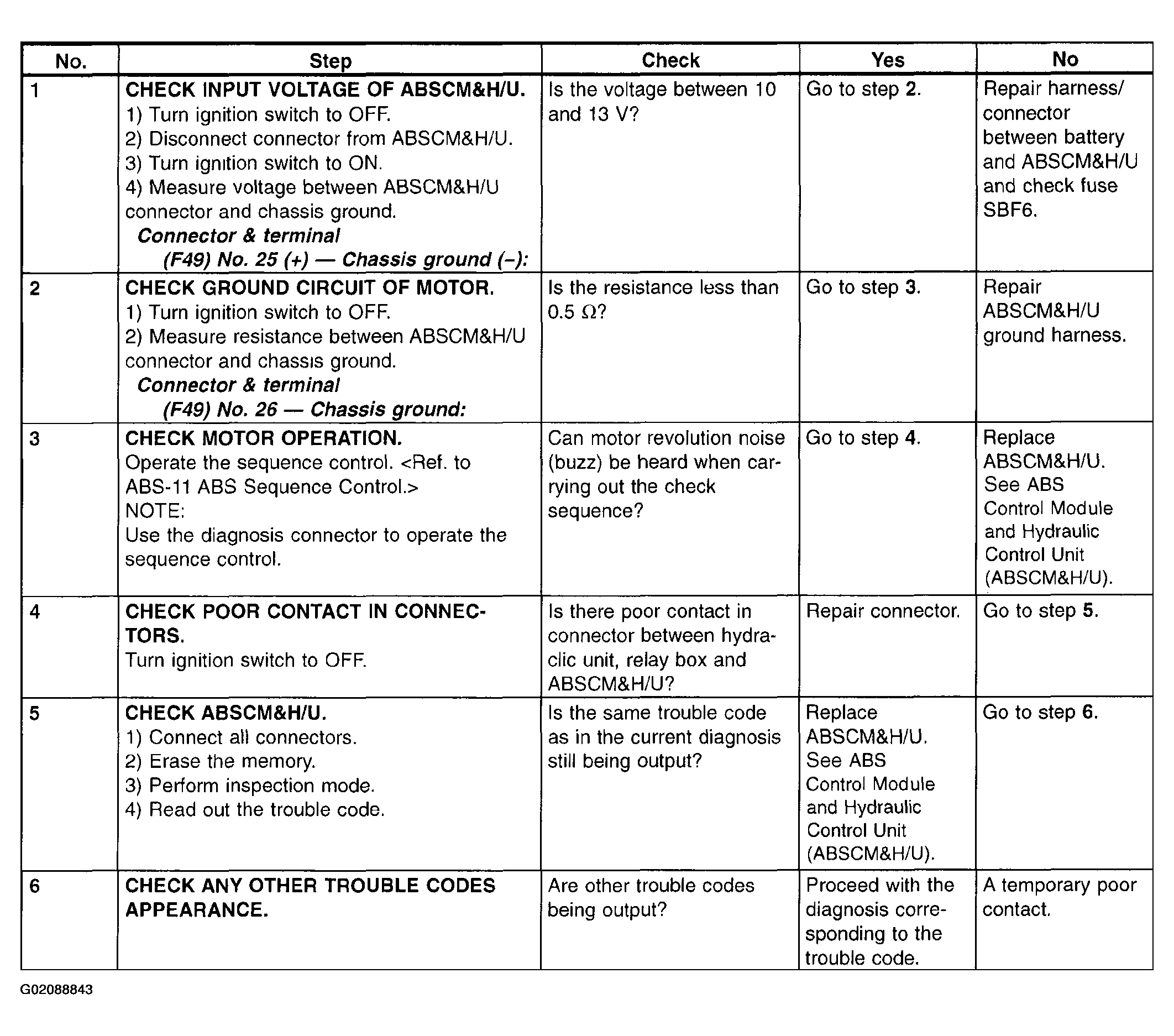

Fig 1: Trouble Code 52 - Open Circuit In Motor Relay Circuit - Diagnostic Chart

G02088843
