Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (Diagnostics) >> Diagnostics Chart With Diagnosis Connector >> Code 41: Abnormal VDC Control Module >> Diagnostic Chart

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Diagnostic Chart

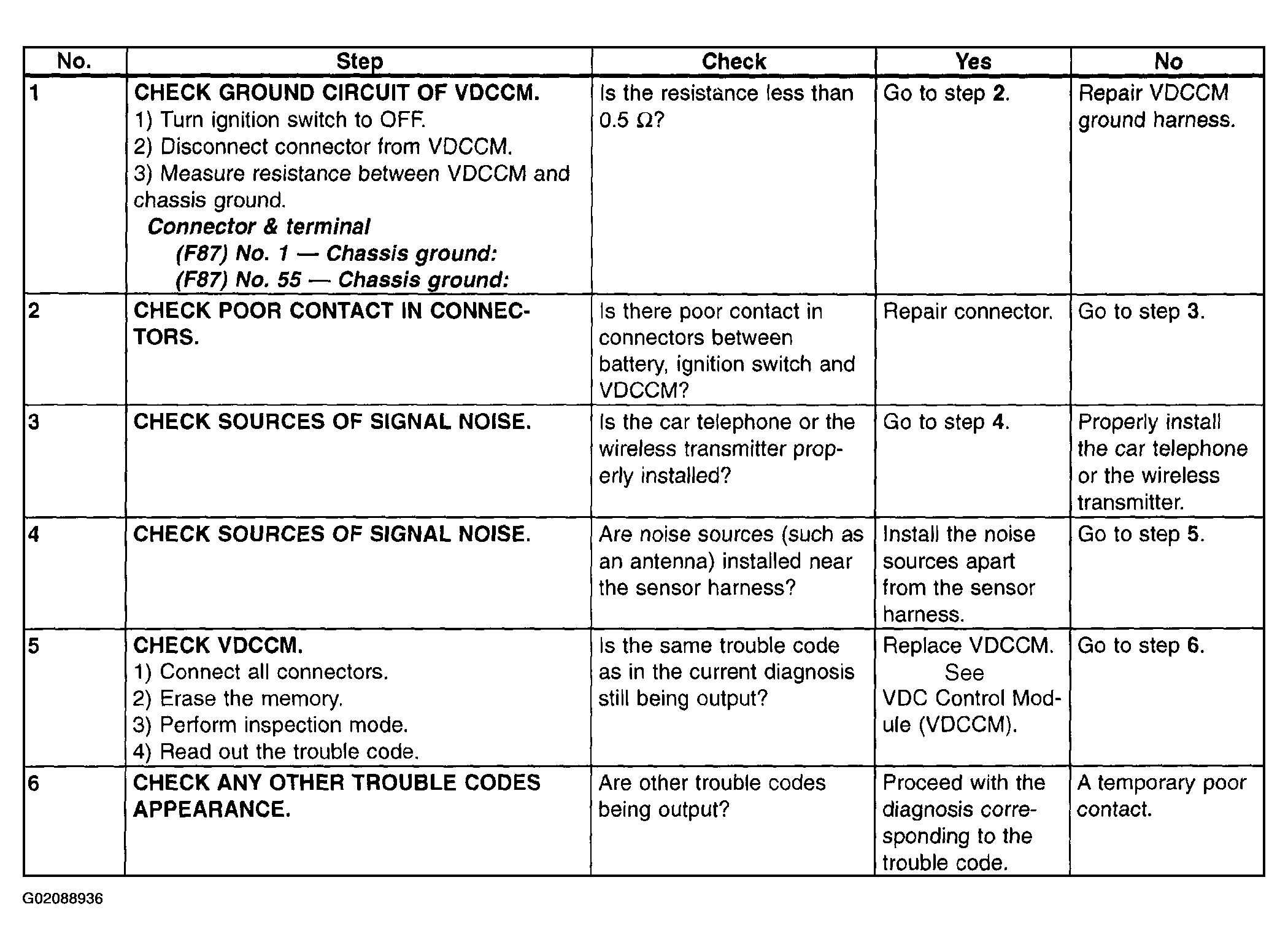

Fig 1: Diagnostic Chart - Trouble Code 41 - With Diagnostic Connector

G02088936
